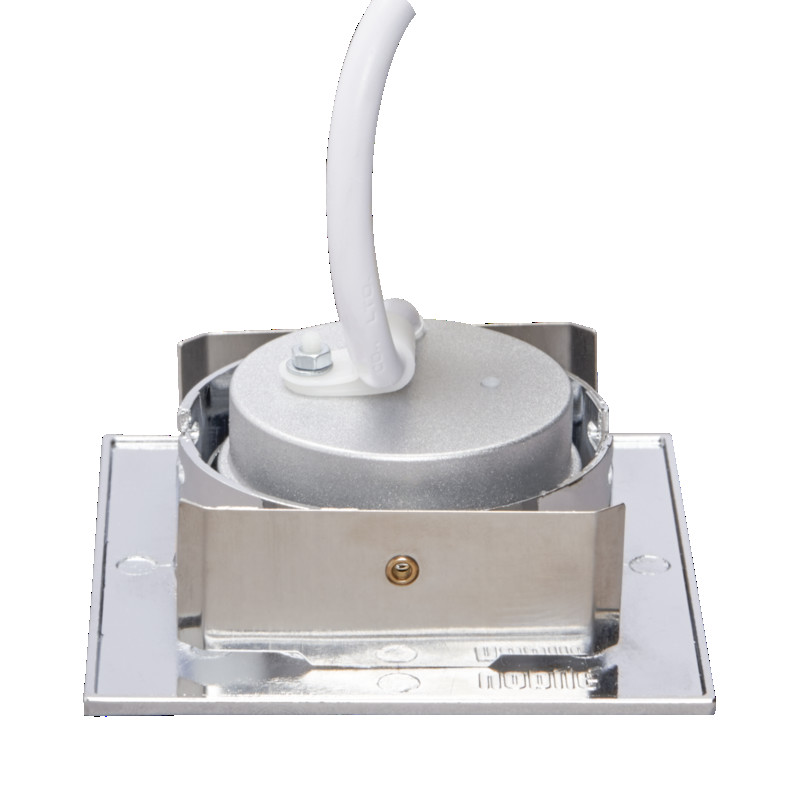

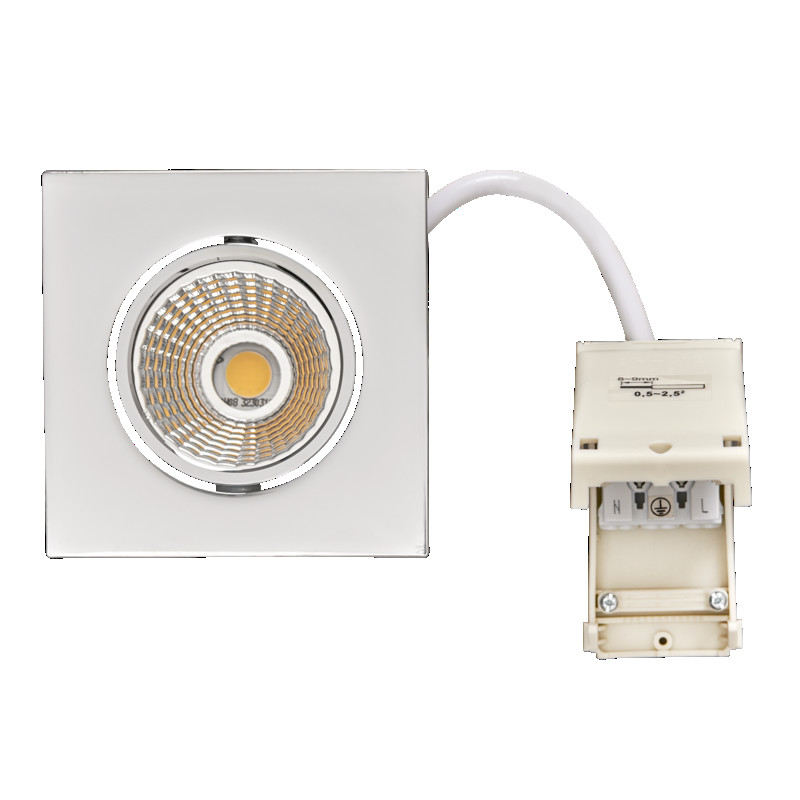

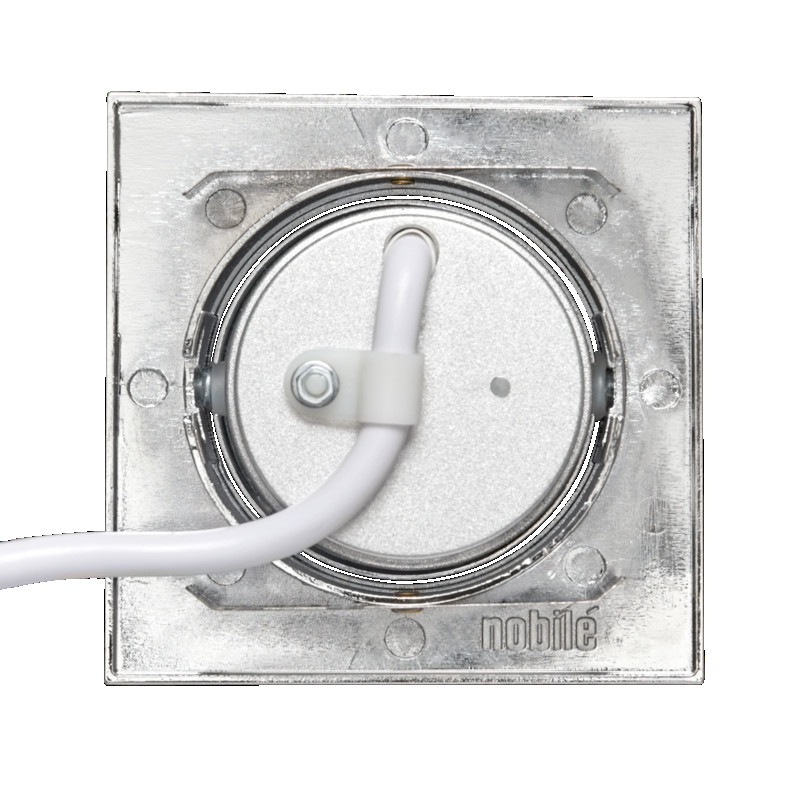

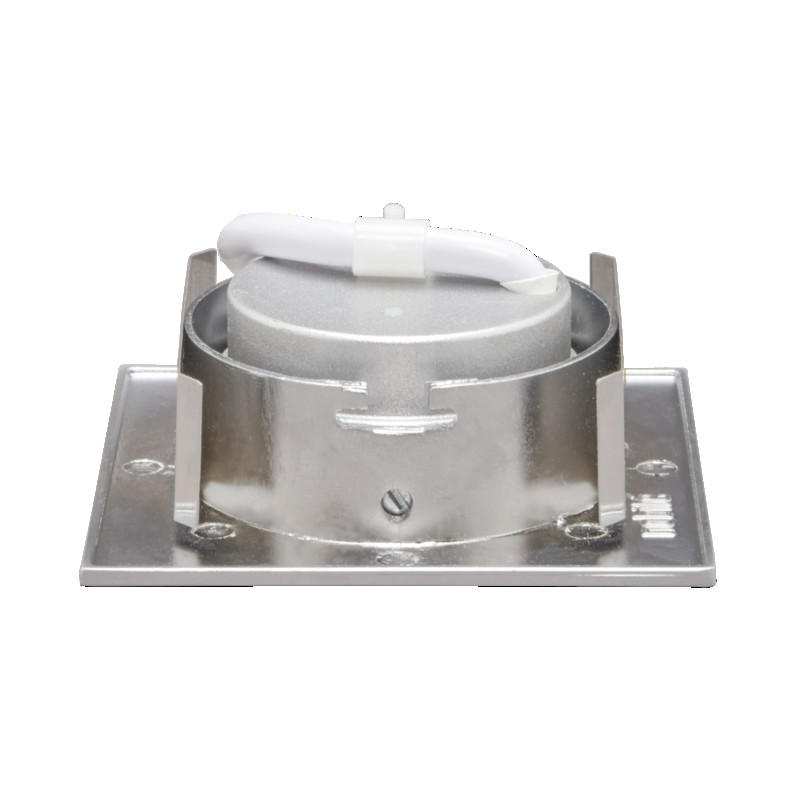

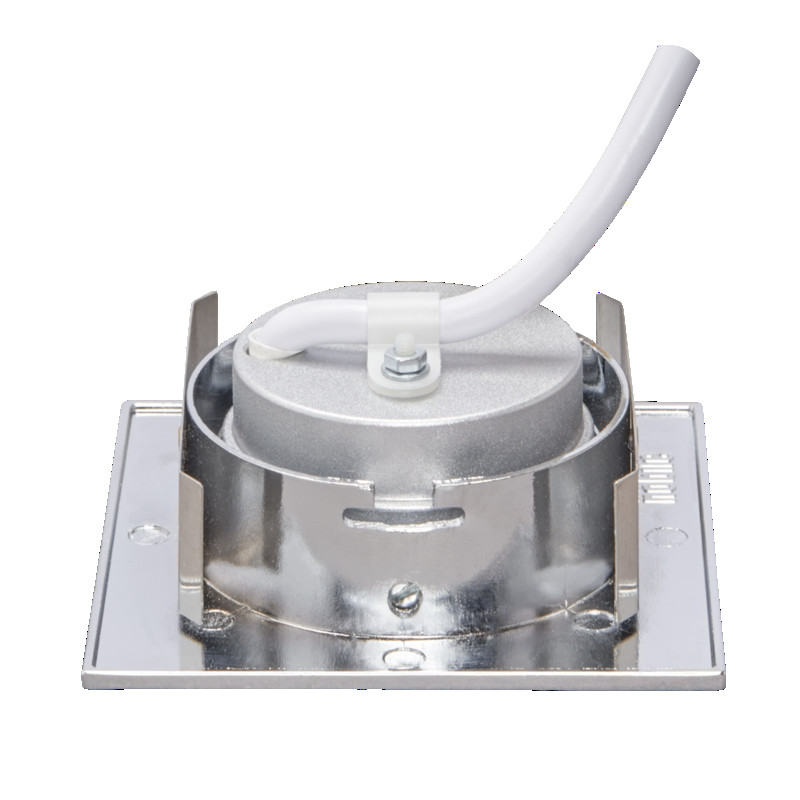

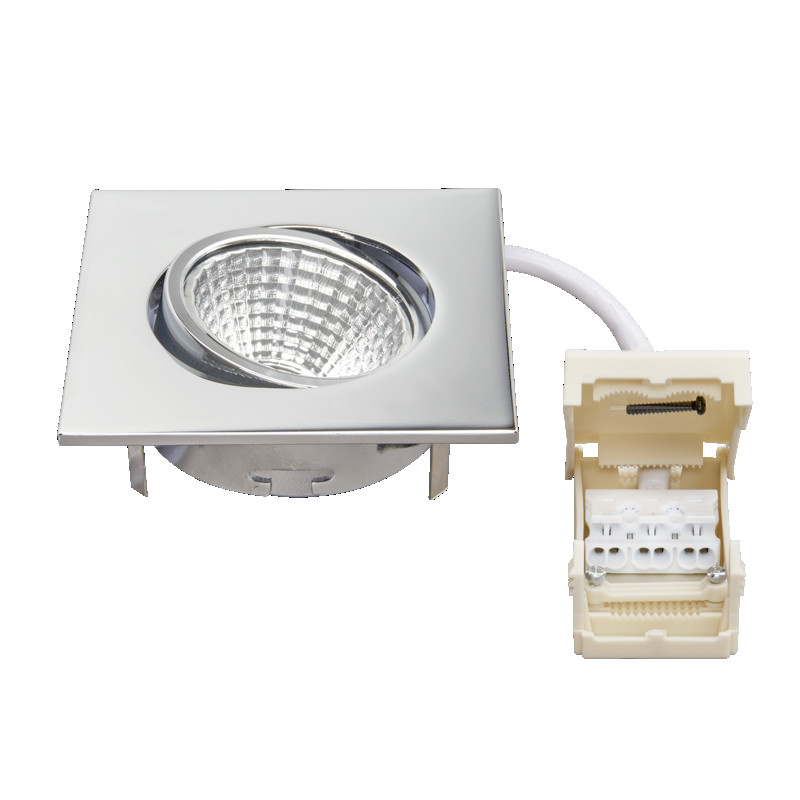

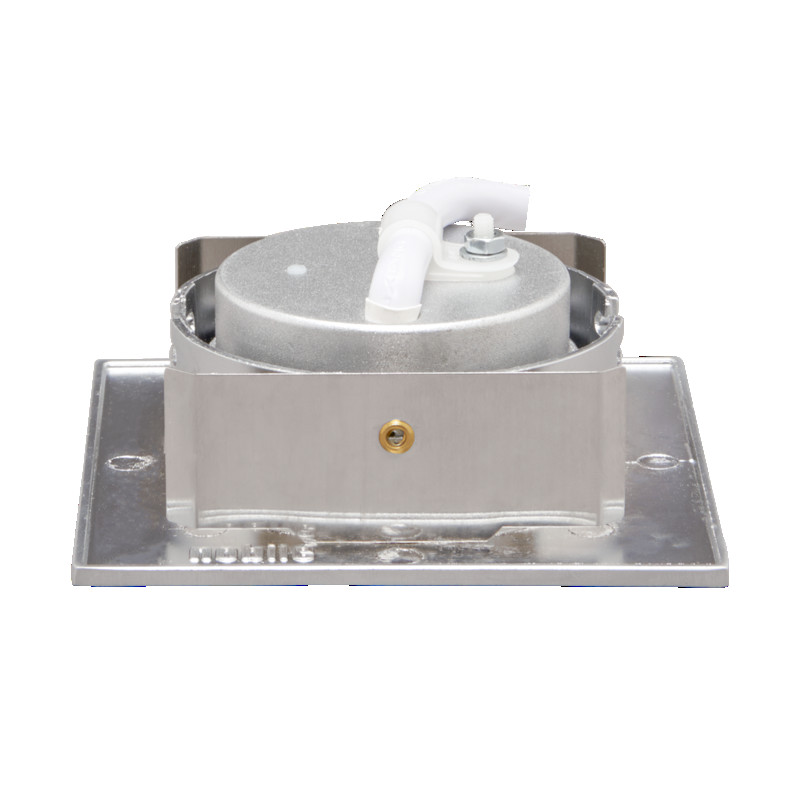

5068Q ECO DOB chrome 6W 830 38° dim C
EAN: 4044538072029
For use in spot and general lighting.
Ideal problem solver for ceilings with low installation depth
Front glass
Reflector coated with high-purity aluminum for efficient and accurate illumination
Aluminum heat sink
The luminaire is only suitable for installation in false ceilings. Installed downlight must not be covered by insulation material. Ensure constant convection.
Material: die-cast aluminium/glass
Surface: powder-coated or galvanized
Suitable for ceiling cut-out: 68 mm
Colour rendering index Ra: >80
Colour distance (MacAdam): 3 SDCM
Life time: 30.000 h (L70 B50)
LED driver: DOB (Driver on Board) integrated, dimmable with trailing edge
Terminal block and through-wiring (L, N, PE)
Passend für Einbaudurchmesser: 68 mm
Hervorragende Farbwiedergabe: Ra >80
Farbabstand (MacAdam): 3 SDCM
Bemessungslebensdauer: L70/B50 30.000 h
Lichtstrom: ca. 650 lm (neutralweiß); ca. 640 lm (warmweiß)
Farbtemperatur: ca. 4000 K (neutralweiß); ca. 3000 K (warmweiß)
Betriebsgerät: nicht notwendig
Dimmung: Phasenabschnittsdimmer
Material: Aluminiumdruckguss/Glas; Oberfläche: pulverbeschichtet oder galvanisiert
weniger lesen
Technical Data
-
Protection specifications
Covering of the luminaire with thermally insulating material possible no CE-Conformity yes RoHS yes Protection class I Degree of protection IP40 Impact strength IK00 Thermal insulation mark yes Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes Installation note [flammable materials] flammable materials Installation in insulated ceilings, fire protection 'F with roof' yes Note ensure constant convection and do not cover by insulation material - Temperature specifications
Ambient temperature [Ta [°C] 0 - 25 - Material and colour
Reflector colour silver Material housing die-cast aluminium Colour housing chrome Surface of the housing galvanized Material cover glass Heat sink yes Material of Heat sink aluminium Material of reflector Plastic with aluminium coating Front glass yes - Product contents
With light source yes - Technical lighting specifications
Light cone Medium beam 21-40° Colour temperature [K] 3000 Colour of light warm white LED efficiency [system] [lm/W] 95 Total luminous flux [lm] 570 Beam angle [°] 38 Colour consistency (MacAdam) [SDCM] 3 Colour rendering index Ra 80 Colour rendering index R9 21 Fit for monitor workplace acc. EN 12464-1 no Peak luminous intensity [cd] 900 Light distributor reflector L70B50 - life time at 25°C [h] 30000 Flicker Metric [Pst LM] 1 Stroboscopic effect metric [SVM] 0,4 Colour controllable (RGB) no Total lumen setting adjustable no Colour temperature adjustable no Light source replaceable no Light sharing symmetric Light outlet direct Lamp type COB LED Suitable for number of lamps 1 - Dimensions and weight
Length [mm] 88 Width [mm] 88 Height [mm] 46 Weight [g] 177 Ceiling cut-out [diameter] [mm] 68 Built-in depth [mm] 45 - Other specifications
Operation by Bluetooth no Adjustability Swivelling Mounting method recessed-mounted Suitable for general lighting yes Suitable for recessed wall installation no Suitable for wall mounting no Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Adjustable [°] 20 Kind of disposal at the end of the life time specific collection points, please consider the local regulations Reflector high gloss Suitable for lighting accessories no Adjustable version no - Electrical specifications
Type of LED driver LED operating device current-controlled Lamp power [W] 6 Lamp holder without Type of wiring Through wiring included Wire cross section Terminal block and through-wiring (L, N, PE) Exchangeable LED driver no Dimmable yes Type of dimming trailing edge Power factor (PF) 0,93 Nominal voltage [V] 230 Input current [at 230V AC] [A] 0,065
