LED Mini Kardan E2 2x7W ti.-matt BIO 930 38° 350mA
The new LED Mini Kardan recessed luminaires are equipped with BIO Spectrum LEDs. With the new BIO Spectrum LEDs, artificial light reaches a new dimension, as they contain the entire colour spectrum - comparable to sunlight. With BIO Spektrum LEDs, the blue component is reduced to the harmless blue component.
BIO Spektrum LEDs imitate sunlight (of course without UV rays) and thus support the human biorhythm. In addition, the light has a positive effect on performance, concentration and visual comfort. Thanks to the BIO Spectrum LEDs, colours are reproduced realistically, even the smallest colour nuances can be reliably assessed.

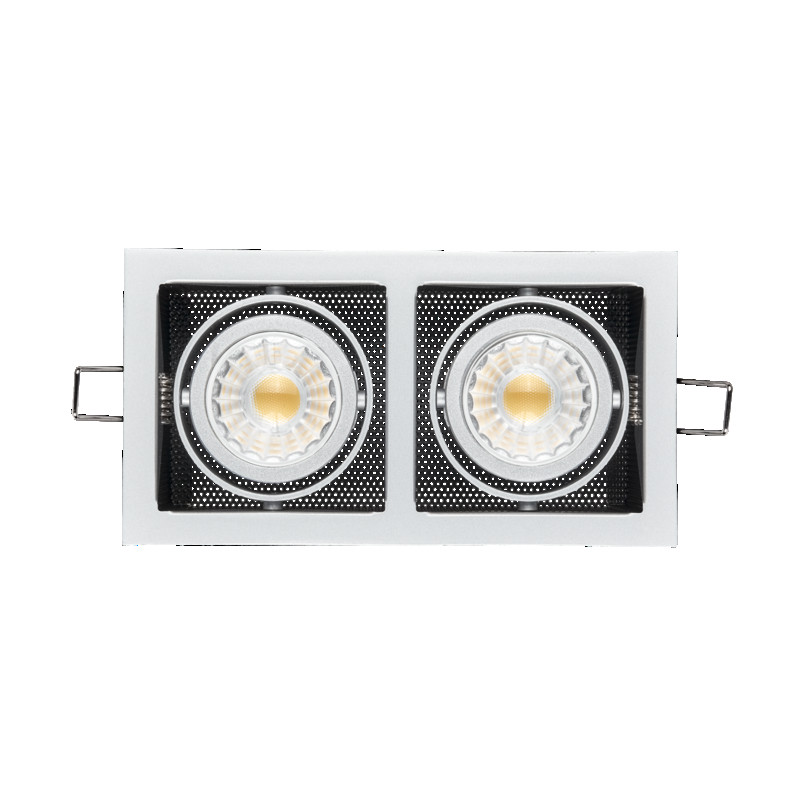

The rectangular recessed luminaire with gimbal-mounted LED module can be swivelled by 45° in all directions: ideal for general and spot lighting, especially for staging objects in private and commercial areas as well as for shop lighting.
LED driver: not included
Dimming: Led driver dependent
Ceiling mounting: with mounting springs
Material: die-cast alumininium

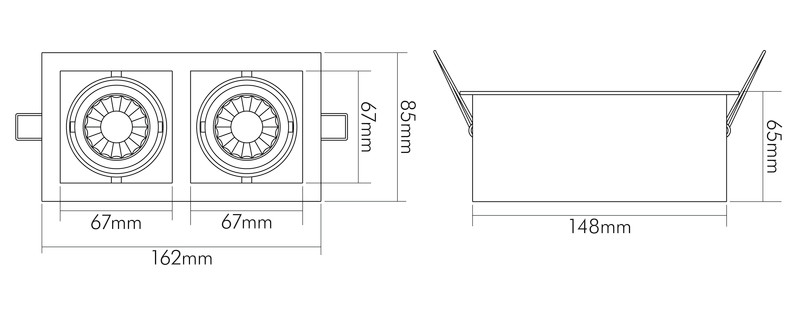

Dimensions (LxWxH): 162x85x65 mm
Colour rendering index Ra: 97
Colour distance (MacAdam): 3 SDCM
Life time: 50.000 h (L80 B10)
Recommendation LED driver:
1x Part no. 8990153510 EL-15-350 non dim, non dimmable
1x Part no. 8990153500 EL-15-350 D dim C, dimmable with trailing edge
2x Part no. 8999038350 EL-8R-350 non dim, non dimmable
2x Part no. 8999028350 EL-8R-350 D dim C, dimmable with trailing edge
1x Part no. 8970203500 EL-20-Uni 350-700 dim Dali/push/1-10V
1x Part no. 8980260350 EL-25 Uni 350-1050 dim Dali
1x Part no. 8980420350 EL-40 Uni 350-1050 dim Dali
Die neuen LED Mini Kardan Einbauleuchten sind mit BIO LEDs ausgestattet. Durch die neuen BIO LEDs erreicht künstliches Licht eine neue Dimension, da sie das gesamte Farbspektrum enthalten – vergleichbar mit dem Sonnenlicht.
Mit BIO Spektrum LEDs wird der Blauanteil auf den unschädlichen Blauanteil reduziert. BIO Spektrum LEDs imitiert das Sonnenlicht (natürlich ohne UV-Strahlen) und unterstützt somit den menschlichen Biorhythmus. Zusätzlich wirkt sich das Licht positiv auf die Leistungskraft, Konzentration und den Sehkomfort aus. Durch die BIO LEDs werden Farben realitätsgetreu wiedergegeben, selbst kleinste Farbnuancen können zuverlässig beurteilt werden.
Die rechteckige Einbauleuchte mit kardanisch aufgehängtem LED Modul ist um 45° in alle Richtungen schwenkbar: ideal zur Allgemein- und Spotbeleuchtung, speziell zur Inszenierung von Objekten im privaten und gewerblichen Bereich sowie in der Shopbeleuchtung.
Dimmung: Betriebsgerätabhängig
Deckenbefestigung: mit Einbaufeder
Material: Alumininiumdruckguss
Abmessungen (LxBxH): 162x85x65 mm
Farbwiedergabeindex Ra: 97; Farbabstand (McAdam): 3 SDCM
Lebensdauer: 50.000 h (L80 B10)
Betriebsgerätempfehlung:
Art.-Nr. 2x 8990153510 EL-15-350 nicht dimmbar
Art.-Nr. 2x 8990153500 EL-15-350 D (C) dimmbar mit Phasenabschnittsdimmer
Art.-Nr. 2x 8999038350 EL-8R-350 nicht dimmbar
Art.-Nr. 2x 8999028350 EL-8R-350 D dimmbar mit Phasenabschnittsdimmer
Art.-Nr. 8970203500 EL-20-Uni 350-700 dim Dali/push/1-10V
Art.-Nr. 8980260350 EL-25 Uni 350-1050 dimmbar Dali
Art.-Nr. 8980420350 EL-40 Uni 350-1050 dimmbar Dali
weniger lesen
Technical Data
-
Protection specifications
Covering of the luminaire with thermally insulating material possible no CE-Conformity yes RoHS yes Protection class III Degree of protection IP40 Impact strength IK00 Thermal insulation mark yes Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes Installation in insulated ceilings, fire protection 'F with roof' no Note ensure constant convection and do not cover by insulation material - Temperature specifications
Ambient temperature [Ta [°C] 0 - 40 - Material and colour
Material housing die-cast aluminium Colour housing matt titanium Surface of the housing painted - Other specifications
Type of luminaire cardanic luminaire Mounting method recessed-mounted Suitable for general lighting yes Suitable for recessed wall installation no Suitable for wall mounting no Suitable for suspended mounting no Suitable for light line configuration no Operation by Bluetooth no Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Kind of disposal at the end of the life time specific collection points, please consider the local regulations Lamp module cardanic adjustable up to [°] 45 Ceiling fixing with mounting springs Adjustable version yes - Product contents
With light source yes Including LED driver no - Technical lighting specifications
Light cone Medium beam 21-40° Colour temperature [K] 3000 Colour of light warm white LED efficiency [lm/W] 76 Total luminous flux [lm] 1100 Beam angle [°] 38 Colour consistency (MacAdam) [SDCM] 3 Colour rendering index Ra 98 Colour rendering index R9 96 Fit for monitor workplace acc. EN 12464-1 no Peak luminous intensity [cd] 2090 L80B10 - life time at 25 °C [h] 50000 L70B50 - life time at 25°C [h] 50000 Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 80 Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 10 Colour controllable (RGB) no Constant light output (CLO) no Light source replaceable no Light sharing symmetric Light outlet direct Lens optical lens Lamp type COB LED Suitable for number of lamps 1 - Dimensions and weight
Length [mm] 162 Width [mm] 85 Height [mm] 65 Weight [g] 400 Built-in width [mm] 75 Built-in lenght [mm] 150 Built-in depth [mm] 70 Diameter of light source [mm] 50 - Electrical specifications
Type of LED driver LED driver Lamp power [W] 15 Nominal current of luminaire [mA] 350 Rated voltage of luminaire [DC] [V] 43 Constant current [mA] 350 Lamp holder other Wire cross section Mini AMP plug (male) Dimmable yes Type of dimming Led driver dependent Through-wiring possible no Electrical connection with connector system yes
