A 5068Q T Flat nickel-geb. 8W BIO 940 38° dim C
For use in spot and general lighting.
Ideal problem solver for ceilings with low installation depth
Front glass
Genuine glass reflector
Aluminum heat sink
The luminaire is only suitable for installation in false ceilings. Installed downlight must not be covered by insulation material. Ensure constant convection.
Installation housing: the LED Downlight can generally be installed in all standard housings for the installation in concrete ceilings; specially tested are the housings from KAISER: HaloX® 100 with tunnel 190 (Type 1281-30) + Front section, i. e. type 1281-11/HaloX® 180 with tunnel 190 (Type 1282-72/1282-75).
Material: die-cast aluminium
Surface: powder coated or galvanized
Suitable for ceiling cut-out: 68 mm
Colour rendering index Ra: 98
Colour distance (MacAdam): 3 SDCM
Life time: 50.000 h (L80 B10)

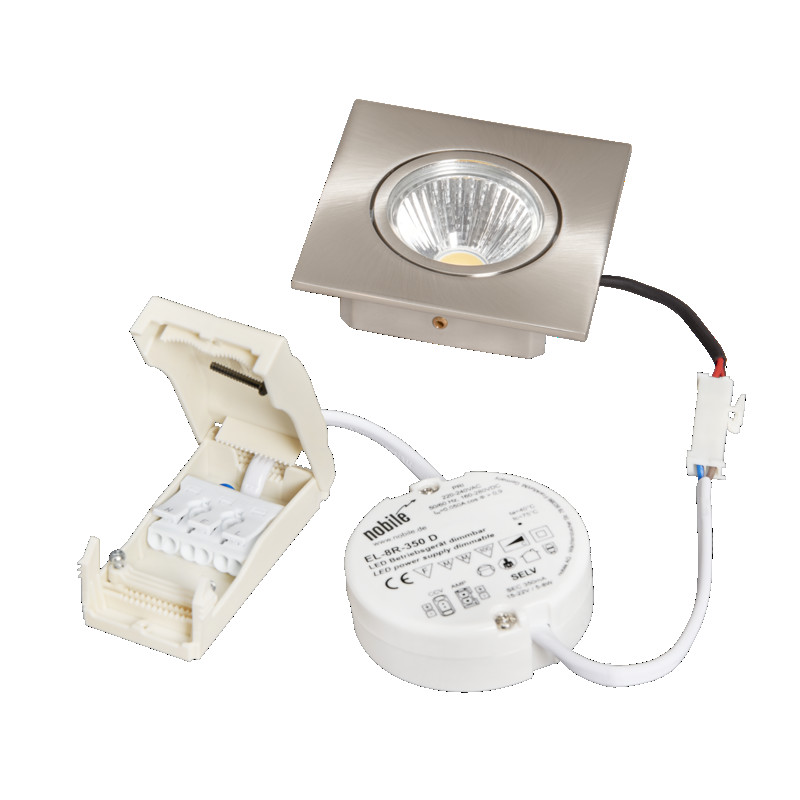

LED driver included: dimmable with trailing edge
Terminal block and through-wiring (L, N, PE)
weniger lesen
Technical Data
-
Protection specifications
Covering of the luminaire with thermally insulating material possible no CE-Conformity yes RoHS yes Protection class II Degree of protection IP40 Impact strength IK00 Thermal insulation mark yes Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes Installation note [flammable materials] flammable materials Installation in insulated ceilings, fire protection 'F with roof' yes Note ensure constant convection and do not cover by insulation material - Temperature specifications
Ambient temperature [Ta [°C] 0 - 25 - Product contents
With light source yes Including LED driver yes - Technical lighting specifications
Light cone Medium beam 21-40° Colour temperature [K] 4000 Colour of light neutral white Total luminous flux [lm] 600 Beam angle [°] 38 Colour consistency (MacAdam) [SDCM] 3 Colour rendering index Ra 98 Colour rendering index R9 97 Fit for monitor workplace acc. EN 12464-1 no Peak luminous intensity [cd] 796 Light distributor reflector L80B10 - life time at 25 °C [h] 50000 L70B50 - life time at 25°C [h] 50000 Colour controllable (RGB) no Colour temperature adjustable no Light sharing symmetric Light outlet direct Lamp type COB LED Suitable for number of lamps 1 - Dimensions and weight
Length [mm] 88 Width [mm] 88 Height [mm] 29 Weight [g] 265 Ceiling cut-out [diameter] [mm] 68 Built-in depth [mm] 25 - Other specifications
Operation by Bluetooth no Adjustability Swivelling Mounting method recessed-mounted Suitable for general lighting yes Suitable for recessed wall installation no Suitable for wall mounting no Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Adjustable [°] 20 Kind of disposal at the end of the life time specific collection points, please consider the local regulations Reflector high gloss Suitable for lighting accessories no - Material and colour
Reflector colour silver Material housing die-cast aluminium Material cover glass Heat sink yes Material of Heat sink aluminium Material of reflector glass Front glass yes Colour brushed nickel Surface finishing galvanized - Electrical specifications
Type of LED driver LED driver Lamp power [W] 8 Rated voltage of the LED driver [AC [V] 220 - 240 Lamp holder without Wire cross section Terminal block and through-wiring (L, N, PE) Exchangeable LED driver yes Dimmable yes Type of dimming trailing edge Through-wiring possible yes Electrical connection with connector system no
