LED Panel R3SP up-light UGR≤19 TUN Dali

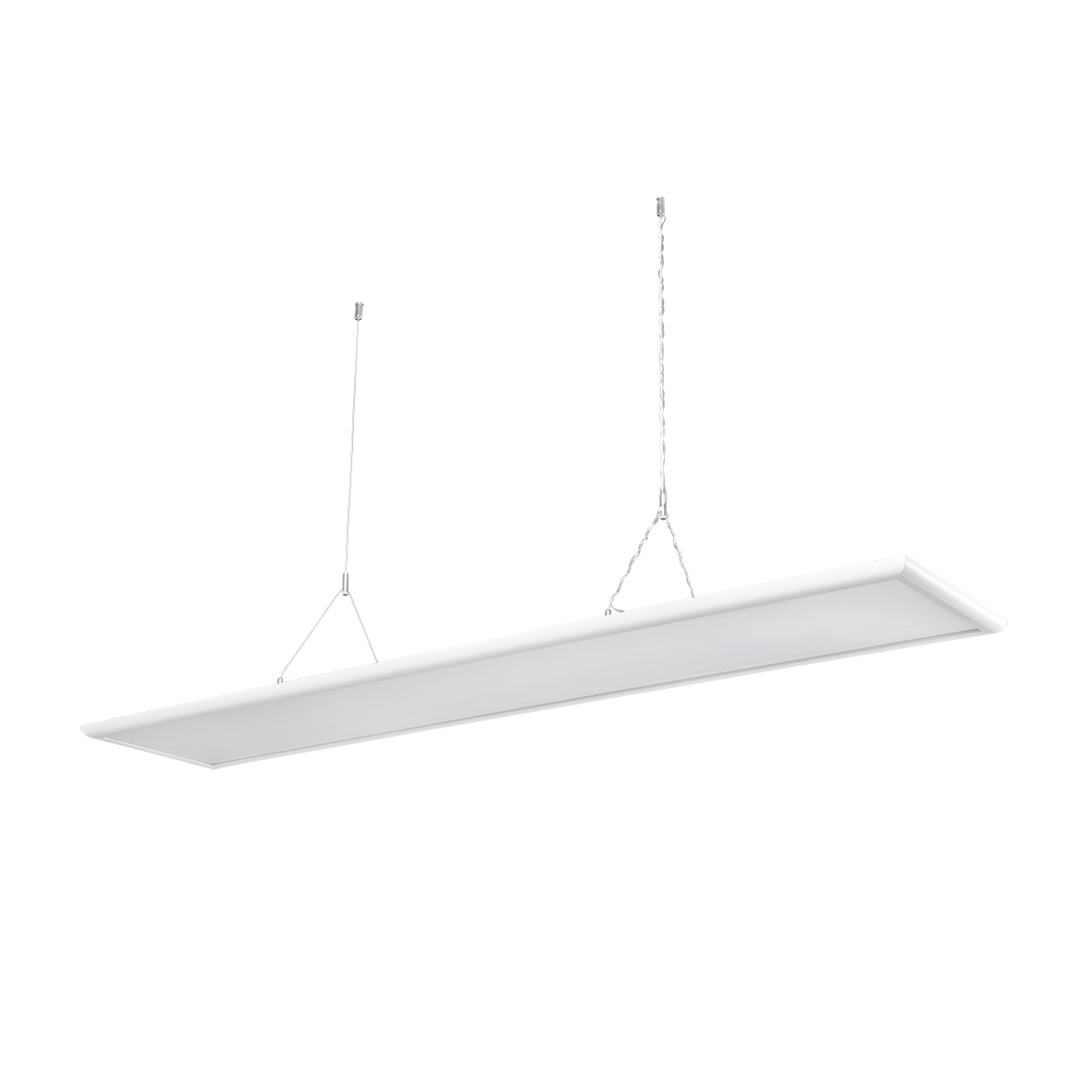

LED Panel R3SP up-light UGR≤19 Tunable White is a pendant luminaire with a clean, shapely design.

The luminaire is provided with a glare limitation UGR≤19 and a luminance ≤3000cd at y ≥ 65° according to EN-12464 is suitable for the illumination of VDU workstations.

Tunable White technology allows dynamic adjustment of illuminance and colour temperature. A second option is the setting of individual lighting scenes. With the appropriate control and programming, this technology supports the concept of Human Centric Lighting (HCL) with a simulation of the course of daylight that is as true to nature as possible.

LED driver included: dimmable Dali

Light distribution: 30% up; 70% down

Y-cable supensions (2 m): included

Pendant thickness (Ø): 1.5 mm

Canopy for housing the LED driver: included

Lightguide opal/prismatic

Material: aluminium white painted/Microprism diffuser and light guide made of PMMA (non-yellowing)

Dimensions (LxWxH): 1495x295x20 mm

Colour rendering index Ra: 80

Colour distance (MacAdam): 3 SDCM

Life time: 50.000 h (L80 B10)
