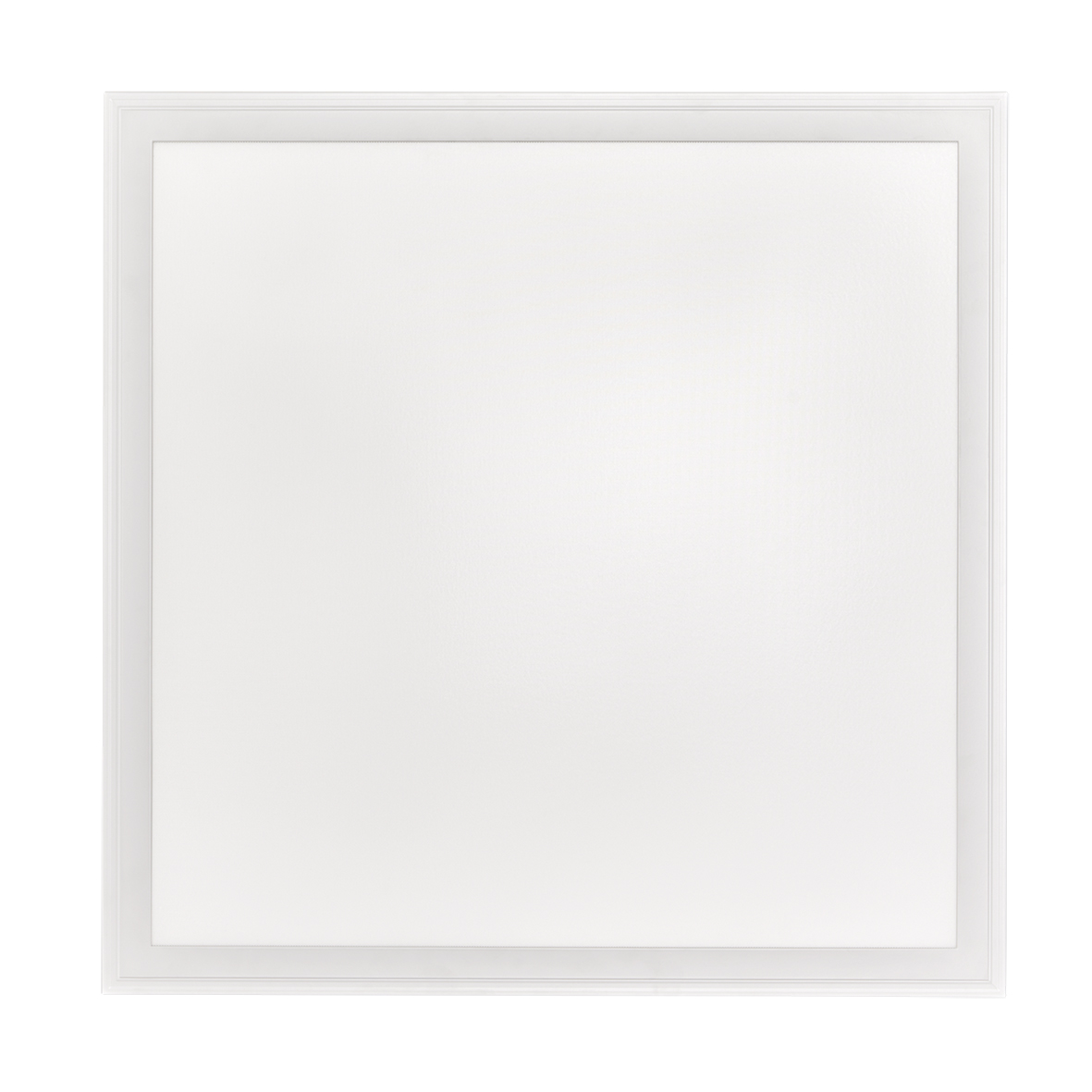

LED Panel Q2S UGR≤19 TUN Dali

LED Panel for easy and rapid installation
CF_GENERIC_CHILD_VARIANT_WITHOUT_PARENT

The luminaire is provided with a glare limitation UGR≤19 and a luminance ≤3000cd at y ≥ 65° according to EN-12464 is suitable for the illumination of VDU workstations.

Tunable White technology allows dynamic adjustment of illuminance and colour temperature. A second option is the setting of individual lighting scenes. With the appropriate control and programming, this technology supports the concept of Human Centric Lighting (HCL) with a simulation of the course of daylight that is as true to nature as possible.

Optional accessories:

Wall-/Ceiling Mounting

Surface-mounted frame

Built-in frame

Mounting spring

Material: aluminium white painted/Microprism diffuser and light guide made of PMMA (non-yellowing)

Dimensions (LxWxH): 622x622x9 mm

Ceiling cut-out (LxW) recessed version: 608x608 mm

Ceiling cut-out (LxW) lay-in version: 600x600 mm

Colour rendering index Ra: 80

Colour distance (MacAdam): 3 SDCM

Life time: 50.000 h (L80 B10)

LED driver included: dimmable Dali
