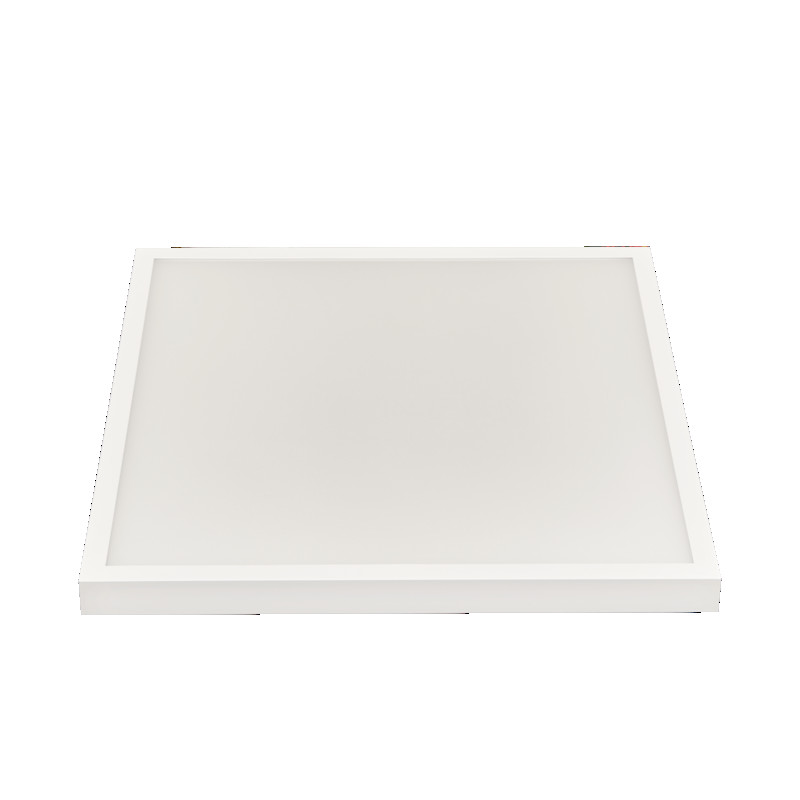

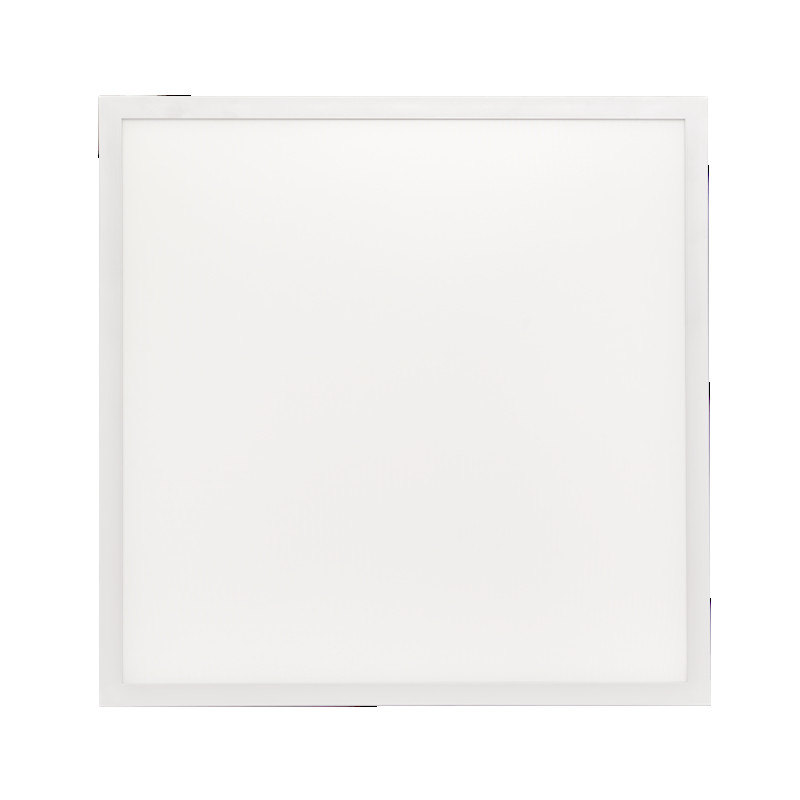

LED Panel s.mount 620x620 UGR19 w. 30-840 n.dim
EAN: 4044538070810
The luminaire convinces with its high energy efficiency as well as its clear and unobtrusive design.
A special feature is the low construction that’s a reason why the luminaire is the right choice for a harmonious general lighting. It can be integrated discreetly into all rooms.
Material: aluminium white painted/Microprism diffuser made of PMMA (non-yellowing)

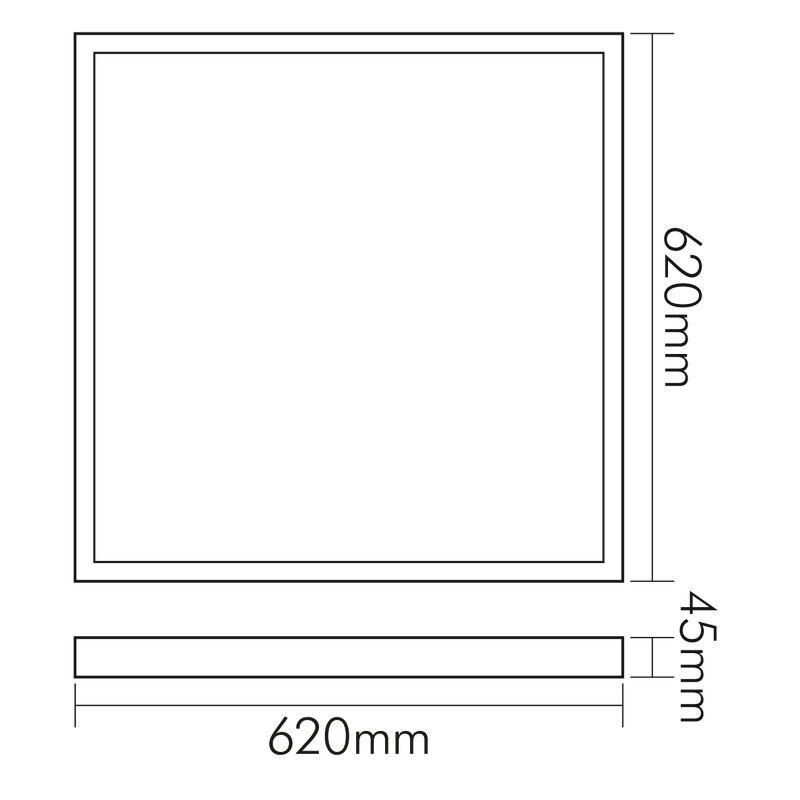

Dimensions (LxWxH): 620x620x45 mm
Colour rendering index Ra: 80
Colour distance (MacAdam): 3 SDCM
Life time: 50.000 h (L80 B10)
LED driver included: non dimmable
Terminal block and through-wiring (L, N, PE)
weniger lesen
Technical Data
-
Other specifications
Compatible with Casambi no BEG funding yes Mounting method surface mounted Type of luminaire Surface mounted luminaire Suitable for general lighting yes Suitable for recessed wall installation no Suitable for wall mounting no Suitable for suspended mounting no Suitable for built-in mounting no Suitable for ceiling mounting yes Suitable for surface mounting yes Suitable for light line configuration no Operation by Bluetooth no Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Kind of disposal at the end of the life time specific collection points, please consider the local regulations Reflector without Independant installation yes - Protection specifications
CE-Conformity yes RoHS yes Protection class II Degree of protection IP40 Impact strength IK05 Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes Installation note [flammable materials] surface-mounted luminaire for direct mounting on normal flammable surfaces - Temperature specifications
Ambient temperature [Ta [°C] 0 - 40 - Material and colour
Colour housing white Material aluminium painted white/acrylic mirco prisms panel - Technical lighting specifications
Light cone Open beam/diffuse Suitable for number of light sources 1 Colour temperature [K] 4000 LED efficiency [lm/W] 141 LED efficiency [system] [lm/W] 121 Total luminous flux [lm] 4230 Beam angle [°] 90 Colour consistency (MacAdam) [SDCM] 3 Colour rendering index Ra 80 Colour rendering index R9 10 Unified Glare Rating [UGR] 19 Anti-glare limiting [UGR] lengthwise 18,2 Anti-glare limiting [UGR] crosswise 18 Fit for monitor workplace acc. EN 12464-1 yes Luminance y ≥ 65° ≤3000 cd/m2 Peak luminous intensity [cd] 1885 Light distributor Diffuser L80B10 - life time at 25 °C [h] 60000 L70B50 - life time at 25°C [h] 50000 Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 80 Colour controllable (RGB) no Total lumen setting adjustable no Colour temperature adjustable no Constant light output (CLO) no Light input sidelit Light sharing symmetric Light outlet direct Lamp type SMD-LED - Product contents
With light source yes Including LED driver yes Installation material included yes - Dimensions and weight
Length [mm] 620 Width [mm] 620 Height [mm] 45 Weight [g] 3480 Light outlet opening [lenght] [mm] 580 Light outlet opening [width] [mm] 580 - Electrical specifications
Switching cycles of the LED Driver 35000 Type of LED driver LED operating device current-controlled Lamp power [W] 30 Max. system power [W] 35 Nominal current of luminaire [mA] 1050 Rated voltage of luminaire [DC] [V] 28 Rated voltage of the LED driver [AC [V] 220 - 240 Lamp holder without Type of wiring Through wiring included Exchangeable LED driver yes Dimmable no Flicker free yes LED driver LED operating device current-controlled Rated current max. at 230V AC [A] 0,18 Power factor > 0,95
