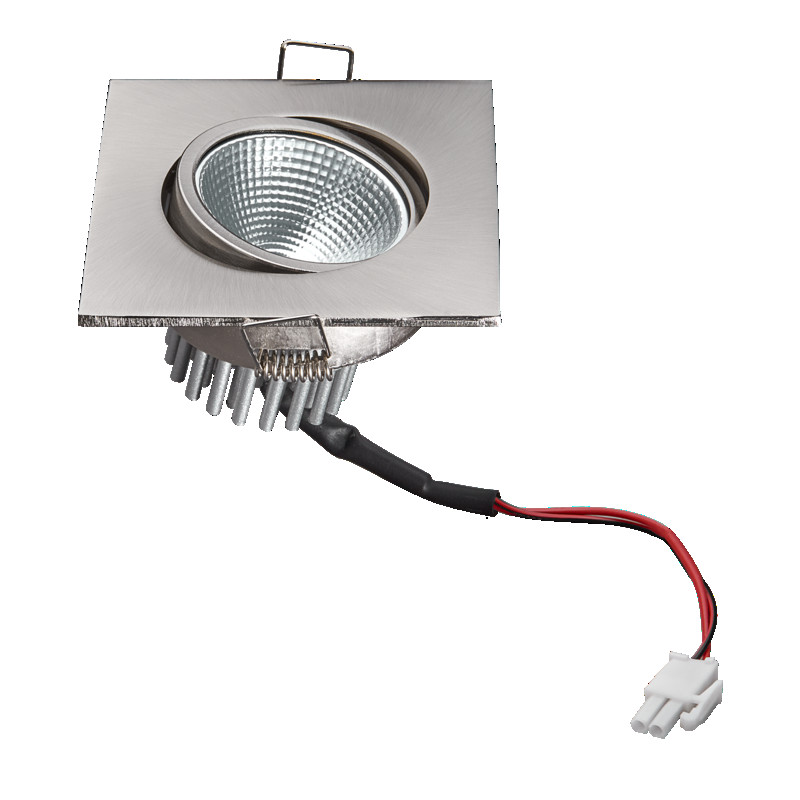

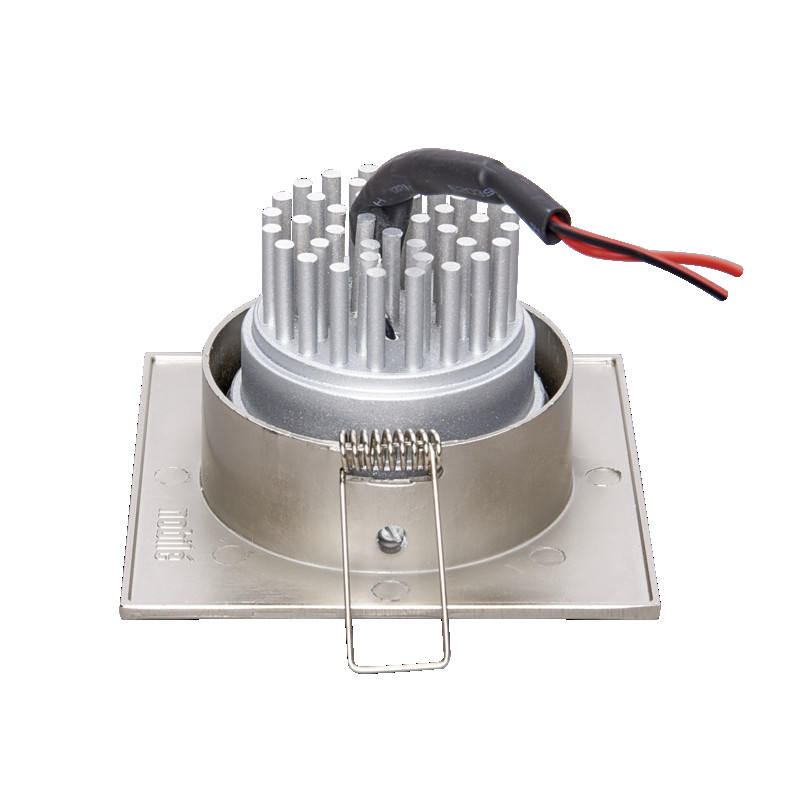

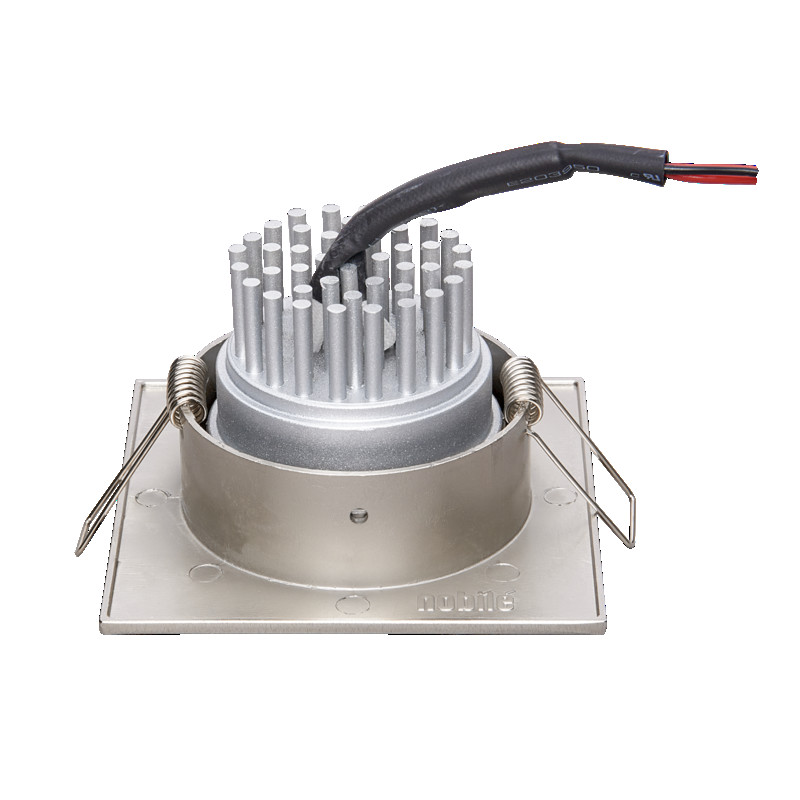

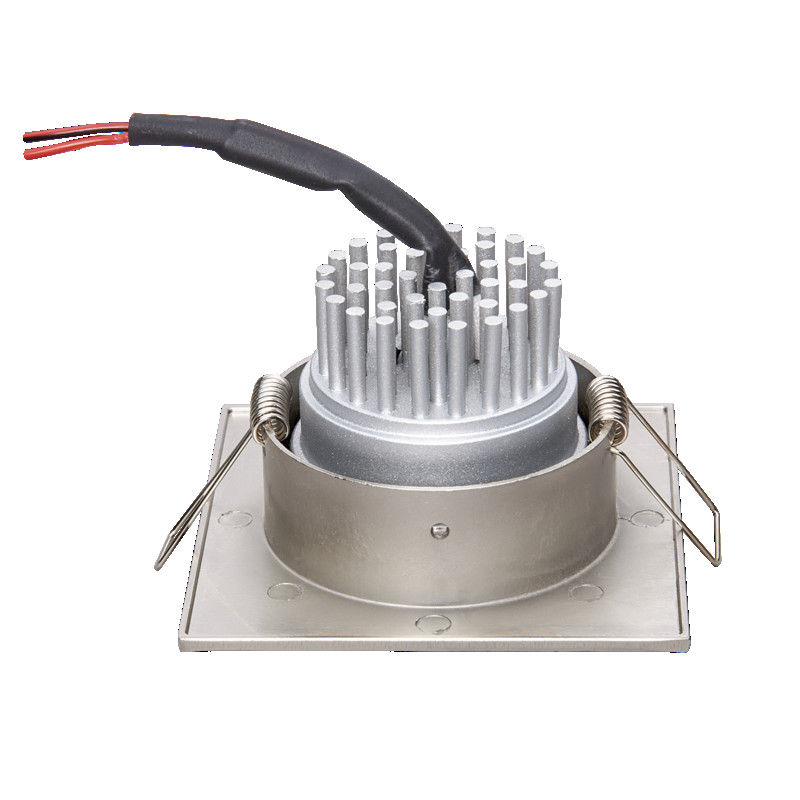

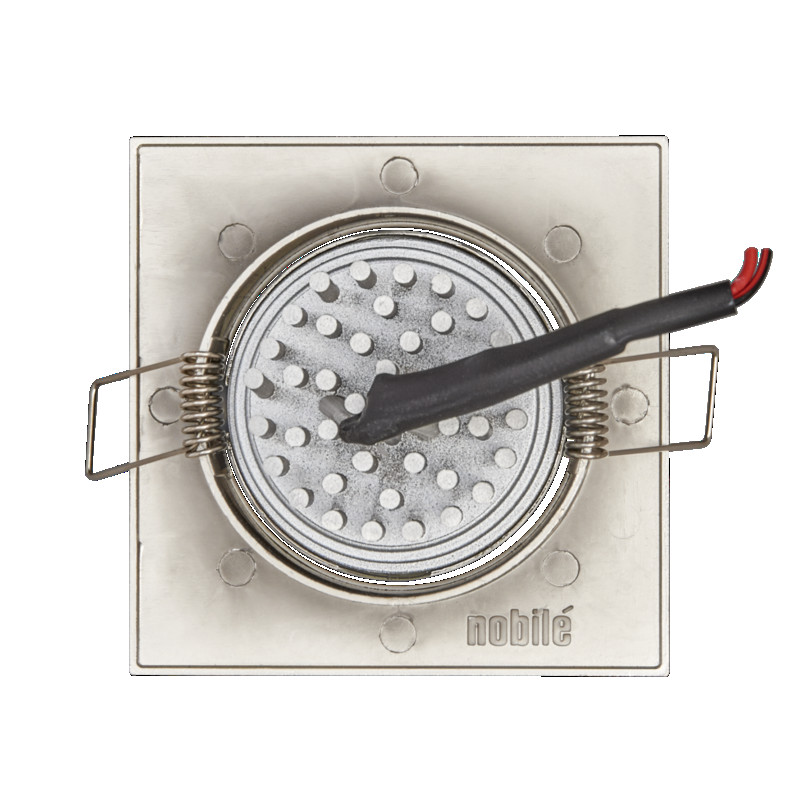

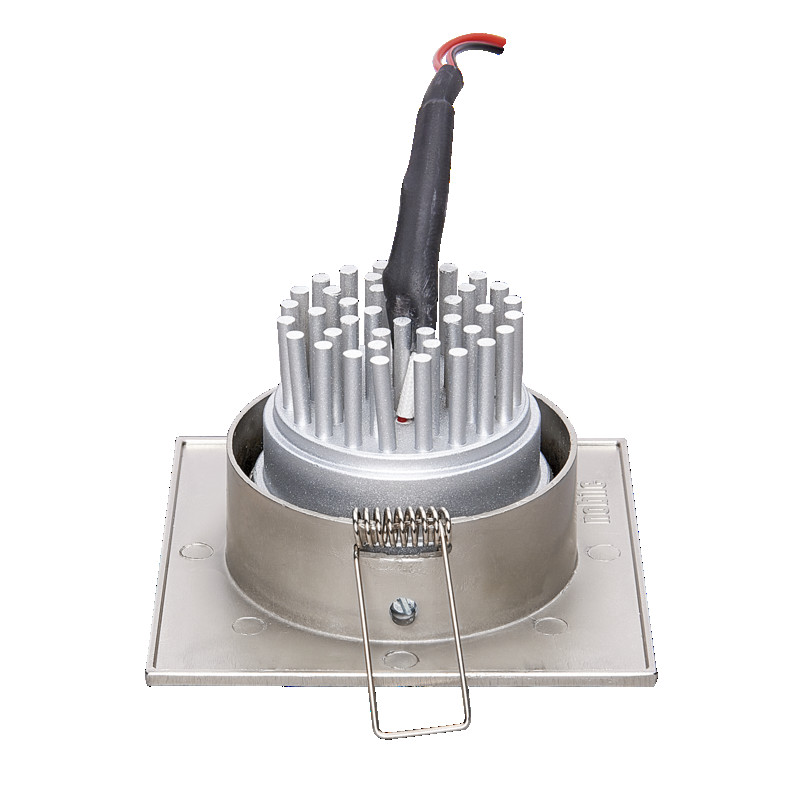

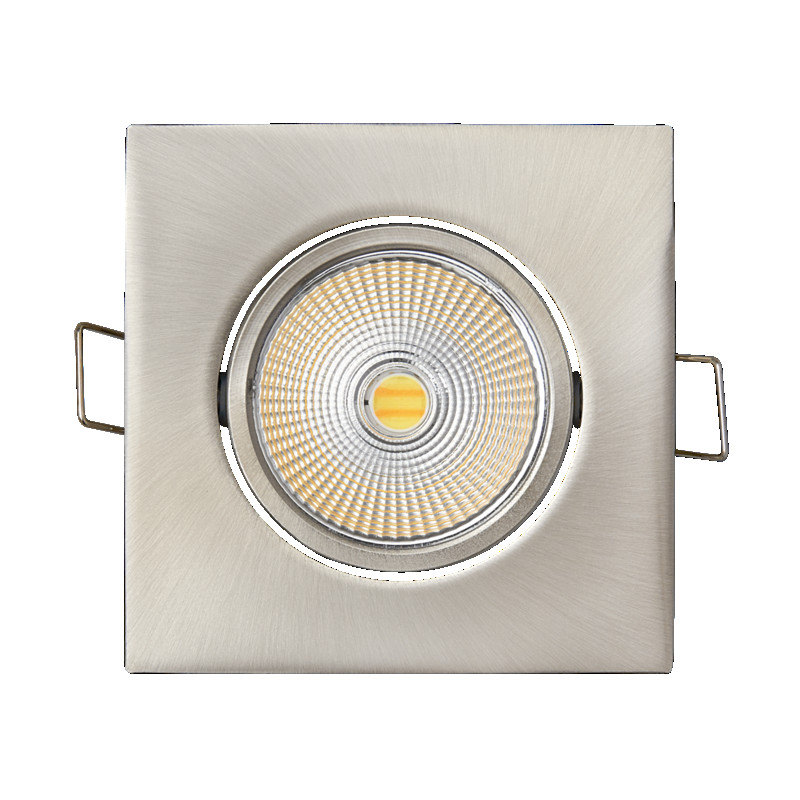

5068Q Dim to Warm nickel-br. 9,5W 38° 350mA
EAN: 4044538063829
Dim to Warm-LEDs enable the selected choice of the colour temperature and also the control of the colour intensity easily. The LEDs are based on halogen and incandescent lamps but are cost-effectively. Using Dim to Warm-LEDs result in cost-effective solutions which can be run by LED drivers for standard LEDs.
Front glass
Aluminum heat sink
The luminaire is only suitable for installation in false ceilings. Installed downlight must not be covered by insulation material. Ensure constant convection.
Installation housing: the LED Downlight can generally be installed in all standard housings for the installation in concrete ceilings; specially tested are the housings from KAISER: HaloX® 100 with tunnel 190 (Type 1281-30) + Front section, i. e. type 1281-11/HaloX® 180 with tunnel 190 (Type 1282-72/1282-75)
Material: die-cast aluminium/glass
Surface: powder coated or galvanized
Suitable for ceiling cut-out: 68 mm
Colour rendering index Ra: 90
Colour distance (MacAdam): 3 SDCM
Life time: 50.000 h (L80 B50)
Recommendation LED driver:
Part no. 8990153500 EL-15-350 D dim C, dimmable with trailing edge
weniger lesen
Technical Data
-
Protection specifications
Covering of the luminaire with thermally insulating material possible no CE-Conformity yes RoHS yes Protection class III Degree of protection IP40 Impact strength IK00 Thermal insulation mark yes Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes Installation note [flammable materials] flammable materials Installation in insulated ceilings, fire protection 'F with roof' yes Note ensure constant convection and do not cover by insulation material - Temperature specifications
Ambient temperature [Ta [°C] 0 - 25 - Product contents
With light source yes Including LED driver no - Technical lighting specifications
Light cone Medium beam 21-40° Colour temperature [K] 2000 - 3000 Colour of light halogen white till warm white LED efficiency [lm/W] 79 Total luminous flux at 3000 K [lm] 880 Total luminous flux at 2000 K [lm] 80 Beam angle [°] 38 Colour consistency (MacAdam) [SDCM] 3 Colour rendering index Ra 90 Colour rendering index R9 40 Fit for monitor workplace acc. EN 12464-1 no Peak luminous intensity [cd] 1550 Light distributor reflector L70B50 - life time at 25°C [h] 50000 L80B50 - life time at 25 °C [h] 50000 Colour controllable (RGB) no Total lumen setting adjustable no Colour temperature adjustable Continuously variable Light source replaceable no Luminaire lighting surface transparent Light sharing symmetric Light outlet direct Lamp type COB LED Suitable for number of lamps 1 - Dimensions and weight
Length [mm] 88 Width [mm] 88 Height [mm] 50 Weight [g] 210 Light portal opening [diamter] [mm] 48 Ceiling cut-out [diameter] [mm] 68 Built-in depth [mm] 55 - Other specifications
Operation by Bluetooth no Adjustability Swivelling Type of luminaire recessed luminaire Mounting method recessed-mounted Suitable for general lighting yes Suitable for recessed wall installation no Suitable for wall mounting no Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Adjustable [°] 20 Kind of disposal at the end of the life time specific collection points, please consider the local regulations Reflector high gloss Suitable for lighting accessories no - Material and colour
Reflector colour silver Material housing die-cast aluminium Surface of the housing galvanized Material cover glass Heat sink yes Material of Heat sink aluminium Material of reflector aluminium Front glass yes Colour brushed nickel - Electrical specifications
Type of LED driver LED operating device current-controlled Lamp power [W] 9,5 Nominal current of luminaire [mA] 350 Constant current [mA] 350 Lamp holder without Type of wiring Ending Wire cross section 20 cm connecting cable with reverse polarity protected and Mini AMP plug-system 2-pole Cable conductor quantity 2 Cable cross section [luminaire] [mm²] 0,2 Exchangeable LED driver yes Dimmable yes Type of dimming Led driver dependent Through-wiring possible yes Nominal voltage [V] 27 Electrical connection with connector system yes
