Daylight sensor 1-10V

Efficient and intelligent - sensor for automatic light control
Article Choice

The daylight sensor regulates the individual control of your lighting - independent and reliable. The required brightness setpoint is adjusted by a rotary potentiometer.

The measured illuminance is converted into a resistance value which is recognizable for all 1-10V LED drivers.

Depending on the ambient brightness the light control is done by a foto cell. The sensor dims the light according to the configured brightness setpoint depending on the amount of daylight.

Including: Fixing clips for easy mounting on T5 or T8 lamps and surface-mounted adapter for easy mounting on wall/ceiling

Dimming: 1-10V

Sensor angle (conical): 90°

Material: synthetic material

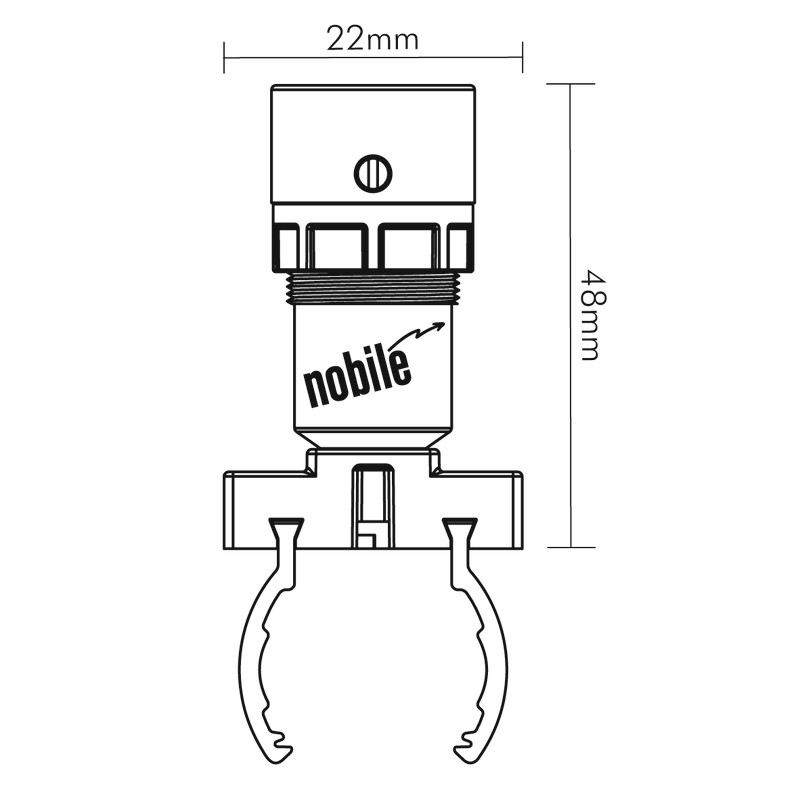

Dimensions (ØxH): 22x48 mm; Ceiling cut-out (Ø): 18 mm

Connection: 80 cm cable 2-pole with open cable ends
