5068 Dim to Warm 350mA

Dim to Warm-LEDs enable the selected choice of the colour temperature and also the control of the colour intensity easily. The LEDs are based on halogen and incandescent lamps but are cost-effectively. Using Dim to Warm-LEDs result in cost-effective solutions which can be run by LED drivers for standard LEDs.

Front glass

Aluminum heat sink

The luminaire is only suitable for installation in false ceilings. Installed downlight must not be covered by insulation material. Ensure constant convection.

Installation housing: the LED Downlight can generally be installed in all standard housings for the installation in concrete ceilings; specially tested are the housings from KAISER: HaloX® 100 with tunnel 190 (Type 1281-30) + Front section, i. e. type 1281-11/HaloX® 180 with tunnel 190 (Type 1282-72/1282-75).

Material: die-cast aluminium/glass

Surface: powder coated or galvanized

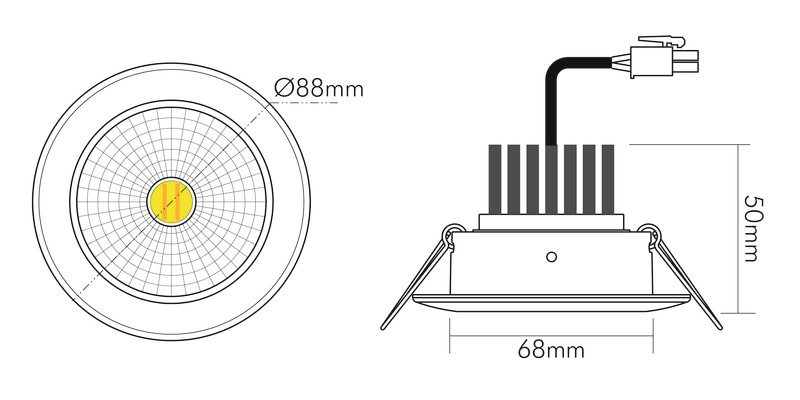

Suitable for ceiling cut-out: 68 mm

Colour rendering index Ra: 90

Colour distance (MacAdam): 3 SDCM

Life time: 50.000 h (L80 B50)

Recommendation LED driver:

Part no. 8990153500 EL-15-350 D dim C, dimmable with trailing edge
