LED Panel Flat 130 R white 11W SCCT 350mA
LED Panel Flat 130 round, SCCT
Even LED light distribution throughout the entire emitting surface.
Material: aluminium/diffuser and light guide made of PMMA (non-yellowing)
Dimensions (ØxH): 170x22 mm
Colour rendering index Ra: 82
Colour distance (MacAdam): 3 SDCM
Life time: 50.000 h (L80 B10)
LED driver: not included
Dimming: trailing edge dimmer
Recommendation LED driver:
Part no. 8990153510 EL-15-350 non dim, non dimmable
Part no. 8990153500 EL-15-350 D dim C, dimmable with trailing edge
weniger lesen
Technical Data
-
Protection specifications
Covering of the luminaire with thermally insulating material possible no CE-Conformity yes RoHS yes Protection class III Degree of protection IP20 Impact strength IK00 Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes Installation note [flammable materials] recessed luminaire suitable for direct mounting on normal flammable surfaces Fire resistance 'D' no Installation in insulated ceilings, fire protection 'F with roof' no - Temperature specifications
Ambient temperature [Ta [°C] 0 - 25 - Other specifications
Type of luminaire recessed luminaire Mounting method recessed-mounted Suitable for general lighting yes Suitable for recessed wall installation yes Suitable for wall mounting yes Suitable for suspended mounting no Suitable for built-in mounting yes Suitable for ceiling mounting yes Suitable for surface mounting no Suitable for light line configuration no Operation by Bluetooth no Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Kind of disposal at the end of the life time specific collection points, please consider the local regulations Reflector without Adjustable version no - Product contents
Including LED driver no Cable suspension supplied with the product no - Technical lighting specifications
Colour temperature 2 [K] 4000 Colour temperature 3 [K] 5700 Light cone Open beam/diffuse Suitable for number of light sources 1 Colour temperature [K] 3000 Colour of light warm white till halogen white LED efficiency [lm/W] 109 Total luminous flux at 3000 K [lm] 1100 Total luminous flux at 4000 K [lm] 1200 Total luminous flux at 5700 K [lm] 1200 Beam angle [°] 120 Colour consistency (MacAdam) [SDCM] 4 Colour rendering index Ra 80 Colour rendering index R9 20 Fit for monitor workplace acc. EN 12464-1 no Light distributor Diffuser L80B10 - life time at 25 °C [h] 50000 L70B50 - life time at 25°C [h] 50000 Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 80 Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 10 Colour controllable (RGB) no Total lumen setting adjustable no Colour temperature adjustable Positions Constant light output (CLO) no Light source replaceable no Light sharing symmetric Light outlet direct Lamp type SMD-LED Color temperature control Switchable Color Temperature (SCCT) - Dimensions and weight

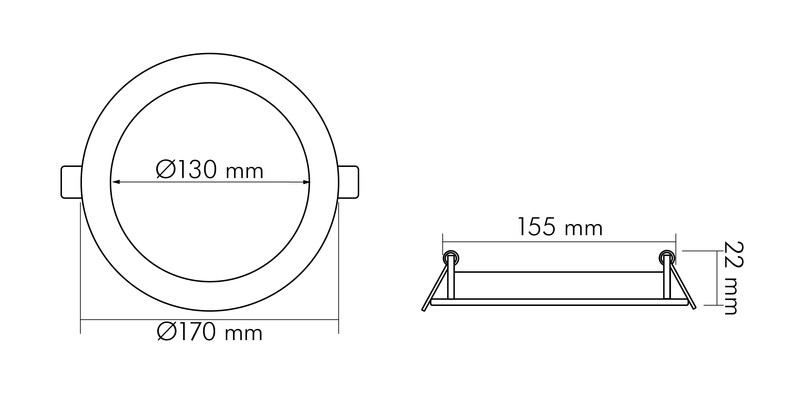

Length [mm] 170 Width [mm] 170 Diameter [mm] 170 Height [mm] 22 Weight [g] 195 Ceiling cut-out [diameter] [mm] 155 Built-in depth [mm] 25 Light portal opening [mm] 130 - Material and colour
Material housing aluminium Colour housing white Material diffuser PMMA Material lightguide PMMA Colour white - Electrical specifications
With movement sensor no Type of LED driver LED operating device current-controlled Lamp power [W] 11 Nominal current of luminaire [mA] 350 Rated voltage of luminaire [DC] [V] 33 Constant current [mA] 350 Lamp holder without Type of wiring Ending Wire cross section CCV-AMP plug (male)/CCV-AMP plug (female) with free, stripped wire ends Exchangeable LED driver no Dimmable yes Type of dimming Led driver dependent Length of cable [cm] 45 Electrical connection with connector system yes
