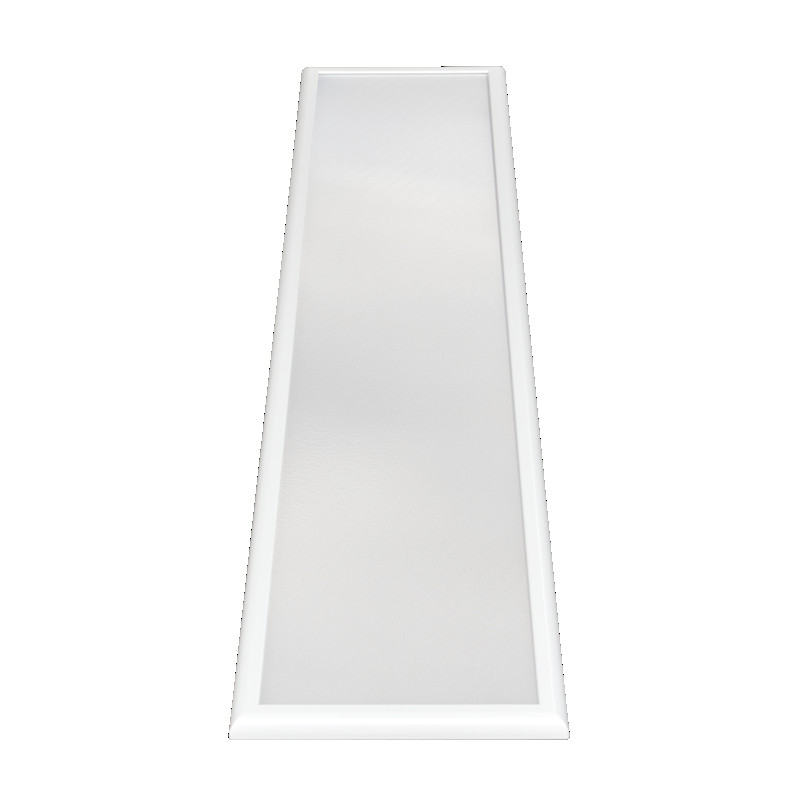

LED Panel R3SP uplight UGR<19 41W 840 Dali/push
The pendant luminaire distributes bright as well as diffuse and atmosphere light. A pleasant ambient lighting up to the ceiling; downwards bright and evenly to the illumination area as desired from a pendant luminaire.
The luminaire is provided with a glare limitation UGR≤19 and a luminance ≤3000cd at y ≥ 65° according to EN-12464 is suitable for the illumination of VDU workstations.
LED driver included: dimmable Dali/push
Light distribution: 30% up; 70% down
Y-cable supensions (2 m): included
Pendant thickness (Ø): 1.5 mm
Canopy for housing the LED driver: included
Lightguide opal/prismatic
Material: aluminium white painted/Microprism diffuser and light guide made of PMMA (non-yellowing)
Dimensions (LxWxH): 1495x295x20 mm
Colour rendering index Ra: 80
Colour distance (MacAdam): 3 SDCM
Life time: 50.000 h (L80 B10)
weniger lesen
Technical Data
-
Protection specifications
CE-Conformity yes RoHS yes Protection class II Safety class of luminaire III Safety class of LED driver II Degree of protection IP40 Impact strength IK05 Short-circuit protected yes Protection against short-circuit yes ENEC-Test mark ENEC 05 Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes - Temperature specifications
Ambient temperature [Ta] [°C] 0 - 45 - Material and colour
Material housing aluminium Colour housing white Surface of the housing painted Material diffuser PMMA Diffuser surface COM_VIRTUEMART_CF_NV004645 Material lightguide PMMA - Product contents
With light source yes Including LED driver yes Installation material included yes Cable suspension supplied with the product yes Canopy inclusive yes - Technical lighting specifications
Colour temperature [K] 4000 LED efficiency [lm/W] 132 LED efficiency [system] [lm/W] 115 Total luminous flux [lm] 5400 Total luminous flux up [lm] 1620 Total luminous flux down [lm] 3780 Beam angle down [°] 90 Beam angle up [°] 90 Colour consistency [MacAdam] [SDCM] 3 Colour rendering index Ra 80 Colour rendering index R9 6 Unified Glare Rating [UGR] 19 Fit for monitor workplace acc. EN 12464-1 yes Luminance y ≥ 65° ≤3000 cd/m2 Peak luminous intensity [cd] 1650 Light distributor Diffuser L80B10 - life time at 25 °C [h] 50000 L70B50 - life time at 25°C [h] 75000 L90B10 - life time at 25 °C [h] 25000 Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 80 Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) [%] 70 Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 10 Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) [%] 50 Colour controllable (RGB) no Total lumen setting adjustable Continuously variable Colour temperature adjustable no Constant light output (CLO) no Luminaire lighting surface opal/prismatic Light input sidelit Light sharing symmetricl/asymmetric Light outlet direct/indirect Lamp type SMD-LED Suitable for number of lamps 1 - Dimensions and weight
Length [mm] 1495 Width [mm] 295 Height [mm] 20 Weight [g] 4240 Length of cable suspension [m] 2 Pendant thickness [Ø] (cable suspension) [mm] 1,5 Pendant length [cm] 0,1 - 200 - Other specifications
Type of luminaire pendant luminaire Suitable for general lighting yes Suitable for suspended mounting yes Suitable for light line configuration no Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Kind of disposal at the end of the life time specific collection points, please consider the local regulations Reflector without - Electrical specifications
Lamp power [W] 41 Max. system power [W] 47 Constant current [mA] 1050 Voltage type AC/DC Rated voltage of the LED driver [AC] [V] 180 - 295 Rated voltage of the LED driver [DC] [V] 254 - 417 Input frequency [Hz] 47-63 Power factor [at full load] 0,975 Lamp holder without Type of wiring Ending Wire cross section terminals 0.75-1.5 mm² Exchangeable LED driver yes Dimmable yes Type of dimming dim Dali/dim push Flicker free yes Rated current of the LED driver (at 230V AC) max. [A] 0,23 LED driver LED operating device current-controlled Number of poles 2 Conductor cross section [mm²] 0,5
