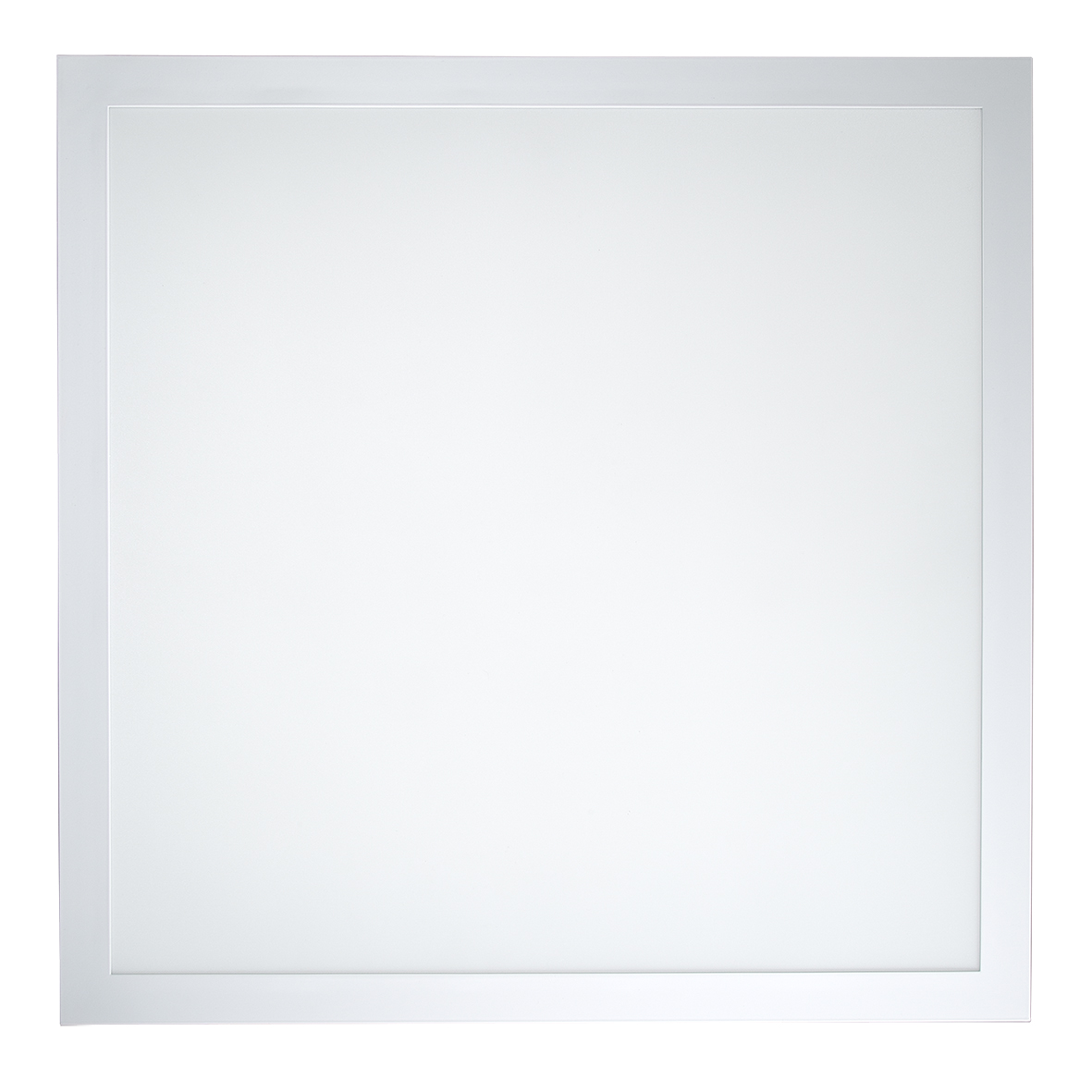

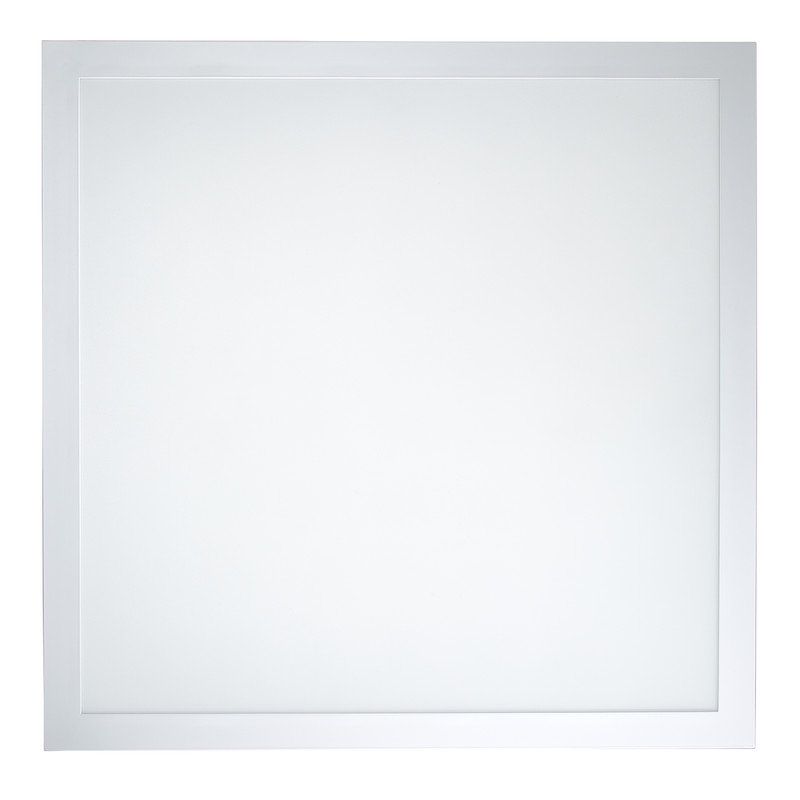

LED Panel Backlight 62 UGR≤19 SCCT 1050mA

LED Panel Backlight SCCT
Article Choice

Switchable Color Temperature - SCCT.

Decide on your color temperature before installing the luminaire! Adjust it, by means of a switch, to the desired color temperature without further ado.

Even LED light distribution throughout the entire emitting surface.

Especially qualified for use in rooms with a glare limitation UGR≤19. The luminaire has a luminance of <3000cd/m² at y ≥ 65° according to EN-12464 and complies with the current standards for VDU workplaces.

Material: aluminium white painted/Microprism diffuser and light guide made of PMMA (non-yellowing)

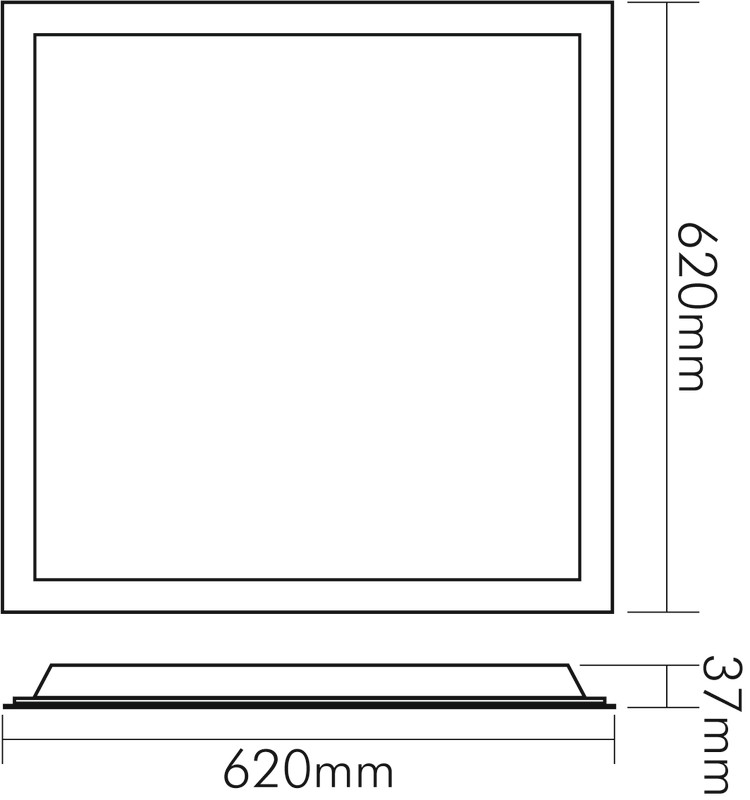

Dimensions (LxWxH): 620x620x30 mm

Colour rendering index Ra: 82

Colour distance (MacAdam): 3 SDCM

Life time: 50.000 h (L80 B10)

LED driver: not included

Dimming: Led driver dependent

Recommendation LED driver:

Part no. 8970100410 EL-40-1050 D dim C IP42, dimmable with trailing edge

Part no. 8970421052 EL-42-1050 DS non dim, non dimmable

Part no. 8970451070 EL-45-1050 dim Dali

Part no. 8970441050 EL-44-1050 dim 1-10V

Part no. 8980410010 EL-40 Uni 350-1050 dim 1-10V

Part no. 8980420350 EL-40 Uni 350-1050 dim Dali
