LED Coupole 160 R 12W matt white 830 350mA

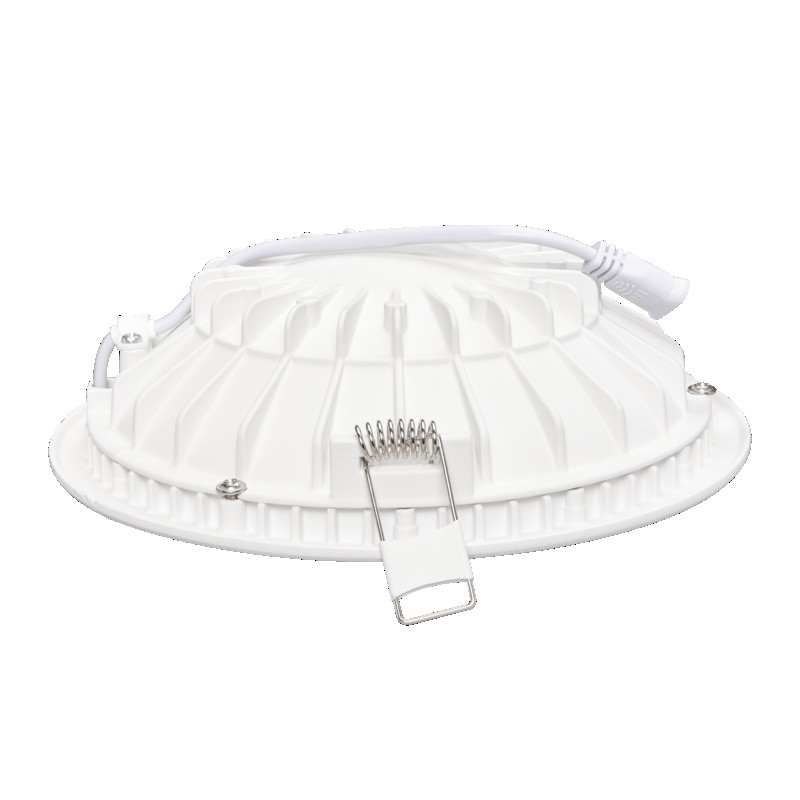

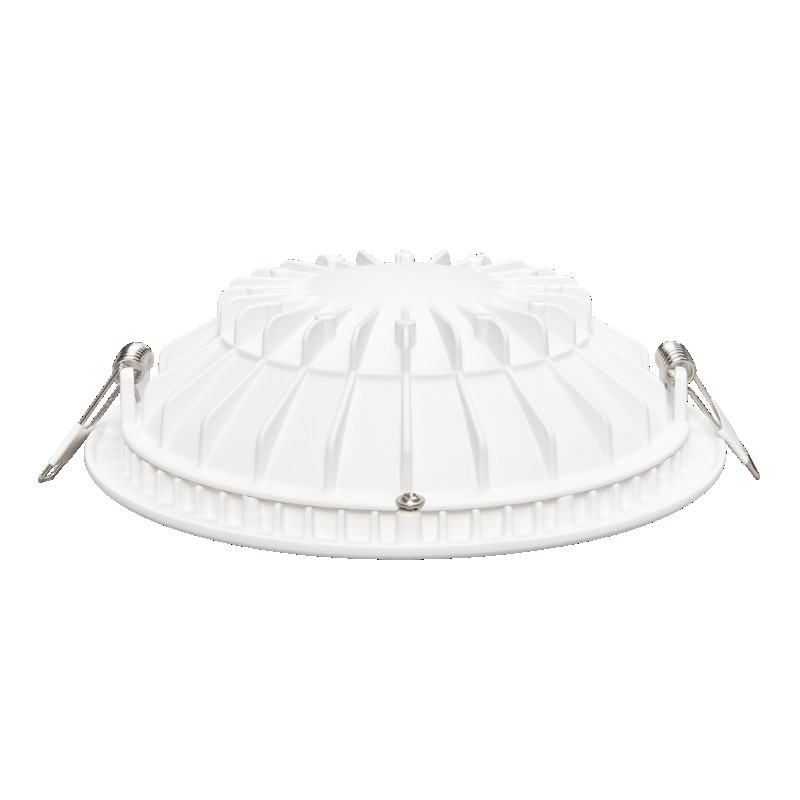

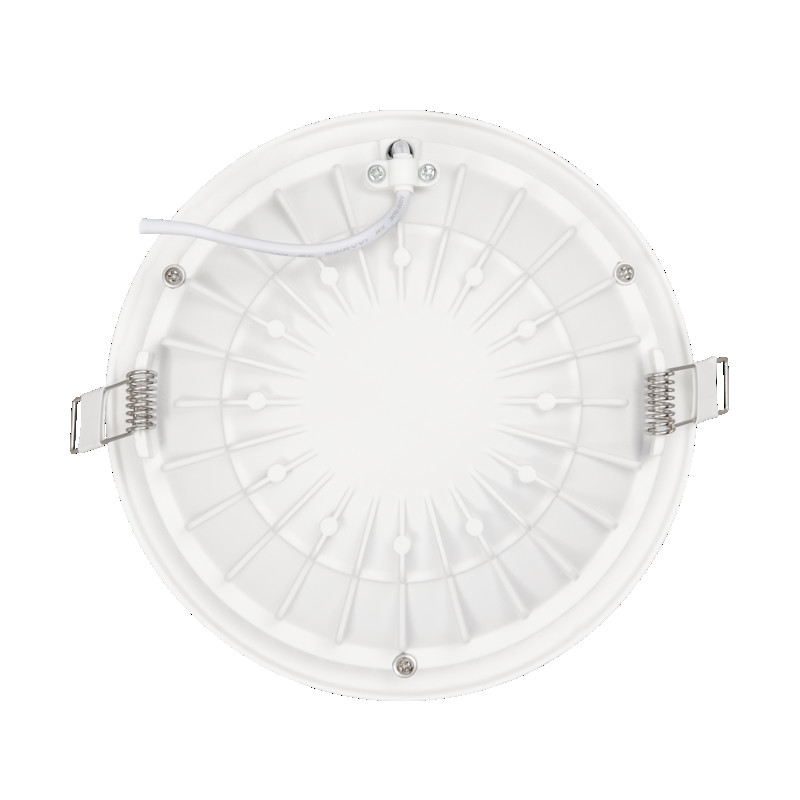

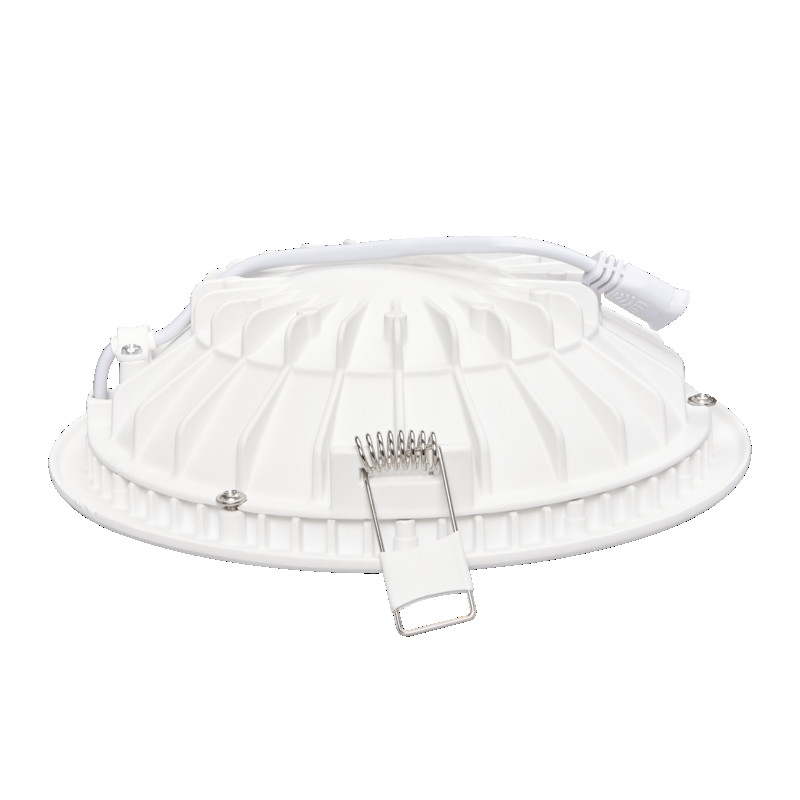

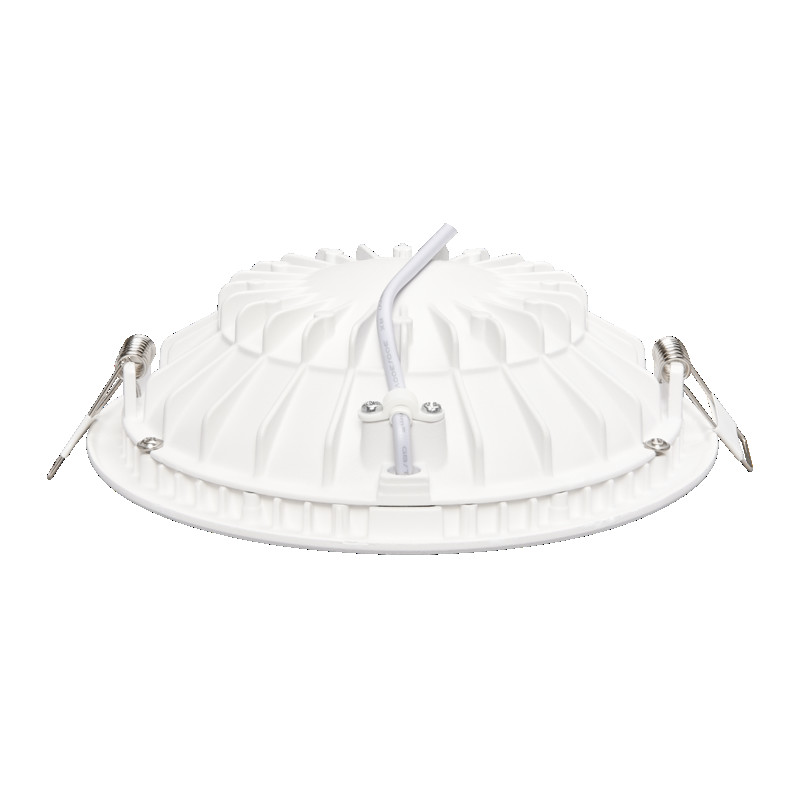

LED Coupole 160 R

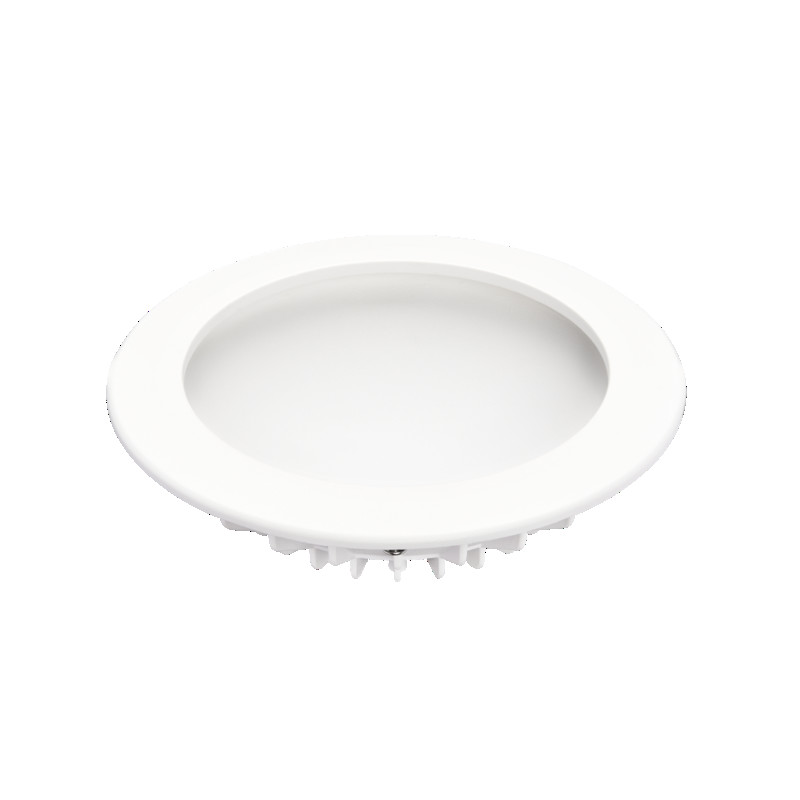

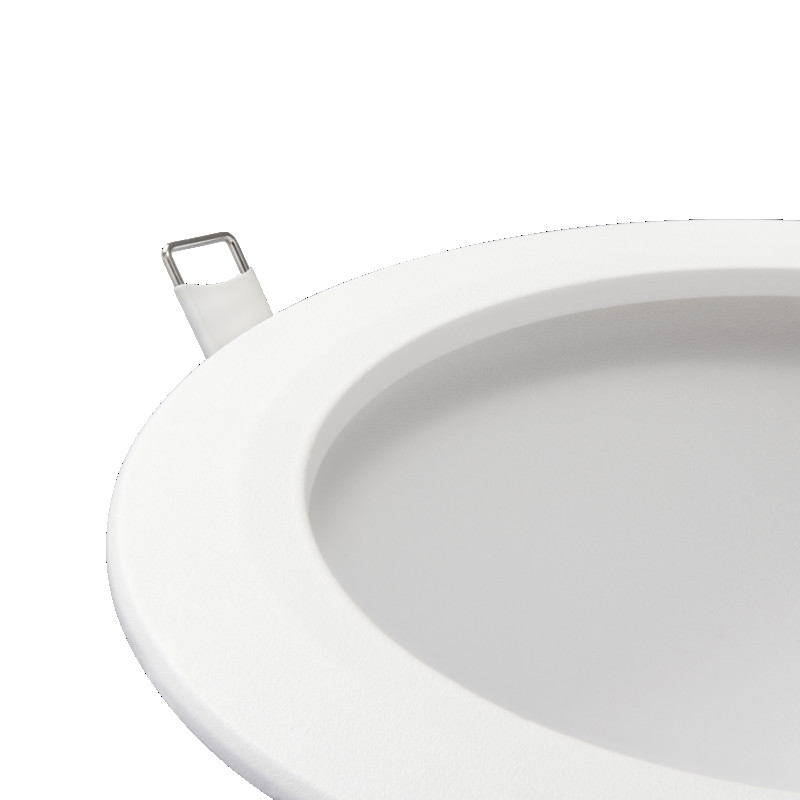

The unique LED recessed luminaire with a special design: the indirect light of the coupole is effectively reflected into the room by the surface of the inwardly curved dome with virtually no glare, thus ensuring pleasant, uniform room lighting. The LEDs are located at the edge of the dome interior.
Material: aluminium
Dimensions (ØxH): 164x48 mm
Colour rendering index Ra: 80
Colour distance (MacAdam): 3 SDCM
Life time: 50.000 h (L80 B10)
LED driver: not included
Dimmimg: LED driver dependent
Recommendation LED driver:
Part no. 8990153510 EL-15-350 non dim, non dimmable
Part no. 8990153500 EL-15-350 D dim C, dimmable with trailing edge
weniger lesen
Technical Data
-
Protection specifications
Covering of the luminaire with thermally insulating material possible no CE-Conformity yes RoHS yes Protection class III Degree of protection IP20 Impact strength IK00 Thermal insulation mark yes Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes Installation note [flammable materials] recessed luminaire suitable for direct mounting on normal flammable surfaces Installation in insulated ceilings, fire protection 'F with roof' no Note ensure constant convection and do not cover by insulation material - Temperature specifications
Ambient temperature [Ta [°C] 0 - 40 - Other specifications
Type of luminaire panel luminaire Mounting method recessed-mounted Suitable for general lighting yes Suitable for recessed wall installation yes Suitable for wall mounting no Suitable for suspended mounting no Suitable for light line configuration no Operation by Bluetooth no Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Kind of disposal at the end of the life time specific collection points, please consider the local regulations Reflector without Adjustable version no - Product contents
With light source yes Including LED driver no Cable suspension supplied with the product no - Technical lighting specifications
Light cone Extreme wide beam >80° Colour temperature [K] 3000 Colour of light warm white Total luminous flux [lm] 880 Beam angle [°] 120 Colour consistency (MacAdam) [SDCM] 3 Colour rendering index Ra 80 Colour rendering index R9 6 Fit for monitor workplace acc. EN 12464-1 no Light distributor Diffuser L80B10 - life time at 25 °C [h] 50000 L70B50 - life time at 25°C [h] 50000 Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 80 Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 10 Colour controllable (RGB) no Constant light output (CLO) no Light sharing symmetric Light outlet direct Lamp type SMD-LED Suitable for number of lamps 1 - Dimensions and weight
Diameter [mm] 164 Height [mm] 48 Weight [g] 220 Ceiling cut-out [diameter] [mm] 150 Built-in depth [mm] 50 Light portal opening [mm] 125 - Material and colour
Material aluminium Colour matt white - Electrical specifications
Type of LED driver LED driver Lamp power [W] 12 Rated voltage of luminaire [DC] [V] 36 Constant current [mA] 350 Lamp holder other Wire cross section CCV male plug (+ CCV female plug with open cable ends) Dimmable yes Type of dimming Led driver dependent Through-wiring possible yes Electrical connection with connector system yes
