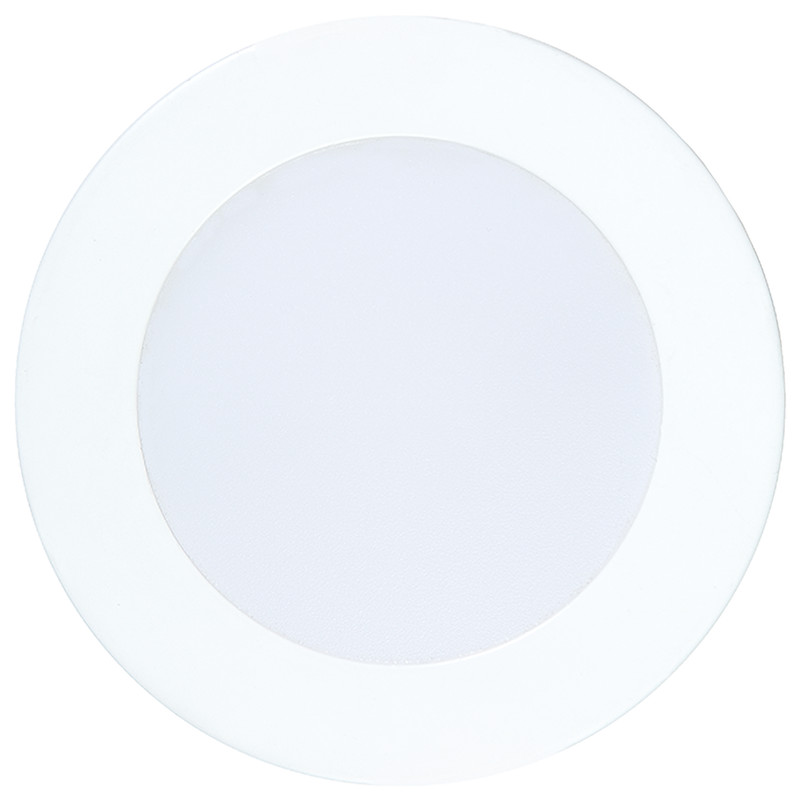

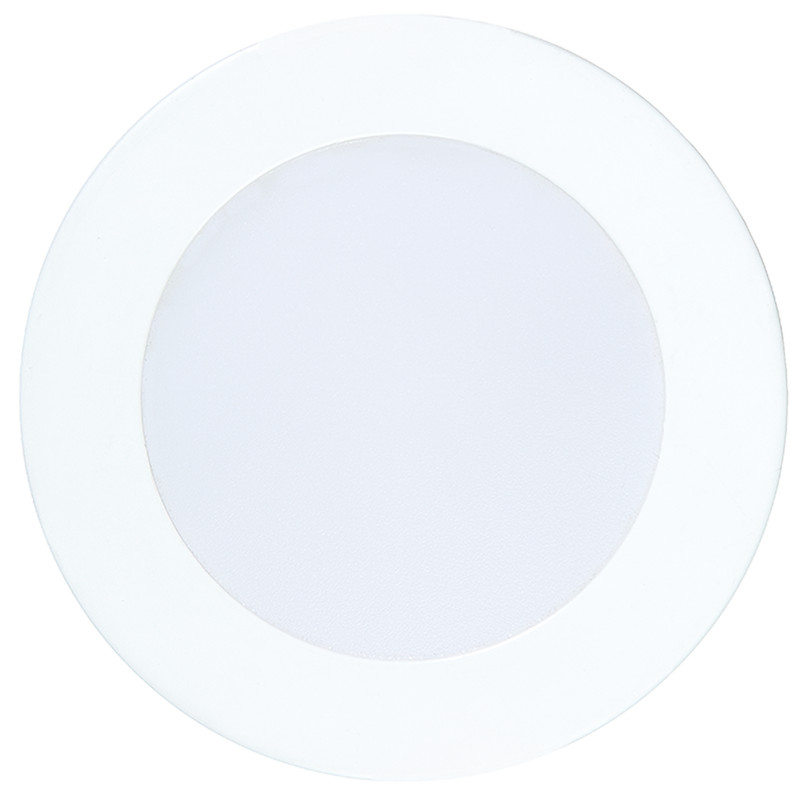

LED Panel Flat 50 R IP44 white 5W 840 350mA
EAN: 4044538067100
Even LED-light-distribution throughout the entire emitting surface.

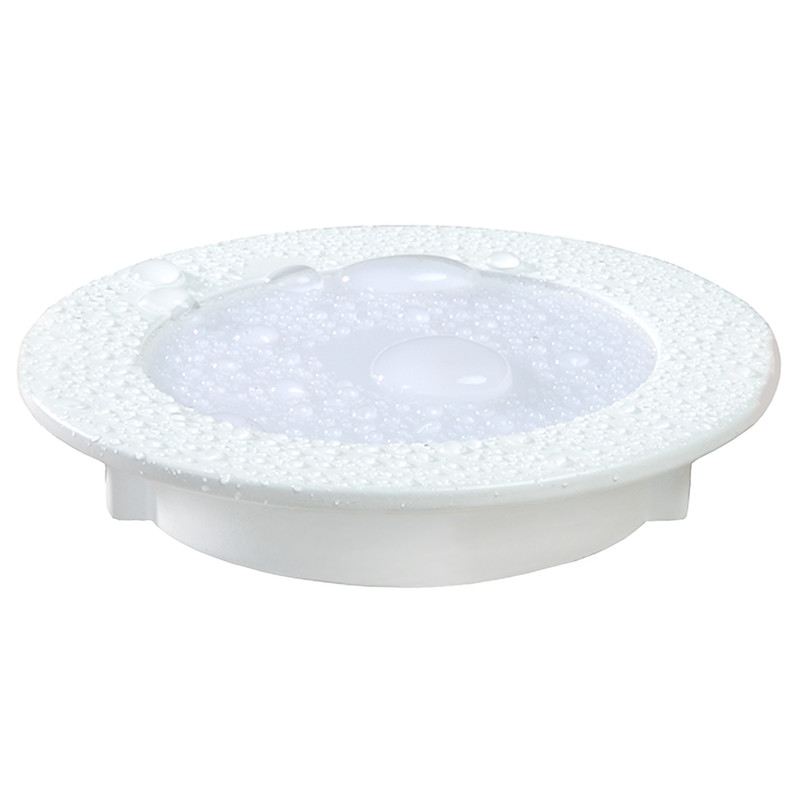

IP44 is at recess ceiling installation.
Material: aluminium/steel white painted/diffuser and light guide made of PMMA (non-yellowing)

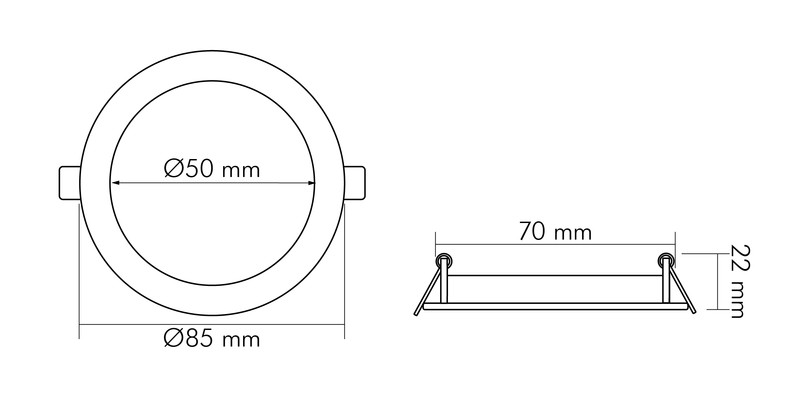

Dimensions (ØxH): 85x22 mm
Colour rendering index Ra: 80
Colour distance (MacAdam): 3 SDCM
Life time: 50.000 h (L80 B10)
LED driver: not included
Dimmimg: LED driver dependent
Recommendation LED driver:
Part no. 8999028352 EL-8R-350 non dim CCV female connector, non dimmable
Part no. 8999028351 EL-8R-350 D dim C CCV female connector, dimmable with trailing edge
Betriebsgerätempfehlung:
Art.-Nr. 8999028351 EL-8R-350 D (C) dimmbar mit Phasenabschnittsdimmer/CCV Buchse
Art.-Nr. 8999028352 EL-8R-350 nicht dimmbar/CCV Buchse
Betriebsgerät: nicht inklusive
Dimmung: Betriebsgerätabhängig
Material: Aluminium/Stahl weiß lackiert/Diffusorscheibe und Lightguide aus PMMA (vergilbungsfrei)
Abmessungen (ØxH): 84x22 mm; Lichtaustrittsöffnung (Ø): 50 mm
Farbtemperatur: ca. 3000 K (warmweiß); ca. 4000 K (neutralweiß)
Farbwiedergabe: Ra >80; Farbabstand (MacAdam): <3 SDCM
Bemessungslebensdauer: L80/B10 50.000 h
weniger lesen
Technical Data
-
Protection specifications
Covering of the luminaire with thermally insulating material possible no CE-Conformity yes RoHS yes Protection class III Degree of protection IP44 front-facing Impact strength IK00 Thermal insulation mark yes Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes Installation note [flammable materials] recessed luminaire suitable for direct mounting on normal flammable surfaces Installation in insulated ceilings, fire protection 'F with roof' no Note ensure constant convection and do not cover by insulation material - Temperature specifications
Ambient temperature [Ta [°C] 0 - 25 - Other specifications
Type of luminaire panel luminaire Mounting method recessed-mounted Suitable for general lighting yes Suitable for recessed wall installation yes Suitable for wall mounting yes Suitable for suspended mounting no Suitable for built-in mounting yes Suitable for ceiling mounting yes Suitable for surface mounting no Suitable for light line configuration no Operation by Bluetooth no Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Kind of disposal at the end of the life time specific collection points, please consider the local regulations Reflector without Adjustable version no - Product contents
With light source yes Including LED driver no Cable suspension supplied with the product no - Technical lighting specifications
Light cone Open beam/diffuse Colour temperature [K] 4000 Colour of light neutral white Total luminous flux [lm] 430 Beam angle [°] 120 Colour consistency (MacAdam) [SDCM] 3 Colour rendering index Ra 80 Colour rendering index R9 10 Fit for monitor workplace acc. EN 12464-1 no Peak luminous intensity [cd] 150 Light distributor Diffuser L80B10 - life time at 25 °C [h] 50000 L70B50 - life time at 25°C [h] 50000 Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 80 Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 10 Colour controllable (RGB) no Total lumen setting adjustable no Colour temperature adjustable no Constant light output (CLO) no Light source replaceable no Light sharing symmetric Light outlet direct Lamp type SMD-LED Suitable for number of lamps 1 - Dimensions and weight
Length [mm] 85 Width [mm] 85 Diameter [mm] 85 Height [mm] 22 Weight [g] 50 Ceiling cut-out [diameter] [mm] 70 Built-in depth [mm] 25 Light portal opening [mm] 50 - Material and colour
Material aluminium/steel/PMMA diffuser Colour white - Electrical specifications
Lamp power [W] 5 Rated voltage of luminaire [DC] [V] 15 Constant current [mA] 350 Lamp holder without Type of wiring Ending Wire cross section jack plug system with open cable ends Exchangeable LED driver no Dimmable yes Type of dimming Led driver dependent LED driver LED operating device current-controlled Electrical connection with connector system yes
