LED Panel Flat 175 R IP44 350mA

LED Panel Flat 175 round
Article Choice

Even LED-light-distribution throughout the entire emitting surface.

IP44 is at recess ceiling installation.

LED driver: not included

Dimmimg: LED driver dependent

Material: aluminium/steel white painted/diffuser and light guide made of PMMA (non-yellowing)

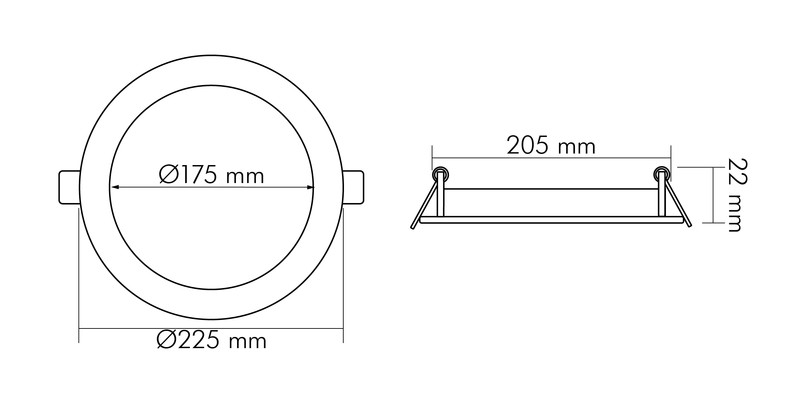

Dimensions (ØxH):225x22 mm

Colour rendering index Ra: 80; Colour distance (MacAdam): 3 SDCM

Life time: 50.000 h (L80 B10)

Recommendation LED driver:

Part no. 8990153510 EL-15-350 non dim, non dimmable

Part no. 8990153500 EL-15-350 D dim C, dimmable with trailing edge

weniger lesen
mehr lesen

Downloads

MontageanleitungMontageanleitung
Lichttechnische Daten (EULUMDAT)Lichttechnische Daten (EULUMDAT)
Lichttechnische Daten (EULUMDAT)Lichttechnische Daten (EULUMDAT)
ProduktdatenblattProduktdatenblatt
ProduktdatenblattProduktdatenblatt
