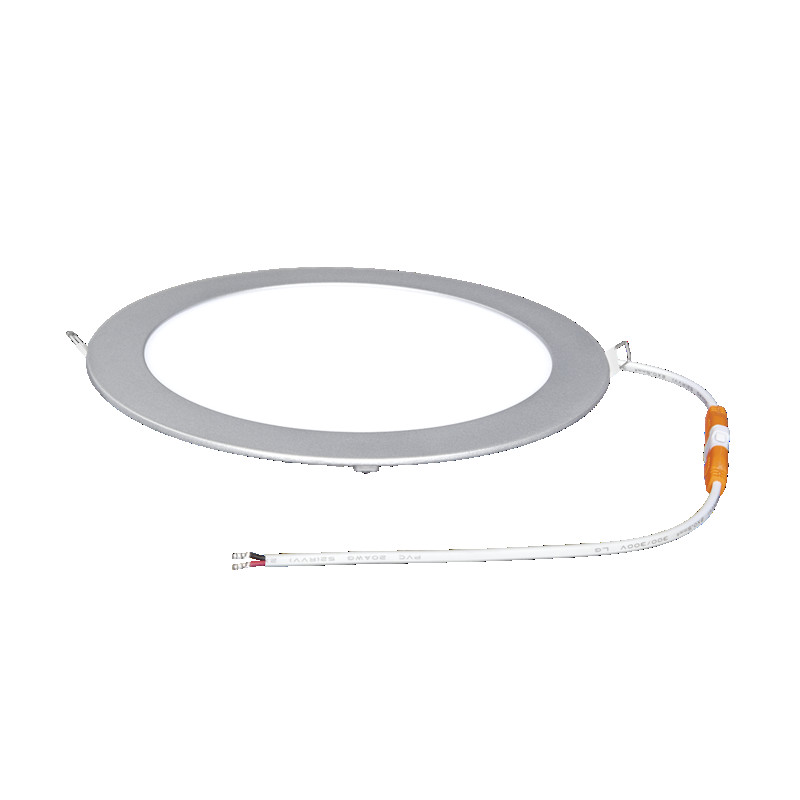

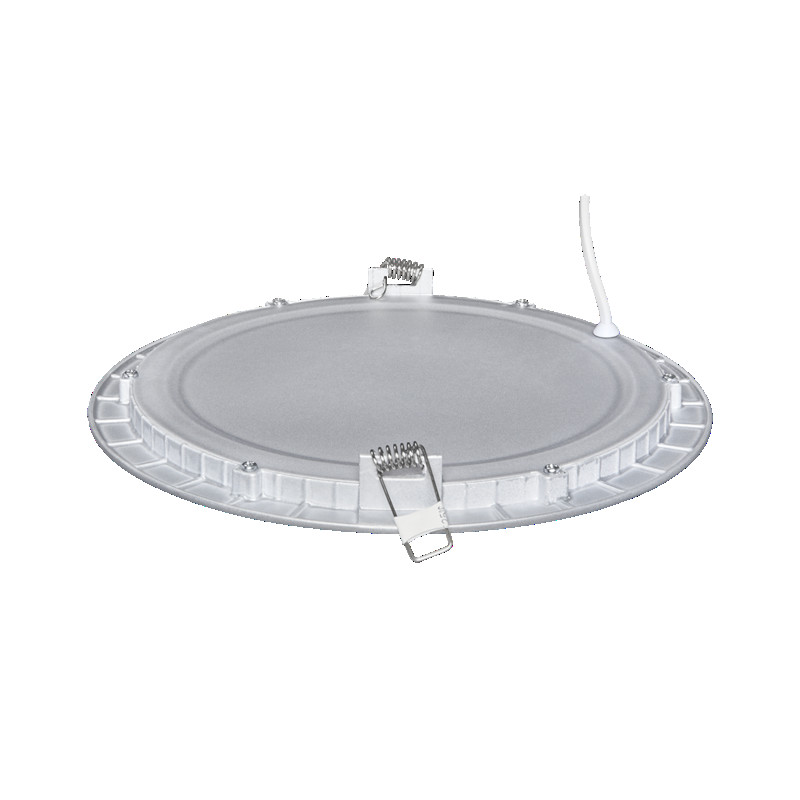

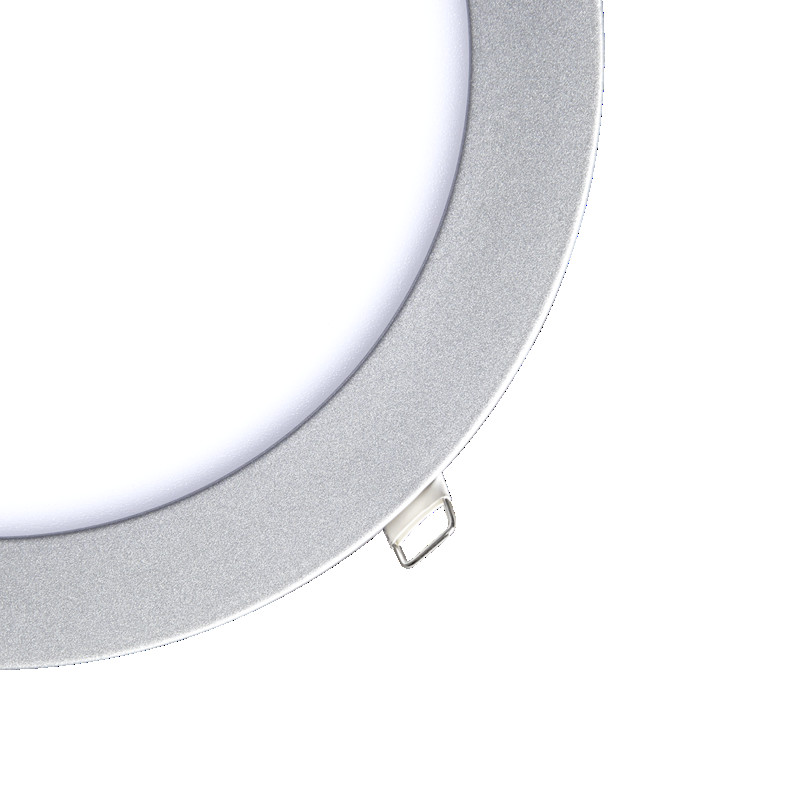

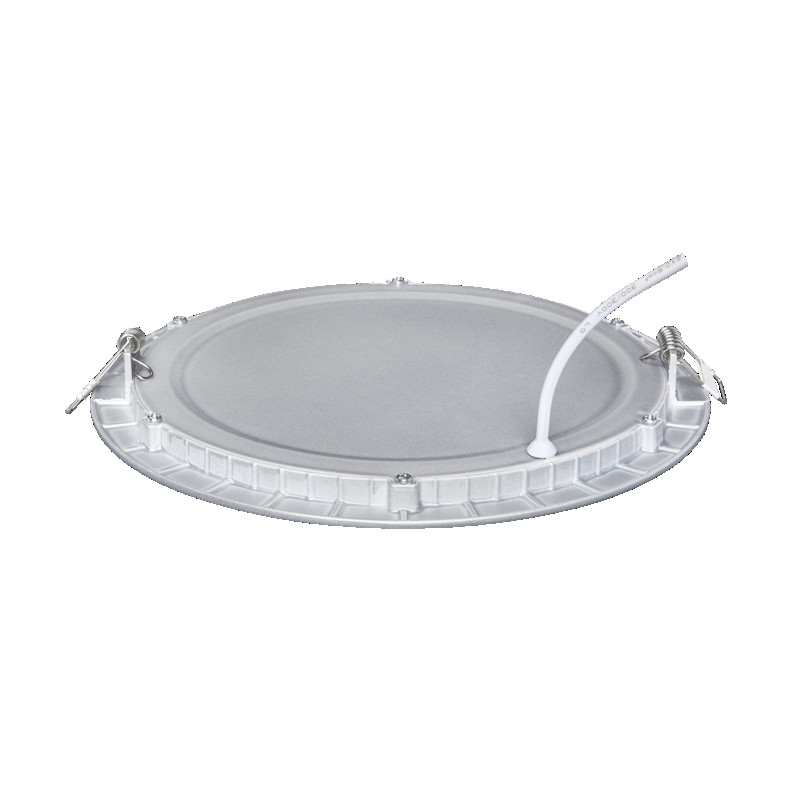

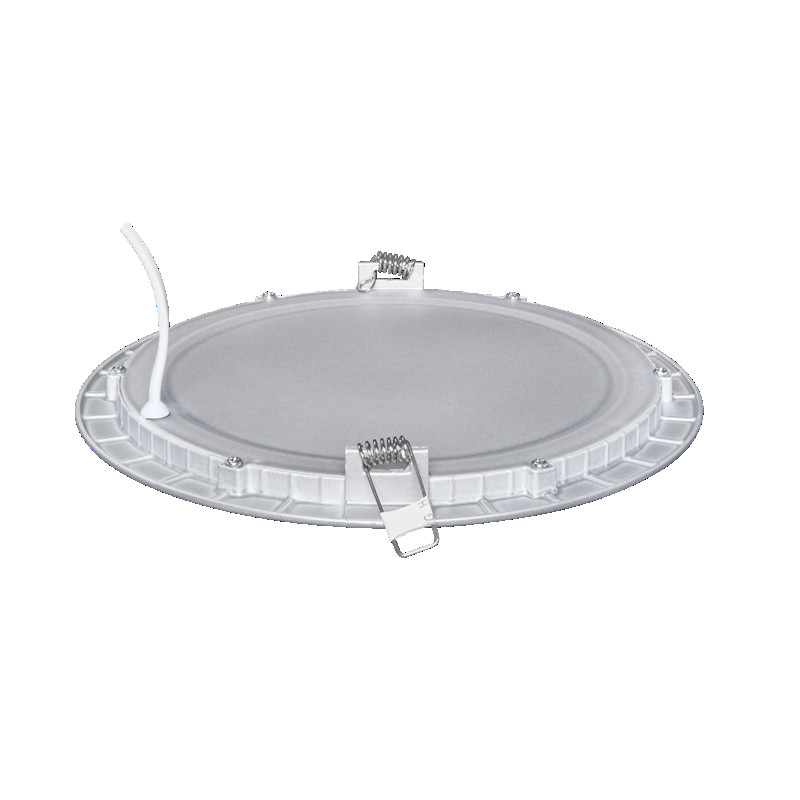

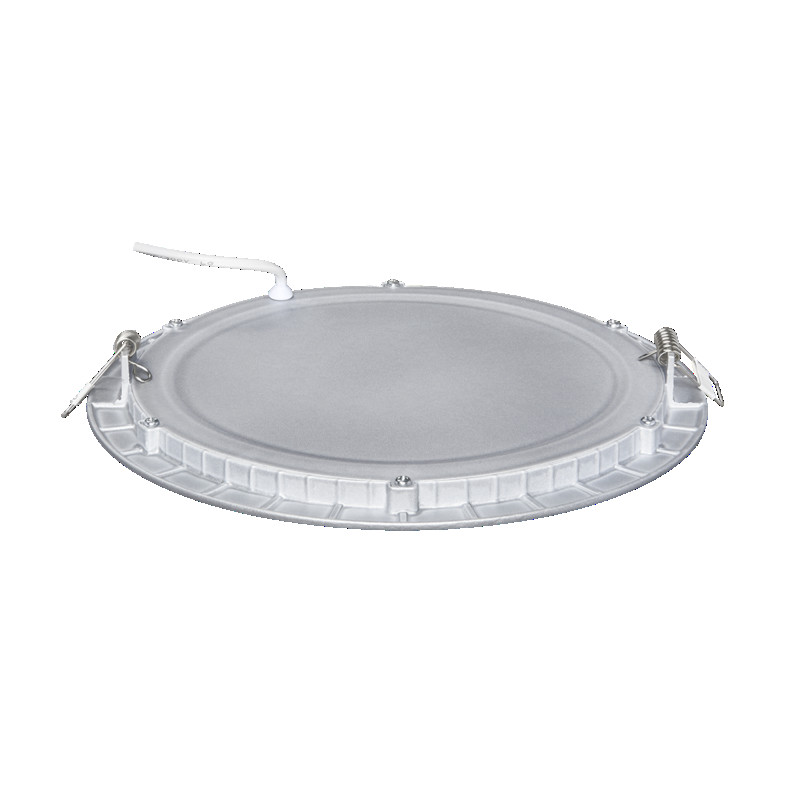

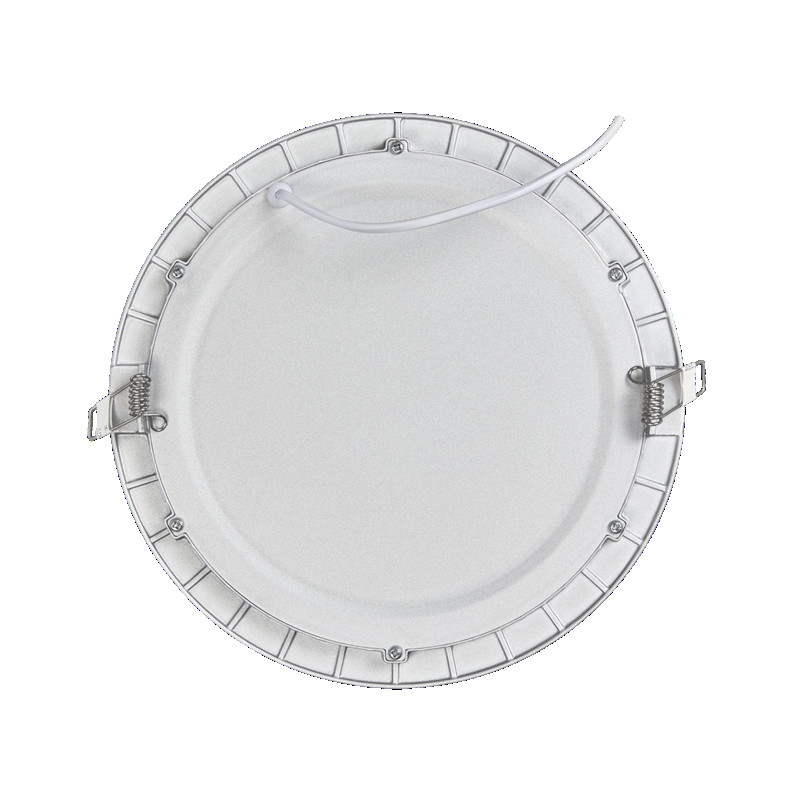

LED Panel Flat 190 R matt titanium 15W 840 350mA
LED Panel Flat 190 R round
Even LED light distribution throughout the entire emitting surface.
LED driver: not included
Dimmable: LED driver dependent
Material: aluminium/diffuser and light guide made of PMMA (non-yellowing)
Dimensions (ØxH): 225x22 mm
Colour rendering index Ra: 80; Colour distance (MacAdam): 3 SDCM
Life time: 50.000 h (L80 B10)
Recommendation LED driver:
Part no. 8990153510 EL-15-350 non dim, non dimmable
Part no. 8990153500 EL-15-350 D dim C, dimmable with trailing edge
weniger lesen
Technical Data
-
Protection specifications
Covering of the luminaire with thermally insulating material possible no CE-Conformity yes RoHS yes LVD Standard EN 60598-1:2015; EN 60598-2-2:2012; EN 62471:2008 Protection class III Degree of protection IP20 Impact strength IK00 Thermal insulation mark yes Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes Installation note [flammable materials] recessed luminaire suitable for direct mounting on normal flammable surfaces Installation in insulated ceilings, fire protection 'F with roof' no Note ensure constant convection and do not cover by insulation material - Temperature specifications
Ambient temperature [Ta] [°C] 0 - 25 - Other specifications
Type of luminaire panel luminaire Mounting method recessed-mounted Suitable for general lighting yes Suitable for recessed wall installation yes Suitable for wall mounting yes Suitable for suspended mounting no Suitable for built-in mounting yes Suitable for ceiling mounting yes Suitable for surface mounting no Suitable for light line configuration no Operation by Bluetooth no Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Kind of disposal at the end of the life time specific collection points, please consider the local regulations Reflector without Adjustable version no - Product contents
With light source yes Including LED driver no Cable suspension supplied with the product no - Technical lighting specifications
Light cone Open beam/diffuse Colour temperature [K] 4000 Colour of light neutral white LED efficiency [lm/W] 94 Total luminous flux [lm] 1500 Beam angle [°] 120 Colour consistency [MacAdam] [SDCM] 3 Colour rendering index Ra 80 Colour rendering index R9 8 Fit for monitor workplace acc. EN 12464-1 no Peak luminous intensity [cd] 500 Light distributor Diffuser L80B10 - life time at 25 °C [h] 50000 L70B50 - life time at 25°C [h] 50000 Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 80 Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 10 Colour controllable (RGB) no Total lumen setting adjustable no Colour temperature adjustable no Constant light output (CLO) no Light source replaceable no Luminaire lighting surface opal Light input sidelit Light sharing symmetric Light outlet direct Diffuser yes Lamp type SMD-LED Suitable for number of lamps 1 Minimum distance per luminaire [m] 0,05 - Material and colour
Material housing aluminium/steel sheet Colour housing matt titanium Surface of the housing painted Surface finish texture housing matt Material diffuser PMMA Diffuser surface opal - Dimensions and weight
Length [mm] 225 Width [mm] 225 Diameter [mm] 225 Height [mm] 22 Weight [g] 345 Light portal opening [diamter] [mm] 175 Ceiling cut-out [diameter] [mm] 205 Built-in depth [mm] 25 - Electrical specifications
Lamp power [W] 15 Nominal current of luminaire [mA] 350 Rated voltage of luminaire [DC] [V] 43 Constant current [mA] 350 Lamp holder without Type of wiring Ending Wire cross section jack plug system with open cable ends Length of cable [luminaire] [cm] 40 Cable cross section [luminaire] [mm²] 0,33 Exchangeable LED driver no Dimmable yes Type of dimming Led driver dependent LED driver LED operating device current-controlled Electrical connection with connector system yes
