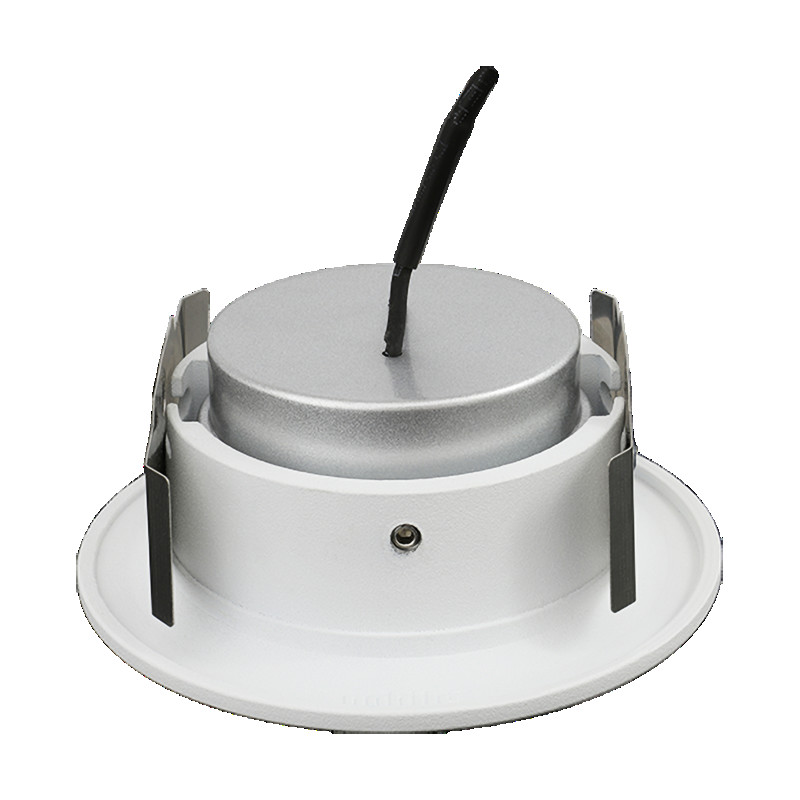

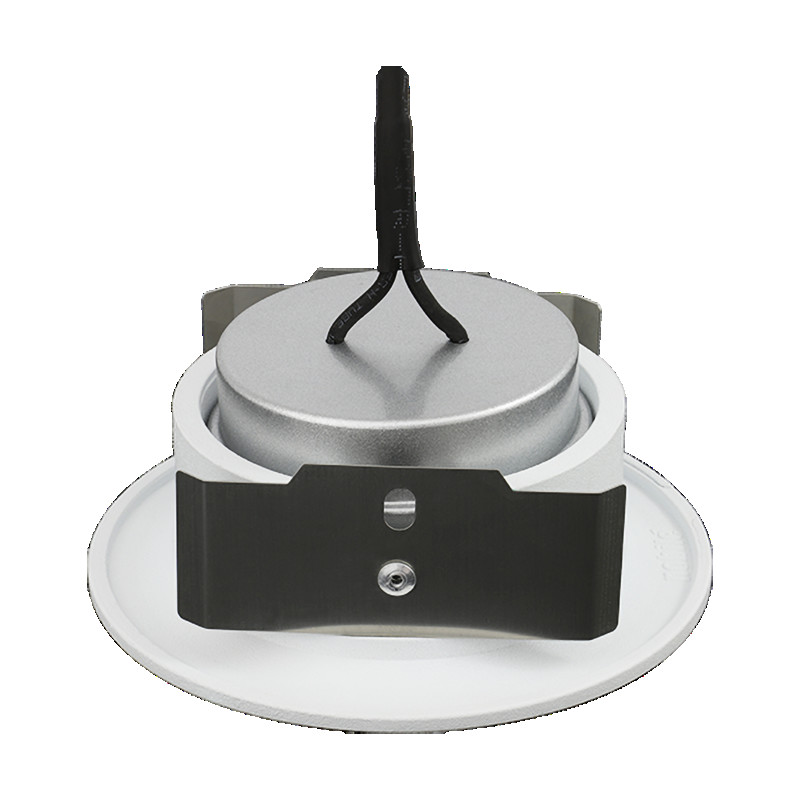

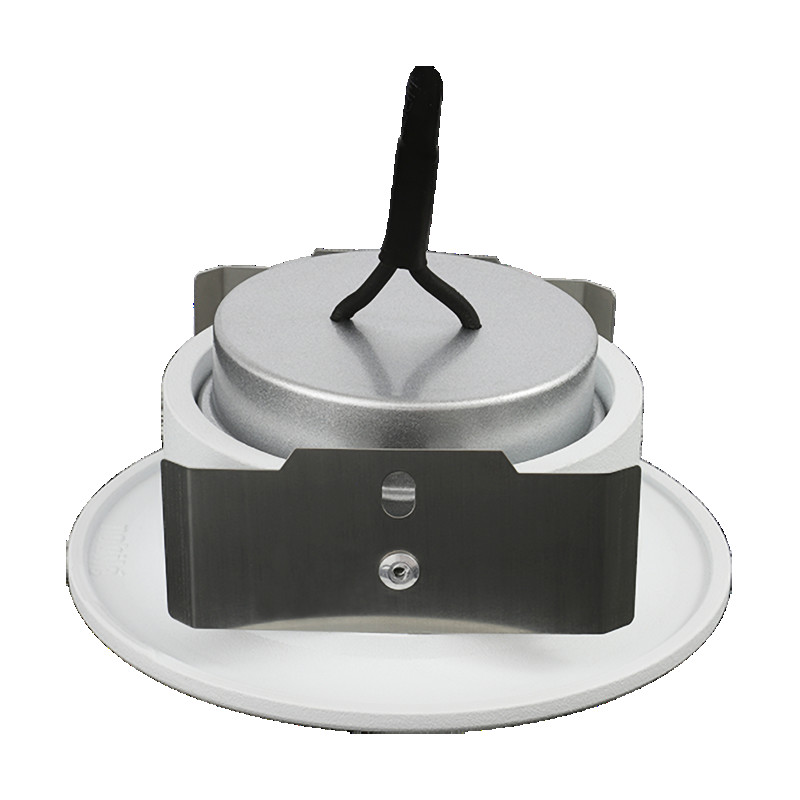

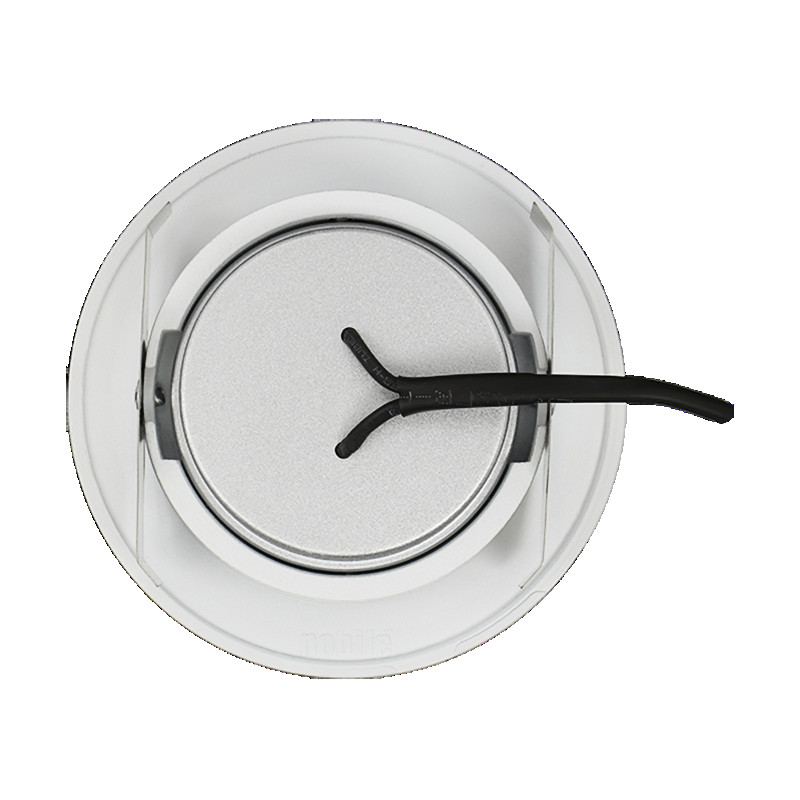

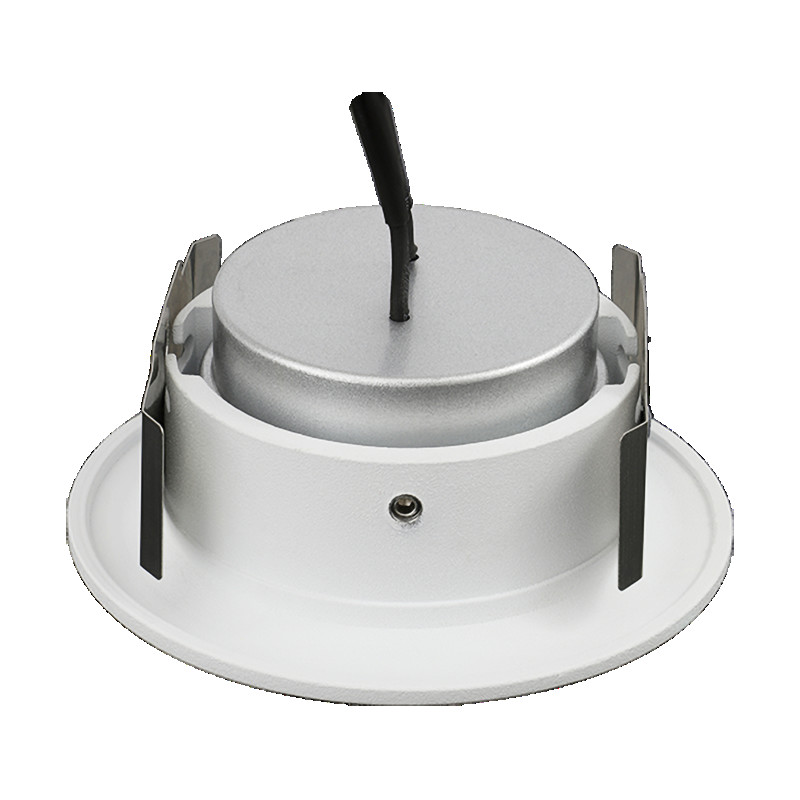

5068 ECO Flat anti-glare 8W white 930 24° 350mA
EAN: 4044538064284
For use in spot and general lighting.
Ideal problem solver for ceilings with low installation depth
Aluminum heat sink
The luminaire is only suitable for installation in false ceilings. Installed downlight must not be covered by insulation material. Ensure constant convection.
Installation housing: the LED Downlight can generally be installed in all standard housings for the installation in concrete ceilings; specially tested are the housings from KAISER: HaloX® 100 with tunnel 190 (Type 1281-30) + Front section, i. e. type 1281-11/HaloX® 180 with tunnel 190 (Type 1282-72/1282-75)
Material: die-cast aluminium
Surface: painted
Suitable for ceiling cut-out: 68 mm
Colour rendering index Ra: 90
Colour distance (MacAdam): 3 SDCM
Life time: 50.000 h (L80 B10)
Recommendation LED driver:
Part no. 8999038350 EL-8R-350 non dim, non dimmable
Part no. 8999028350 EL-8R-350 D dim C, dimmable with trailing edge
weniger lesen
Technical Data
-
Protection specifications
Covering of the luminaire with thermally insulating material possible no CE-Conformity yes RoHS yes LVD Standard EN 60598-1:2015; EN 60598-2-2:2012; EN 62471:2008 Protection class III Degree of protection IP40 Impact strength IK00 Thermal insulation mark yes Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes Installation note [flammable materials] flammable materials Installation in insulated ceilings, fire protection 'F with roof' yes Note ensure constant convection and do not cover by insulation material - Temperature specifications
Ambient temperature [Ta [°C] 0 - 25 - Material and colour
Material housing die-cast aluminium Colour housing matt white Surface of the housing painted Heat sink yes Material of Heat sink aluminium - Product contents
With light source yes Including LED driver no - Technical lighting specifications
Light cone Medium beam 21-40° Colour temperature [K] 3000 Colour of light warm white LED efficiency [lm/W] 101 Total luminous flux [lm] 870 Beam angle [°] 24 Colour consistency (MacAdam) [SDCM] 3 Colour rendering index Ra 90 Colour rendering index R9 56 Fit for monitor workplace acc. EN 12464-1 no Peak luminous intensity [cd] 2750 Light distributor Diffuser L80B10 - life time at 25 °C [h] 50000 L70B50 - life time at 25°C [h] 50000 Colour controllable (RGB) no Total lumen setting adjustable no Colour temperature adjustable no Light source replaceable no Light sharing symmetric Light outlet direct Lens optical lens Lamp type COB LED Suitable for number of lamps 1 - Dimensions and weight

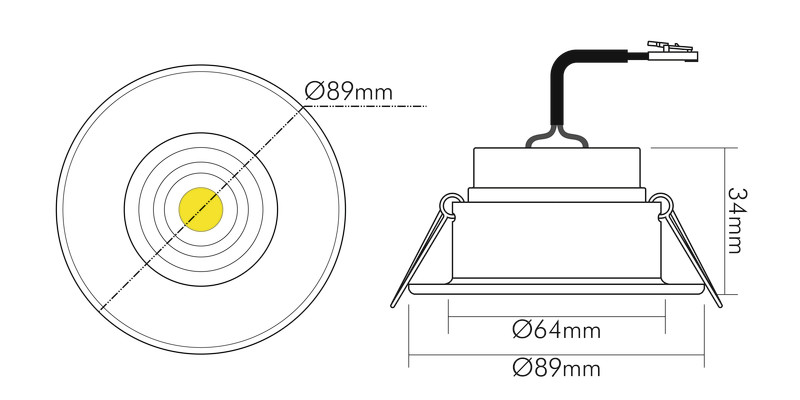

Length [mm] 89 Width [mm] 89 Diameter [mm] 89 Height [mm] 36 Weight [g] 155 Light portal opening [diamter] [mm] 48 Ceiling cut-out [diameter] [mm] 68 Built-in depth [mm] 41 - Other specifications
Operation by Bluetooth no Adjustability Not adjustable Mounting method recessed-mounted Suitable for general lighting yes Suitable for recessed wall installation no Suitable for wall mounting no Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Kind of disposal at the end of the life time specific collection points, please consider the local regulations Reflector without Suitable for lighting accessories no Adjustable version no - Electrical specifications
Type of LED driver LED operating device current-controlled Lamp power [W] 8 Constant current [mA] 350 Lamp holder without Type of wiring Ending Wire cross section 20 cm connecting cable with reverse polarity protected and Mini AMP plug-system 2-pole Exchangeable LED driver yes Dimmable yes Type of dimming Led driver dependent Through-wiring possible yes Forward voltage drop (DC) [V] 22,8 Electrical connection with connector system yes
