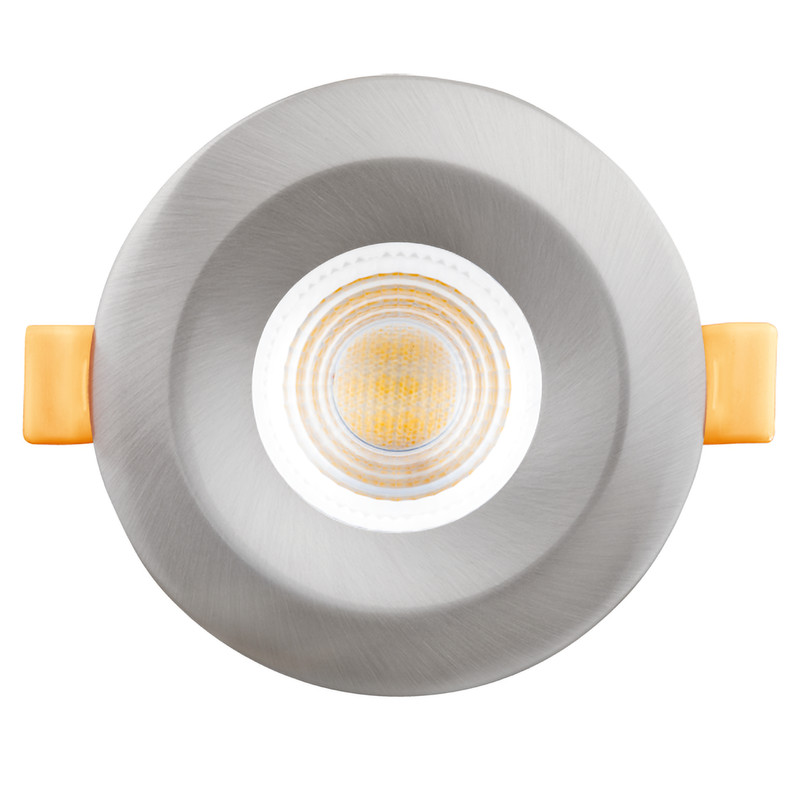

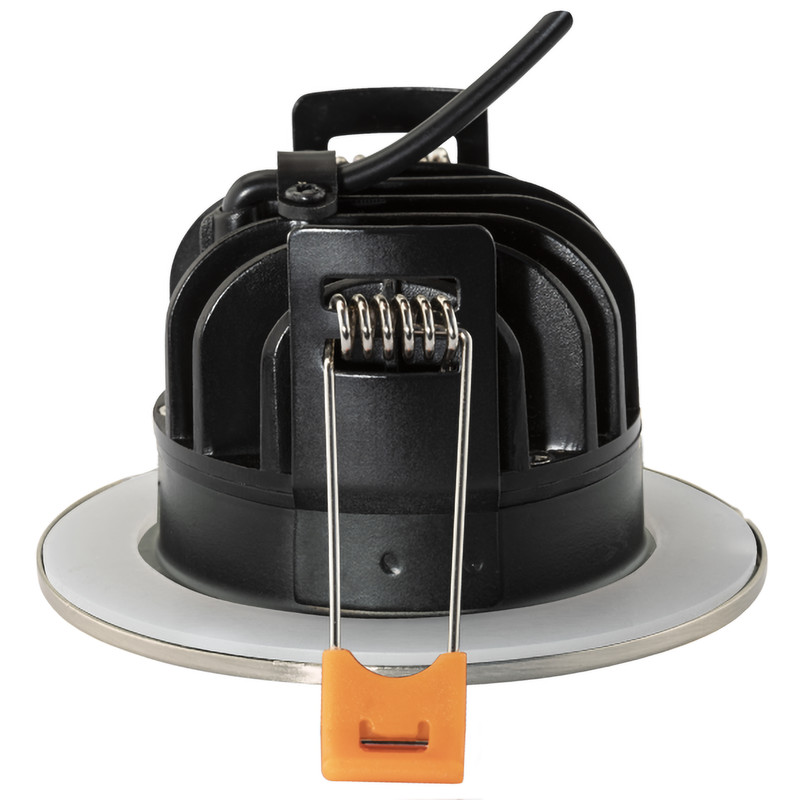

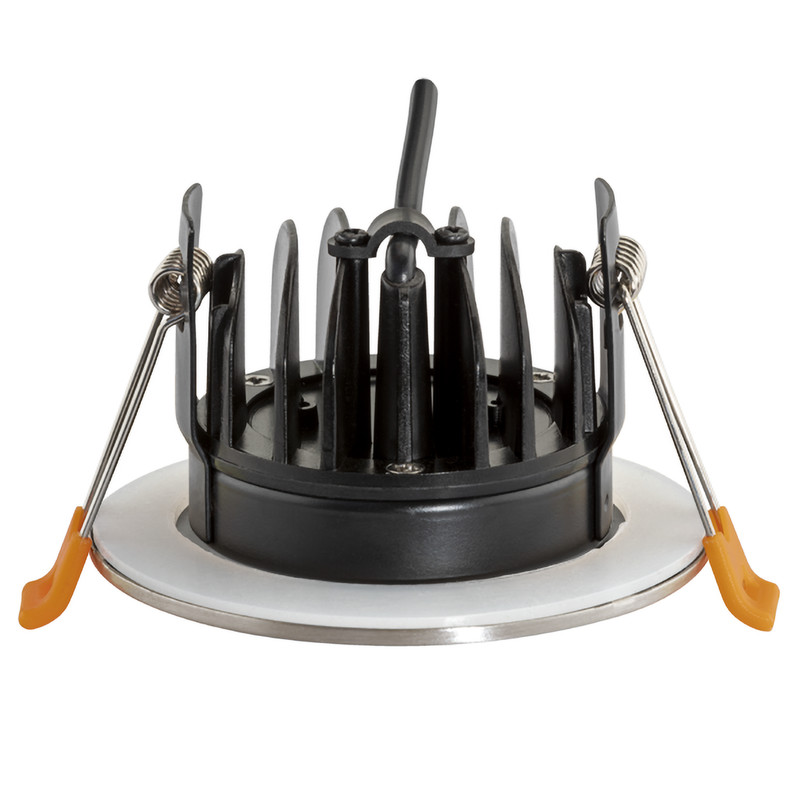

LED Spot 68 FP 6,6W brus. ni. 840 38° IP65 350mA
Fire protection has become more demanding not only in commercial or public buildings, but also in one's own four walls, a safe feeling is an important aspect.
The solution to this problem? Here it is: chic in design, original thanks to different housing colours and therefore adaptable, functional thanks to installation in standard ceiling cut-outs of 68 mm - this is how the innovative downlight from nobilé for fire protection applications (up to 90 minutes, BS 476-21:1987 corresponds to the standard DIN EN 1365-2:2014).
When installing, ensure a minimum of convection and do not cover with insulating material.
Areas of application:
From the hotel to the museum and even more important: your own four walls - the use indoors and outdoors is on top, thanks to IP65.
Material: Aluminium
Surface: powder coated or galvanized
Lens: optical lens
Colour rendering index Ra: 80
Color Distance (MacAdam): 3 SDCM
Life time: 25.000 h (L70 B50)
Recommendation LED driver: EL-350mA CC series
weniger lesen
Technical Data
-
Protection specifications
Covering of the luminaire with thermally insulating material possible no Fire resistance class F90 CE-Conformity yes RoHS yes LVD Standard EN 60598-1:2015; EN 60598-2-2:2012; BS 476-21:1987 identical to EN 1365-2:2014; EN 62321-5:2014; EN 62321-62015; EN 62321-7-1: 2015; EN 62321-7-2:2017; EN 62321-8:2017 Protection class III Degree of protection IP65 front-facing Impact strength IK00 Photobiological safety according to EN 62471 RG1 Thermal insulation mark yes Installation, electrical engineering expertise yes Only for indoor use no Furniture installation, fire protection 'MM' yes Installation in insulated ceilings, fire protection 'F with roof' yes Note ensure constant convection and do not cover by insulation material - Temperature specifications
Ambient temperature [Ta [°C] 0 - 25 - Product contents
With light source yes Including LED driver no - Technical lighting specifications
Light cone Medium beam 21-40° Colour temperature [K] 4000 Colour of light neutral white LED efficiency [lm/W] 111 Total luminous flux [lm] 820 Beam angle [°] 38 Colour consistency (MacAdam) [SDCM] 3 Colour rendering index Ra 80 Fit for monitor workplace acc. EN 12464-1 no Peak luminous intensity [cd] 832 Light distributor Diffuser L70B50 - life time at 25°C [h] 25000 Colour controllable (RGB) no Light source replaceable no Light sharing symmetric Light outlet direct Lens optical lens Lamp type SMD-LED Suitable for number of lamps 1 - Dimensions and weight
Length [mm] 90 Width [mm] 90 Diameter [mm] 90 Height [mm] 50 Weight [g] 205 Light portal opening [diamter] [mm] 41 Ceiling cut-out [diameter] [mm] 68 Built-in depth [mm] 50 - Material and colour
Material housing aluminium Colour brushed nickel Surface finishing galvanized - Other specifications
Operation by Bluetooth no Adjustability Not adjustable Type of luminaire recessed luminaire Mounting method recessed-mounted Suitable for general lighting yes Suitable for recessed wall installation no Suitable for wall mounting no Suitable for built-in mounting yes Kind of disposal at the end of the life time specific collection points, please consider the local regulations Suitable for lighting accessories no Ceiling fixing with mounting springs - Electrical specifications
Type of LED driver LED driver Lamp power [W] 6,6 Nominal current of luminaire [mA] 350 Constant current [mA] 350 Lamp holder without Wire cross section CCV-AMP plug (male)/CCV-AMP plug (female) with free, stripped wire ends Cable conductor quantity 2 Length of cable [luminaire] [cm] 25 Cable cross section [luminaire] [mm²] 0,34 Exchangeable LED driver yes Dimmable yes Type of dimming Led driver dependent Nominal voltage [V] 18 Electrical connection with connector system yes
