LED Panel R2S UGR<19 white 38W 830 dim 1-10V
LED Panel for easy and rapid installation
SKU:
1570801248
EAN: 4044538064239
EAN: 4044538064239
The powerful built-in solution for standard modular ceilings 625 are especially qualified for use in rooms with a glare limitation (UGR<19). The luminaire has a luminance of <3000cd/m² at y ≥ 65° according to EN-12464 and complies with the current standards for VDU workplaces.
Optional accessories:
Wall-/Ceiling Mounting
Mounting Spring
Mounting frame
Material: aluminium white painted/Microprism diffuser and light guide made of PMMA (non-yellowing)

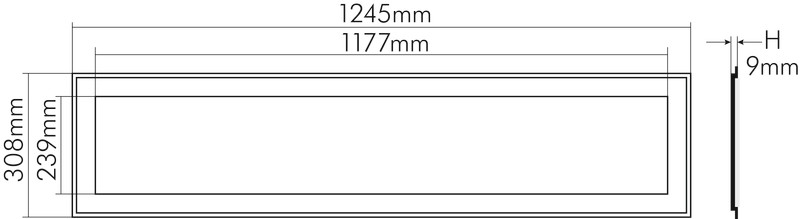

Dimensions (LxWxH): 1245x308x9 mm
Ceiling cut-out (LxW) recessed version: 1230x290 mm
Ceiling cut-out (LxW) lay-in version: 1221x284 mm
Colour rendering index Ra: 80
Colour distance (MacAdam): 3 SDCM
Life time: 50.000 h (L80 B10)
LED driver included: dimmable 1-10V
weniger lesen
Technical Data
-
Protection specifications
Covering of the luminaire with thermally insulating material possible no CE-Conformity yes RoHS yes EMC Standard EN 55015:2013 + A1:2015; EN 61547:2009; EN 61000-3-2:2014; EN 61000-3-3:2013 LVD Standard EN 60598-1; EN 60598-2-1; EN 62493; EN 62471; EN 61347-1; EN 61347-2-13 Protection class II Safety class of luminaire III Safety class of LED driver II Degree of protection IP40 Impact strength IK05 Safety transformer yes Photobiological safety according to EN 62471 RG0 ENEC-Test mark ENEC 05 Thermal insulation mark yes Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes Installation note [flammable materials] recessed luminaire suitable for direct mounting on normal flammable surfaces Installation in insulated ceilings, fire protection 'F with roof' no - Temperature specifications
Ambient temperature [Ta] [°C] 0 - 40 - Material and colour
Material housing aluminium Colour housing white Surface of the housing painted Material diffuser PMMA Surface texture of the diffuser micro prismatic Material lightguide PMMA - Other specifications
Type of luminaire prism luminaire Mounting method recessed-mounted Suitable for general lighting yes Suitable for recessed wall installation no Suitable for wall mounting no Suitable for suspended mounting no Suitable for built-in mounting no Suitable for ceiling mounting yes Suitable for surface mounting no Suitable for light line configuration no Operation by Bluetooth no Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Kind of disposal at the end of the life time specific collection points, please consider the local regulations Reflector without Independant installation yes Adjustable version no - Product contents
With light source yes Including LED driver yes Part number of the delivered LED driver 8970441050 Description of the delivered LED driver EL-44-1050 dim 1-10V - Technical lighting specifications
Light cone Open beam/diffuse Colour temperature [K] 3000 Colour of light warm white LED efficiency [lm/W] 95 LED efficiency [system] [lm/W] 82 Total luminous flux [lm] 3600 Beam angle [°] 90 Colour consistency [MacAdam] [SDCM] 3 Colour rendering index Ra 80 Colour rendering index R9 7 Unified Glare Rating [UGR] 19 Anti-glare limiting [UGR] lengthwise 18,5 Anti-glare limiting [UGR] crosswise 18,7 Fit for monitor workplace acc. EN 12464-1 yes Luminance y ≥ 65° ≤3000 cd/m2 Peak luminous intensity [cd] 1827 Light distributor Diffuser L80B10 - life time at 25 °C [h] 50000 L70B50 - life time at 25°C [h] 75000 L90B10 - life time at 25 °C [h] 25000 Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 80 Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) [%] 70 Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 10 Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) [%] 50 Colour controllable (RGB) no Constant light output (CLO) no Light sharing symmetric Light outlet direct Lamp type SMD-LED Suitable for number of lamps 1 - Dimensions and weight
Length [mm] 1245 Width [mm] 308 Height [mm] 9 Weight [g] 3110 Length [LED driver] [mm] 145 Wide [LED driver] [mm] 43 Height [LED driver] [mm] 29 Weight [LED driver] [g] 300 Light outlet opening [lenght] [mm] 1177 Light outlet opening [width] [mm] 239 Installation length (lay-in luminaire) [mm] 1221 Installation width (lay-in luminaire) [mm] 284 Ceiling cut-out [ length] [mm] 1230 Ceiling cut-out [width] [mm] 290 - Electrical specifications
Lamp power [W] 38 Max. system power [W] 44 Nominal current of luminaire [mA] 1050 Rated voltage of luminaire [DC] [V] 37 Rated voltage of the LED driver [AC] [V] 220 - 240 Power factor [at full load] 0,9 Quantity on MCB B16 (max.) 31 Quantity on MCB C16 (max.) 52 Sink current [dimming] [mA] 0,2 Lamp holder without Type of wiring Suitable for through wiring Wire cross section free, stripped wire ends Type of connection [luminaire] jack plug (male) Length of cable [luminaire] [cm] 30 Cable cross section [luminaire] [mm²] 0,5 Length of cable primary [LED driver] [cm] 25 Cable cross section primary [LED driver] [mm²] 0,75 Connection type secondary [LED driver] jack plug (female) Length of cable secondary [LED driver] [cm] 40 Cable cross section secondary [LED driver] [mm²] 0,5 Connection dimmer interface free, stripped wire ends Cable length dimmer interface [cm] 17 Cable cross section dimmer interface [mm²] 0,25 Exchangeable LED driver yes Dimmable yes Type of dimming 1-10V Dimming range [%] 10 - 100 Flicker free yes Rated current of the LED driver (at 230V AC) max. [A] 0,21 LED driver LED operating device current-controlled
