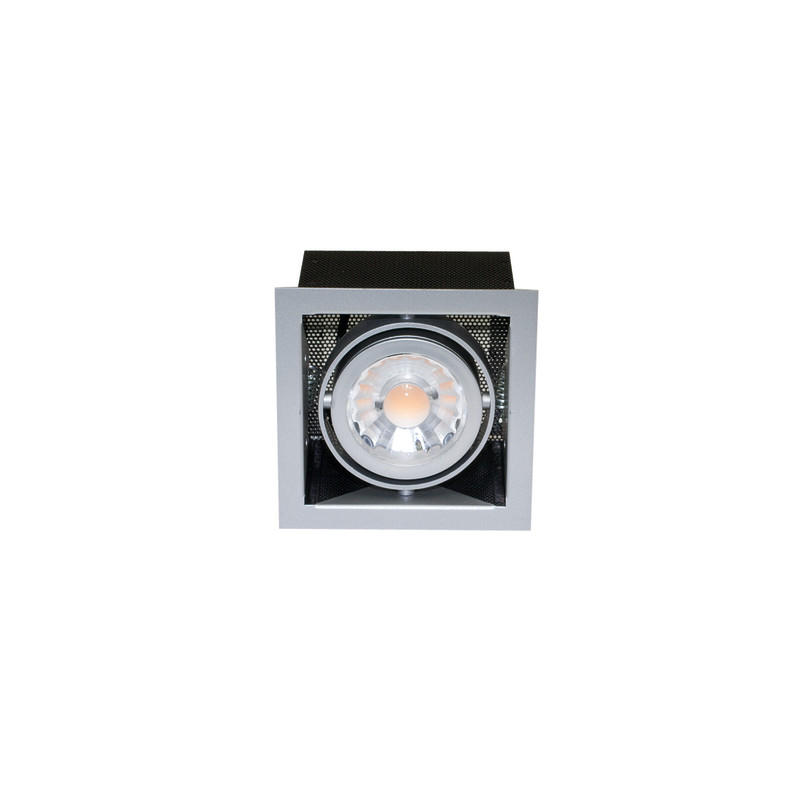

LED Mini Kardan E1

The LED Kardan is a square recessed downlight with a gimbal-mounted LED module which can be swiveled at 45° to all sides: ideal for general and spot lighting, especially to put objects in the domestic and commercial sector in a favourable light as well as shop lighting.

High luminous flux, excellent colour rendering, long lifetime and low energy consumption guarantee highest efficiency.

LED driver: not included

Dimming: Led driver dependent

Ceiling mounting: with mounting springs

Material: die-cast aluminium

Dimensions (LxWxH): 85x85x65 mm

Colour rendering index Ra: 90

Colour distance (MacAdam): 3 SDCM

Life time: 50.000 h (L80 B10)

Recommendation LED driver:

Part no. 8999038350 EL-8R-350 non dim, non dimmable

Part no. 8999028350 EL-8R-350 D dim C, dimmable with trailing edge

Part no. 8980260350 EL-25 Uni 350-1050 dim Dali

Part no. 8980420350 EL-40 Uni 350-1050 dim Dali
