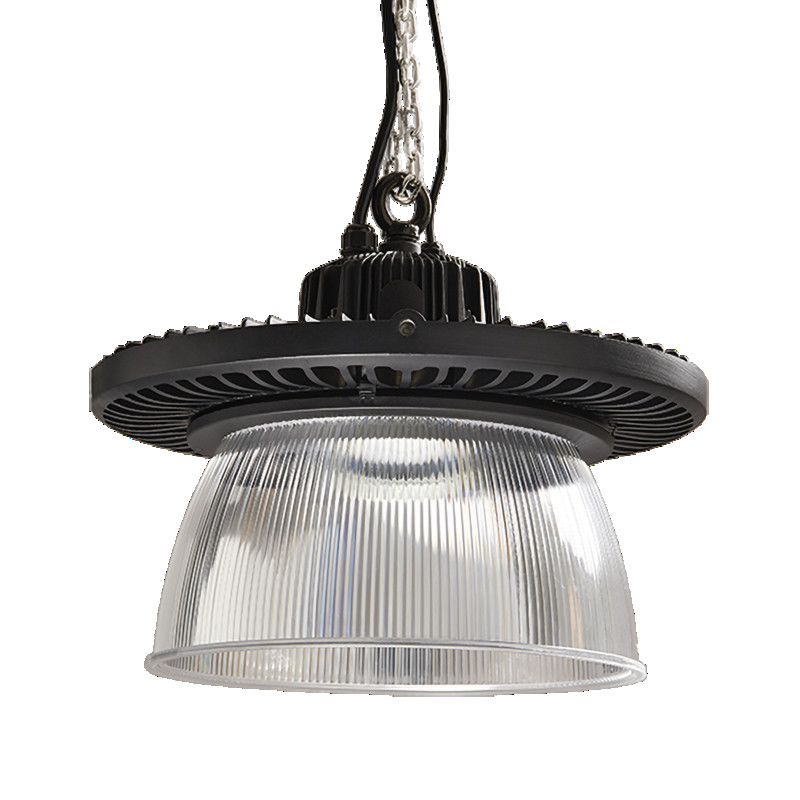

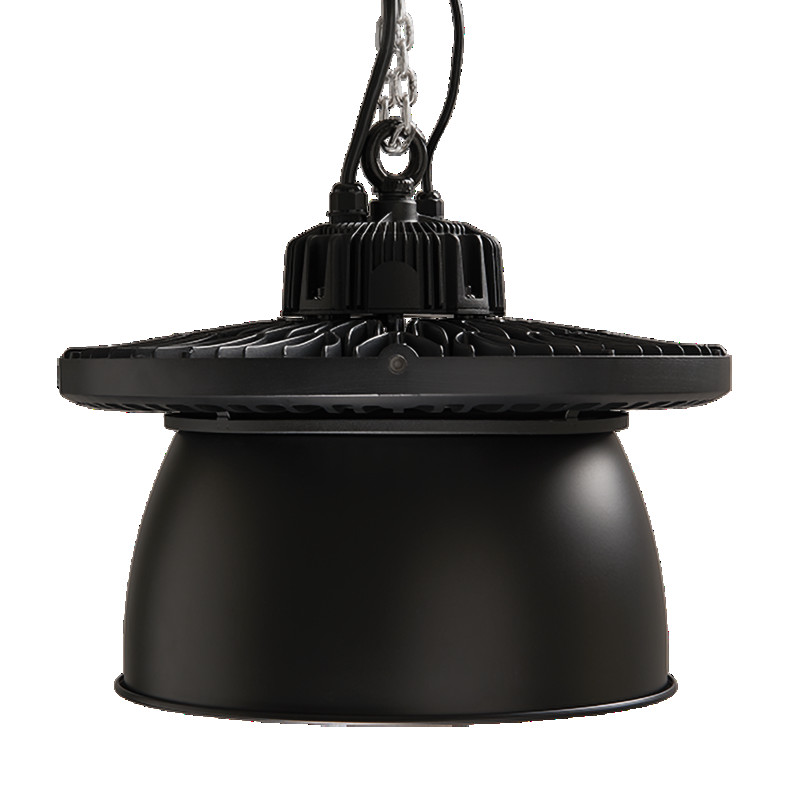

LED High Bay 115 100W 4000K 120° dim 1-10V
The main requirements to industrial and hall lighting are long lifetime, functionality and robustness.
The LED High Bay combines these requirements with perfect brightness and high luminous flux. All these make it possible to create first-class light solutions for your projects.
The LED High Bay with high protection class IP65 an impact strength of IK10 is ideally suitable for rough operation conditions, too.The spotlight is also resistant to sulphur and ammonia.
Applications: high rooms, halls, warehouses, manufacturing halls, trade and exhibition halls
Colour rendering index Ra 80
Colour distance (MacAdam): 4 SDCM
Life time: 50.000 h (L80 B10)
LED driver: built-in
Dimming: 1-10V, PWM (10V), terminal resistance
Mounting: 1-point suspension by link chain at centrally arranged ring eyelet
Please note: link chain for suspension is not included
Material: aluminium powder coated
Protection cover: tempered clear glass
Dimensions (ØxH): 388x172 mm
weniger lesen
Technical Data
-
Temperature specifications
Ambient temperature [Ta [°C] -20 - 45 - Product contents
With light source yes Including LED driver yes - Other specifications
Operation by Bluetooth no BEG funding yes Type of luminaire industrial light Mounting method pendulum Suitable for suspended mounting yes Kind of disposal at the end of the life time by the manufacturer Reflector without - Dimensions and weight
Length [mm] 388 Width [mm] 388 Diameter [mm] 388 Height [mm] 172 Weight [g] 7000 Light portal opening [diamter] [mm] 194 - Material and colour
Material housing aluminium Colour housing black Surface of the housing powder coated Material diffuser glass Diffuser surface transparent Material of reflector without reflector - Technical lighting specifications
Light cone Extreme wide beam >80° Suitable for number of light sources 1 Colour temperature [K] 4000 Colour of light neutral white LED efficiency [lm/W] 135 Total luminous flux [lm] 12400 Beam angle [°] 120 Colour consistency (MacAdam) [SDCM] 4 Colour rendering index Ra 80 Colour rendering index R9 4 Peak luminous intensity [cd] 4568 Light distributor without L80B10 - life time at 25 °C [h] 50000 L70B50 - life time at 25°C [h] 75000 L90B10 - life time at 25 °C [h] 25000 Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 80 Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 10 Flicker Metric [Pst LM] 0,005 Stroboscopic effect metric [SVM] 0,017 Total lumen setting adjustable no Colour temperature adjustable no Constant light output (CLO) no Light source replaceable no Light sharing symmetric Light outlet direct Lamp type SMD-LED - Protection specifications
Safety transformer yes chlorine resistant yes CE-Conformity yes RoHS yes EMC Standard EN 55015:2013 + A1:2015; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 61547:2009 LVD Standard EN 60598-1:2015 + A1:2018; EN 60598-2-1:1989; EN 61347-1:2015; EN 61347-2-13:2014; EN 62031:2008 + A1:2013+A2:2015; EN 62471:2008; EN 62493:2015 Protection class I Degree of protection IP65 Impact strength IK10 Ball-prrof no Short-circuit protected yes Protection against overheating yes Temperature protection shutdown at [°C] 110 Photobiological safety according to EN 62471 RG0 Filament test according to IEC 60695-2-10 [°C] 650 ENEC-Test mark ENEC 05 With protective cover yes Ammonia resistant yes Sulphur resistant yes Luminaire with limited surface temperature, sign 'D“ yes Installation, electrical engineering expertise yes Only for indoor use no Fire resistance 'D' yes - Electrical specifications
Conductor cross section dimming interface [mm²] 0,32 Lamp power [W] 100 Max. system power [W] 100 Voltage type AC/DC Input frequency [Hz] 47 - 63 Power factor [at full load] 0,95 Quantity on MCB B16 (max.) 4 Quantity on MCB C16 (max.) 8 Total harmonic distortion 0,12 Leakage current [mA] 0,75 Sink current (dimming) [mA] 0,2 Lamp holder without Type of wiring Ending Connection type primary [LED driver] free, stripped wire ends Length of cable primary [LED driver] [cm] 30 Cable conductor quantity primary 3 Connection dimmer interface free, stripped wire ends Cable length dimmer interface [cm] 30 Cable conductor dimmer interface 2 Exchangeable LED driver no Dimmable yes Type of dimming 1-10V, PWM (10V), terminal resistance Dimming range [%] 10 - 100 Flicker free yes Driver integrated yes LED driver LED operating device current-controlled Input voltage [AC] [V] 100 - 277 Input voltage [DC] [V] 127 - 431 Input current [at 230V AC] [A] 0,45 Power factor (at 230V AC) 0,95 Number of poles 3 Conductor cross section [mm²] 0,82 Efficiency/Power factor at full load [%] 91
