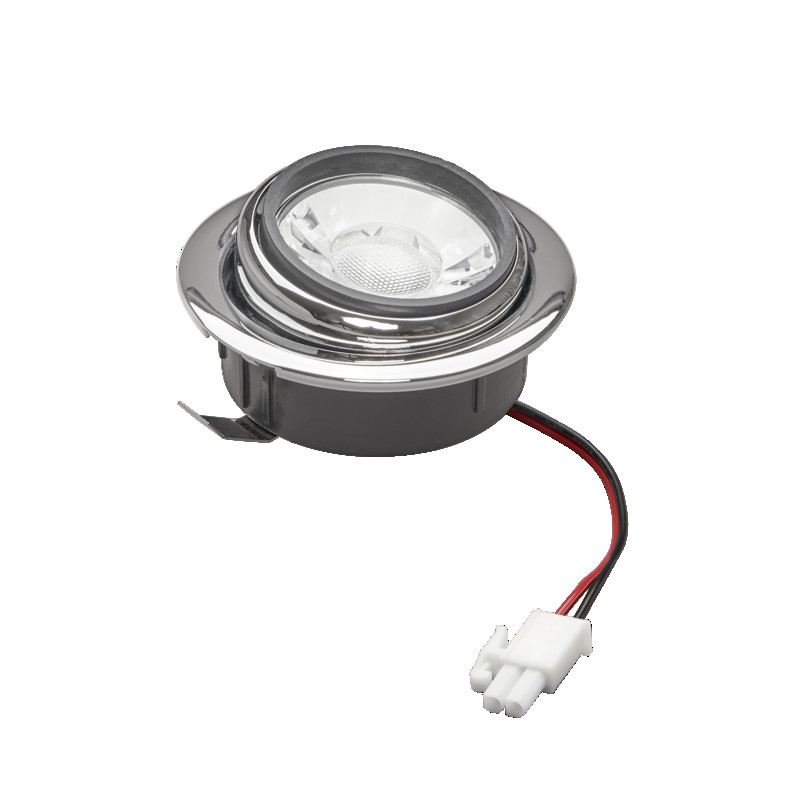

N 5022 CSP LED Linse 38° chrom 4W 350mA 3000K
LED Möbeleinbauleuchte, CSP LED, schwenkbar
SKU:
1850233212
EAN: 4044538059921
EAN: 4044538059921
Schwenkbare Möbeleinbauleuchte mit hitzebeständigem Schutzglas.
Material: Stahl/Polycarbonat/Glas klar
Oberfläche: lackiert oder galvanisiert
Linse: optische Linse
Farbwiedergabeindex Ra: 90
Farbabstand (MacAdam): 3 SDCM
Lebensdauer: 50.000 h (L80 B10)
Betriebsgerätempfehlung: EL-350mA CC Serie
weniger lesen
Technical Data
-
Temperature specifications
Ambient temperature [Ta [°C] 0 - 25 - Protection specifications
Covering of the luminaire with thermally insulating material possible no CE-Conformity yes RoHS yes Protection class III Degree of protection IP20 Impact strength IK00 Thermal insulation mark yes Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes Installation note [flammable materials] recessed luminaire suitable for direct mounting on normal flammable surfaces Installation in insulated ceilings, fire protection 'F with roof' yes Note ensure constant convection and do not cover by insulation material - Product contents
With light source yes Including LED driver no - Technical lighting specifications
Light cone Medium beam 21-40° Colour temperature [K] 3000 Colour of light warm white LED efficiency [lm/W] 95 Total luminous flux [lm] 400 Beam angle [°] 38 Colour consistency (MacAdam) [SDCM] 3 Colour rendering index Ra 90 Colour rendering index R9 60 Fit for monitor workplace acc. EN 12464-1 no Peak luminous intensity [cd] 900 Light distributor Diffuser L80B10 - life time at 25 °C [h] 50000 L70B50 - life time at 25°C [h] 50000 Colour controllable (RGB) no Light source replaceable no Light sharing symmetric Light outlet direct Lens optical lens Lamp type CSP LED Suitable for number of lamps 1 - Dimensions and weight
Length [mm] 68 Width [mm] 68 Diameter [mm] 68 Height [mm] 23 Weight [g] 54 Ceiling cut-out [diameter] [mm] 58 Built-in depth [mm] 23 - Other specifications
Adjustability Swivelling Operation by Bluetooth no Mounting method recessed-mounted Suitable for general lighting yes Suitable for recessed wall installation no Suitable for wall mounting no Adjustable [°] 14 Kind of disposal at the end of the life time specific collection points, please consider the local regulations Reflector without Suitable for lighting accessories no - Material and colour
Front glass glass clear Material steel/polycarbonate/glass clear Colour chrome Surface finishing galvanized - Electrical specifications
Type of LED driver LED driver Lamp power [W] 4 Constant current [mA] 350 Lamp holder without Exchangeable LED driver yes Dimmable yes Length of cable [cm] 10 Through-wiring possible no Electrical connection with connector system yes Type of connection [luminaire] AMP plug-system 2-pole
Available Accessories
-
-
-
-
-
-
-
AMP T-Splitter for constant current LED 0.8m
T-Splitter to feed a constant current LED consumer load and to continue the series...
-
-
-
-
