LED Panel surface-m. 170 R white 10W 840 dim C
The luminaire convinces with its high energy efficiency as well as its clear and unobtrusive design.
A special feature is the low construction that’s a reason why the luminaire is the right choice for a harmonious general lighting. It can be integrated discreetly into all rooms.
Material: aluminium white painted/diffuser made of PMMA (non-yellowing)

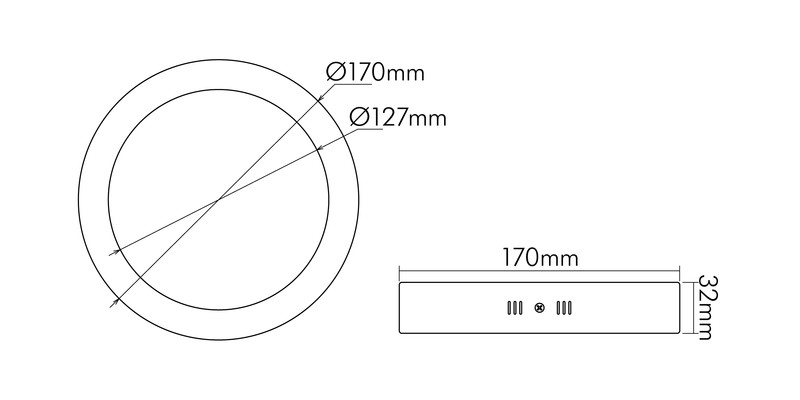

Dimensions (ØxH): 170x32 mm
Ceiling mounting: with fixing bracket
Colour rendering index Ra: 80
Colour distance (MacAdam): 3 SDCM
Life time: 50.000 h (L80 B10)
LED driver included: dimmable with trailing edge
weniger lesen
Technical Data
-
Other specifications
Mounting method surface mounted Type of luminaire panel luminaire Suitable for general lighting yes Suitable for recessed wall installation no Suitable for wall mounting no Suitable for suspended mounting no Suitable for built-in mounting no Suitable for ceiling mounting yes Suitable for surface mounting yes Suitable for light line configuration no Operation by Bluetooth no Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Kind of disposal at the end of the life time specific collection points, please consider the local regulations Reflector without Ceiling fixing with fixing brackets - Temperature specifications
Ambient temperature [Ta [°C] 0 - 25 - Protection specifications
CE-Conformity yes RoHS yes Protection class II Degree of protection IP20 Impact strength IK00 Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes Installation note [flammable materials] surface-mounted luminaire for direct mounting on normal flammable surfaces - Material and colour
Colour housing white Material aluminium painted white/acrylic diffuser opal - Product contents
With light source yes Including LED driver yes - Technical lighting specifications
Light cone Open beam/diffuse Colour temperature [K] 4000 Colour of light neutral white Total luminous flux [lm] 1000 Beam angle [°] 120 Colour consistency (MacAdam) [SDCM] 3 Colour rendering index Ra 80 Colour rendering index R9 7 Fit for monitor workplace acc. EN 12464-1 no Peak luminous intensity [cd] 370 Light distributor Diffuser L80B10 - life time at 25 °C [h] 50000 L70B50 - life time at 25°C [h] 50000 Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 80 Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 10 Colour controllable (RGB) no Total lumen setting adjustable no Colour temperature adjustable no Constant light output (CLO) no Light sharing symmetric Light outlet direct Lamp type SMD-LED Suitable for number of lamps 1 - Dimensions and weight
Diameter [mm] 170 Height [mm] 32 Weight [g] 420 Light portal opening [mm] 130 - Electrical specifications
Lamp power [W] 10 Max. system power [W] 10 Rated voltage of the LED driver [AC [V] 220 - 240 Input frequency [Hz] 50/60 Hz Lamp holder without Type of wiring Through wiring included Wire cross section Clamp 2x0.5-2.5 mm², 1x0.5-0.75 mm² Exchangeable LED driver yes Dimmable yes Type of dimming trailing edge LED driver LED operating device current-controlled Rated current max. [mA] 55 Power factor > 0,9
