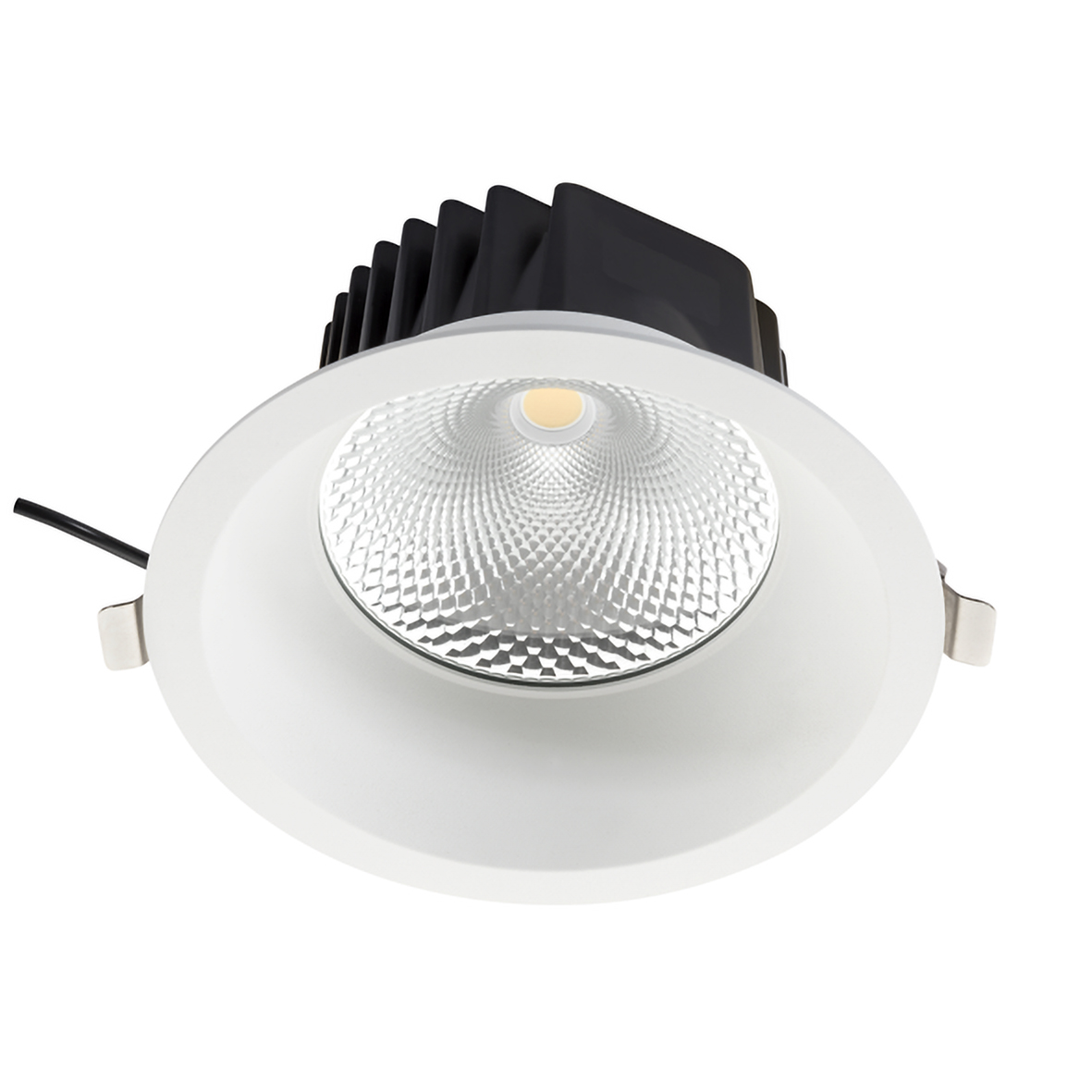

LED Downlight 125 UGR≤19

LED Downlight with COB LED - optimal general lighting and brilliance
Article Choice

The downlight offers the right lighting for many different applications. The conversion to LED can now begin.

The downlight is provided with a glare limitation UGR≤19 and a luminance ≤3000cd at y ≥ 65° according to EN-12464 is suitable for the illumination of VDU workstations.

Material: die-cast aluminium aluminium powder-coated/Glass clear

Dimensions (ØxH): 143x87 mm

Ceiling mounting: with mounting springs

Colour rendering index Ra: 90

Colour distance (MacAdam): 3 SDCM

Life time: 35.000 h (L80 B50)

LED driver: not included

Dimming: Led driver dependent

Recommendation LED driver:

Part no. 8990153510 EL-15-350 non dim, non dimmable

Part no. 8990153500 EL-15-350 D dim C, dimmable with trailing edge

Part no. 8970203500 EL-20-Uni 350-700 dim Dali/push/1-10V

Part no. 8980410010 EL-40 Uni 350-1050 dim 1-10

Part no. 8980260350 EL-25 Uni 350-1050 dim Dali

Betriebsgerätempfehlung:

Art.-Nr. 8980410010 EL-40 Uni 350-1050 dimmbar 1-10V

Art.-Nr. 8980260350 EL-25 Uni 350-1050 dimmbar Dali

Deckenbefestigung: mit Einbaufeder

Material: Aluminiumdruckguss weiß pulverbeschichtet/Glas klar

Abmessungen (ØxH): 143x87 mm

Farbwiedergabeindex Ra: 90; Farbabstand (MacAdam): 3 SDCM

Lebensdauer: 50.000 h (L80 B50)

weniger lesen
mehr lesen

Downloads

ProduktdatenblattProduktdatenblatt
Lichttechnische Daten (EULUMDAT)Lichttechnische Daten (EULUMDAT)
Lichttechnische Daten (EULUMDAT)Lichttechnische Daten (EULUMDAT)
ProduktdatenblattProduktdatenblatt
MontageanleitungMontageanleitung
