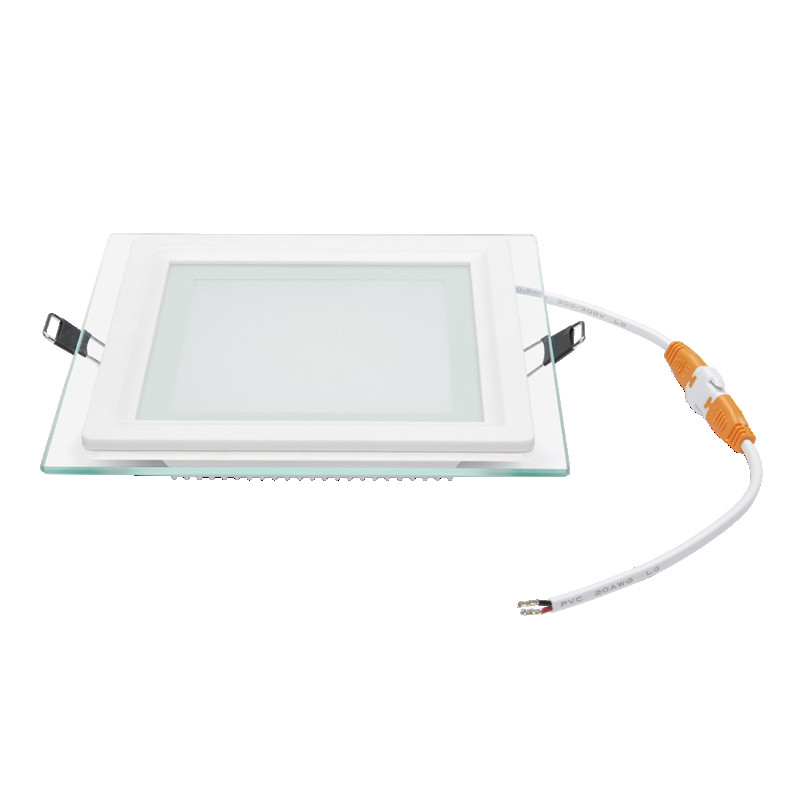

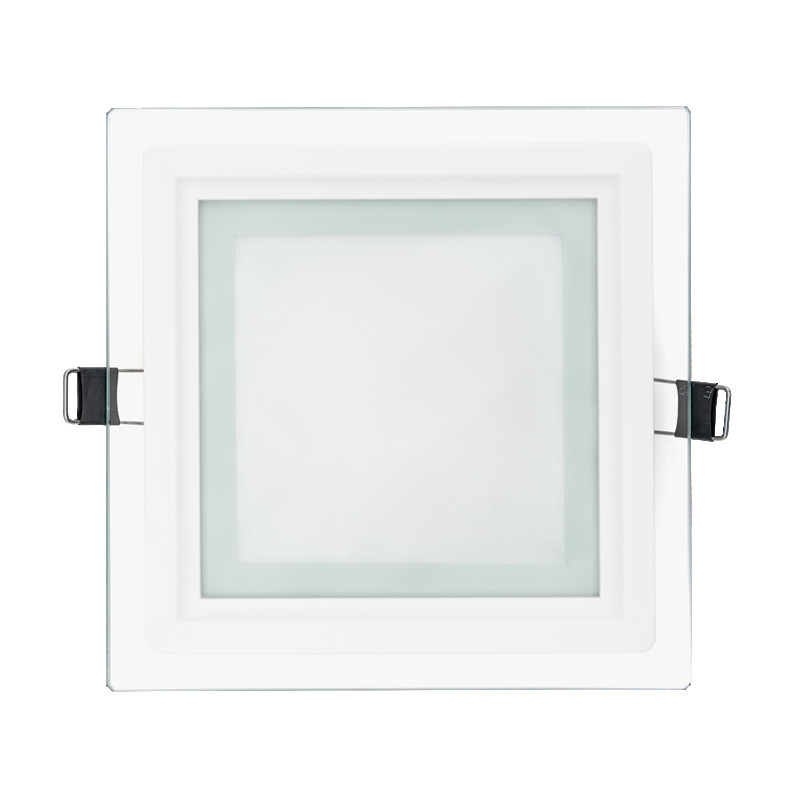

LED Glas Panel 160Q white 11W SCCT 350mA
The recessed luminaire impresses with its discreet appearance, the large variety of applications as well as the especially high-efficient LED technology.
The luminaire fits harmoniously into the ceiling by its elegant appearance. It is perfect for general lighting of classic or modern decorated rooms.

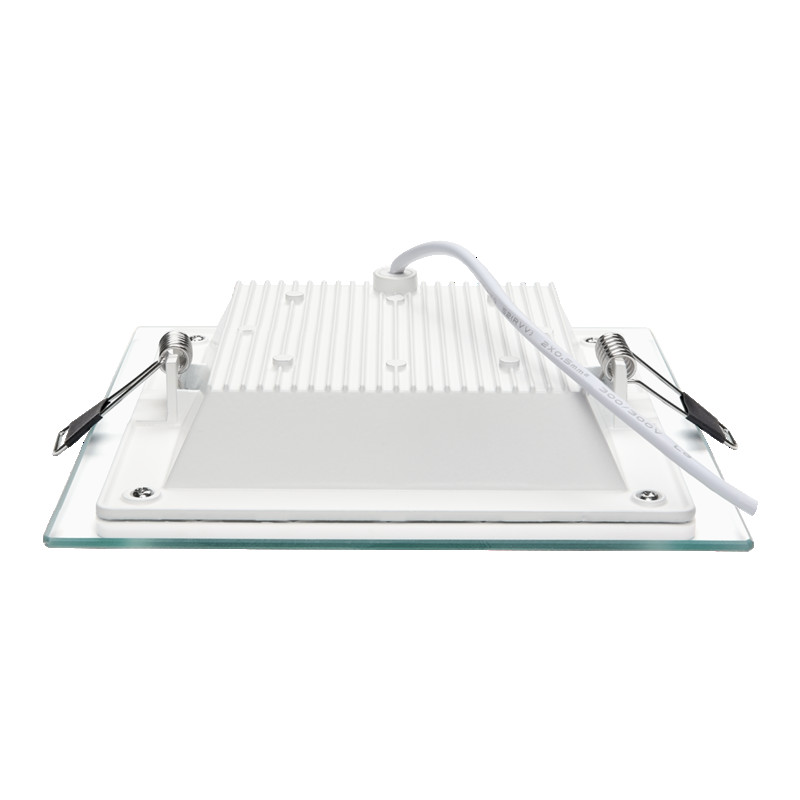

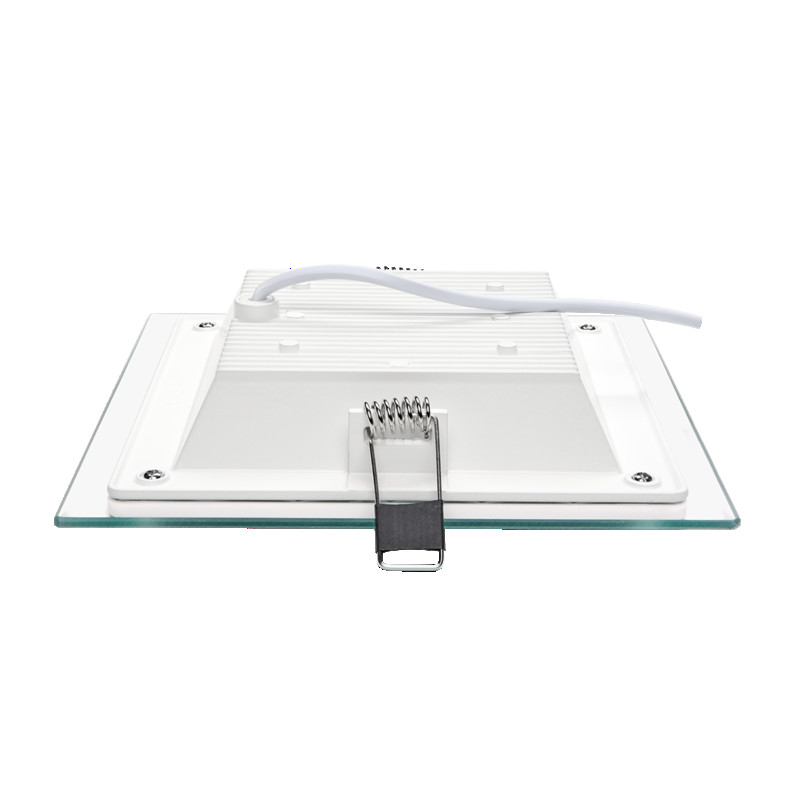

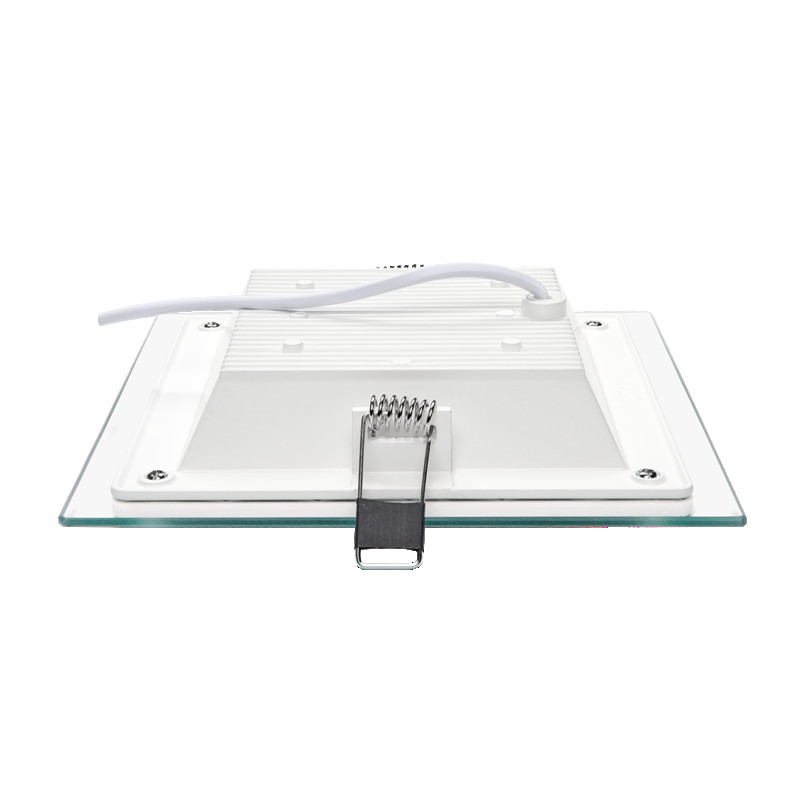

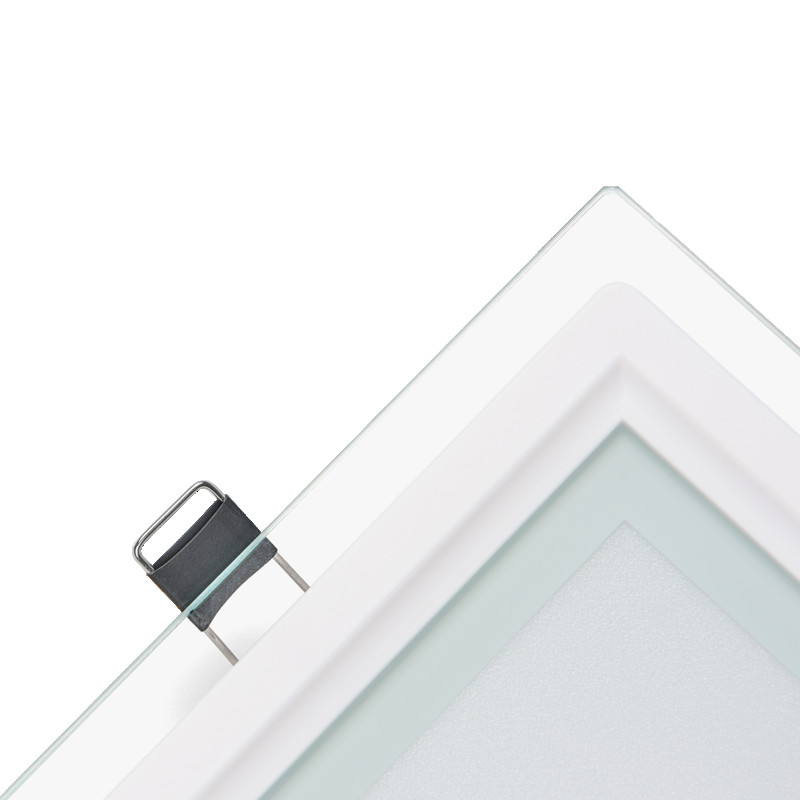

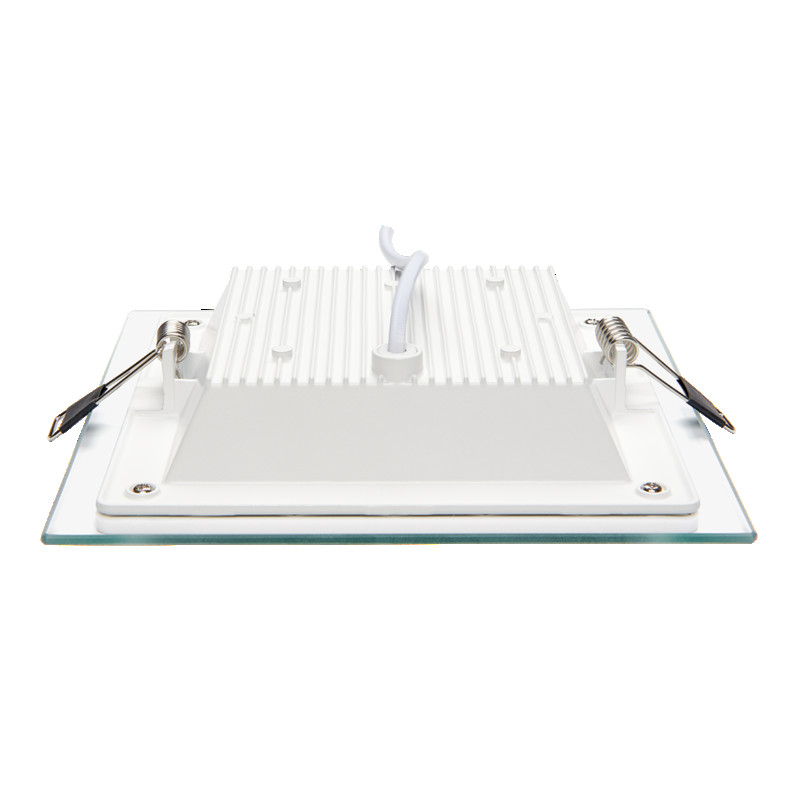

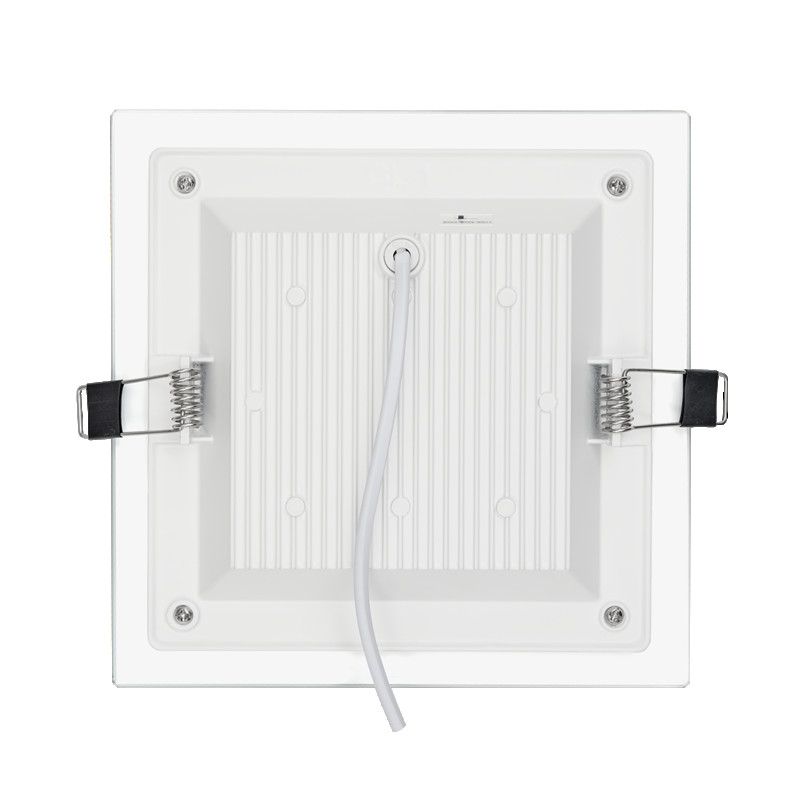

Ceiling mounting: with mounting springs
LED driver: not included
Dimming: Led driver dependent
Material: aluminium white painted/glass clear/diffuser of PMMA (non-yellowing)

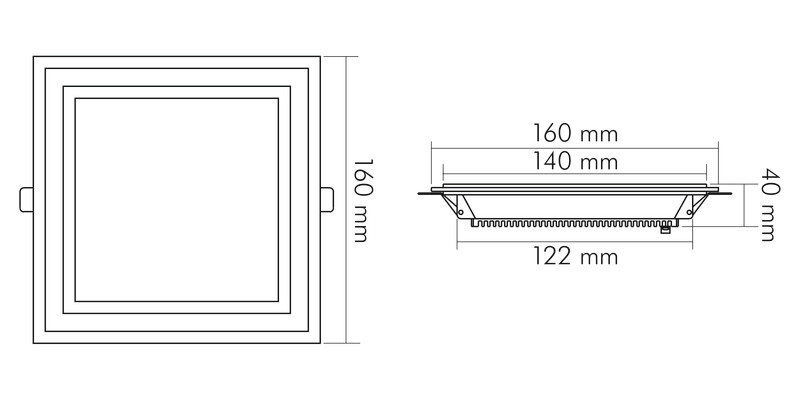

Dimensions (LxWxH): 160x160x40 mm
Light input: backlit
Colour rendering index Ra: 80
Colour distance (MacAdam): 3 SDCM
Life time: 50.000 h (L80 B10)
Recommendation LED driver:
Part no. 8990153510 EL-15-350 non dim, non dimmable
Part no. 8990153500 EL-15-350 D dim C, dimmable with trailing edge
weniger lesen
Technical Data
-
Protection specifications
Covering of the luminaire with thermally insulating material possible no CE-Conformity yes RoHS yes Protection class III Degree of protection IP20 Impact strength IK00 Thermal insulation mark yes Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes Note ensure constant convection and do not cover by insulation material - Temperature specifications
Ambient temperature [Ta [°C] 0 - 40 - Product contents
With light source yes Including LED driver no Cable suspension supplied with the product no - Dimensions and weight
Length [mm] 160 Width [mm] 160 Height [mm] 40 Weight [g] 360 Built-in width [mm] 122 Built-in lenght [mm] 122 Built-in depth [mm] 40 Light portal opening [mm] 110 - Technical lighting specifications
Colour temperature 2 [K] 4000 Colour temperature 3 [K] 5700 Light cone Open beam/diffuse Colour temperature [K] 3000 Total luminous flux at 3000 K [lm] 950 Total luminous flux at 4000 K [lm] 1130 Total luminous flux at 5700 K [lm] 1050 Useful luminous flux [Φuse] at 3000 K [lm] 950 Useful luminous flux [Φuse] at 4000 K [lm] 1130 Useful luminous flux [Φuse] at 5700 K [lm] 1050 Beam angle [°] 120 Colour consistency (MacAdam) [SDCM] 3 Colour rendering index Ra 80 Colour rendering index R9 7 Fit for monitor workplace acc. EN 12464-1 no Peak luminous intensity [cd] 300 Light distributor Diffuser L80B10 - life time at 25 °C [h] 50000 L70B50 - life time at 25°C [h] 50000 Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 80 Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 10 Colour controllable (RGB) no Constant light output (CLO) no Light source replaceable no Light input Backlit Light sharing symmetric Light outlet direct Lamp type SMD-LED Suitable for number of lamps 1 - Material and colour
Material aluminium painted white/glass clear/acrylic diffuser Colour white - Other specifications
Type of luminaire panel luminaire Suitable for general lighting yes Suitable for recessed wall installation yes Suitable for wall mounting no Suitable for suspended mounting no Suitable for light line configuration no Operation by Bluetooth no Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Kind of disposal at the end of the life time specific collection points, please consider the local regulations Reflector without Adjustable version no - Electrical specifications
Type of LED driver LED driver Lamp power [W] 11 Rated voltage of luminaire [DC] [V] 31 Constant current [mA] 350 Lamp holder other Dimmable yes Type of dimming Led driver dependent
